Hardware options installation 84
c.

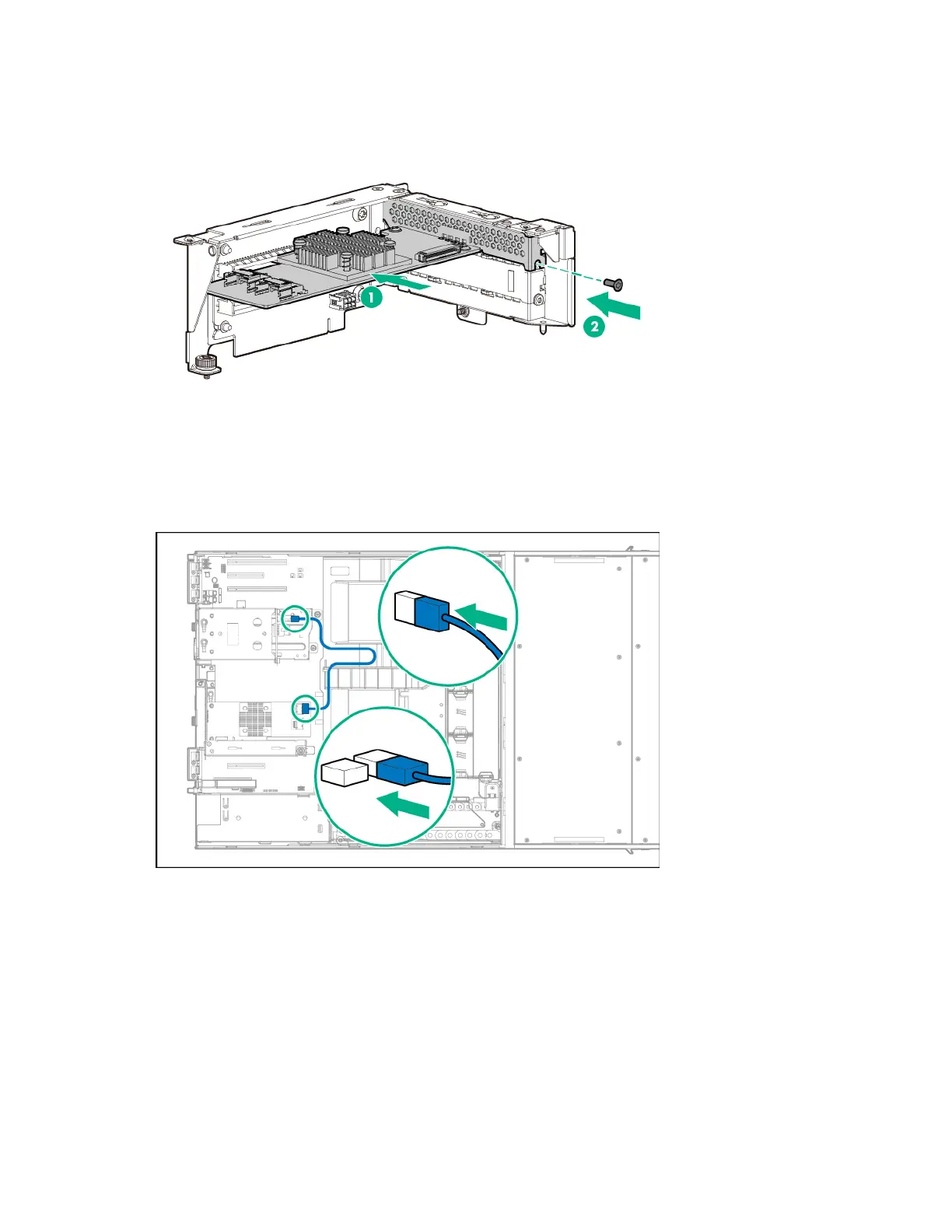

Install the HBA.
d. Install the PCI riser cage (on page 36).
e. Connect the Mini-SAS cable to the rear drive backplane and the HBA.
f. Position the Mini-SAS cable on top of the air baffle.
12. Install the access panel (on page 30).
13. Install the server into the rack (on page 45).
14. Power up the server (on page 19).
Smart Array P440 Controller Mini-SAS Y-cable option for rear
drive cage
This section describes how to connect an existing four-bay LFF or two-bay SFF hot-plug rear drive cage
to a Smart Array P440 controller using this Mini-SAS Y-cable option.
