Hardware
options instal
lation
83
—
Two-
bay SFF rear drive
cage
–
H240 HB
A Mini
-

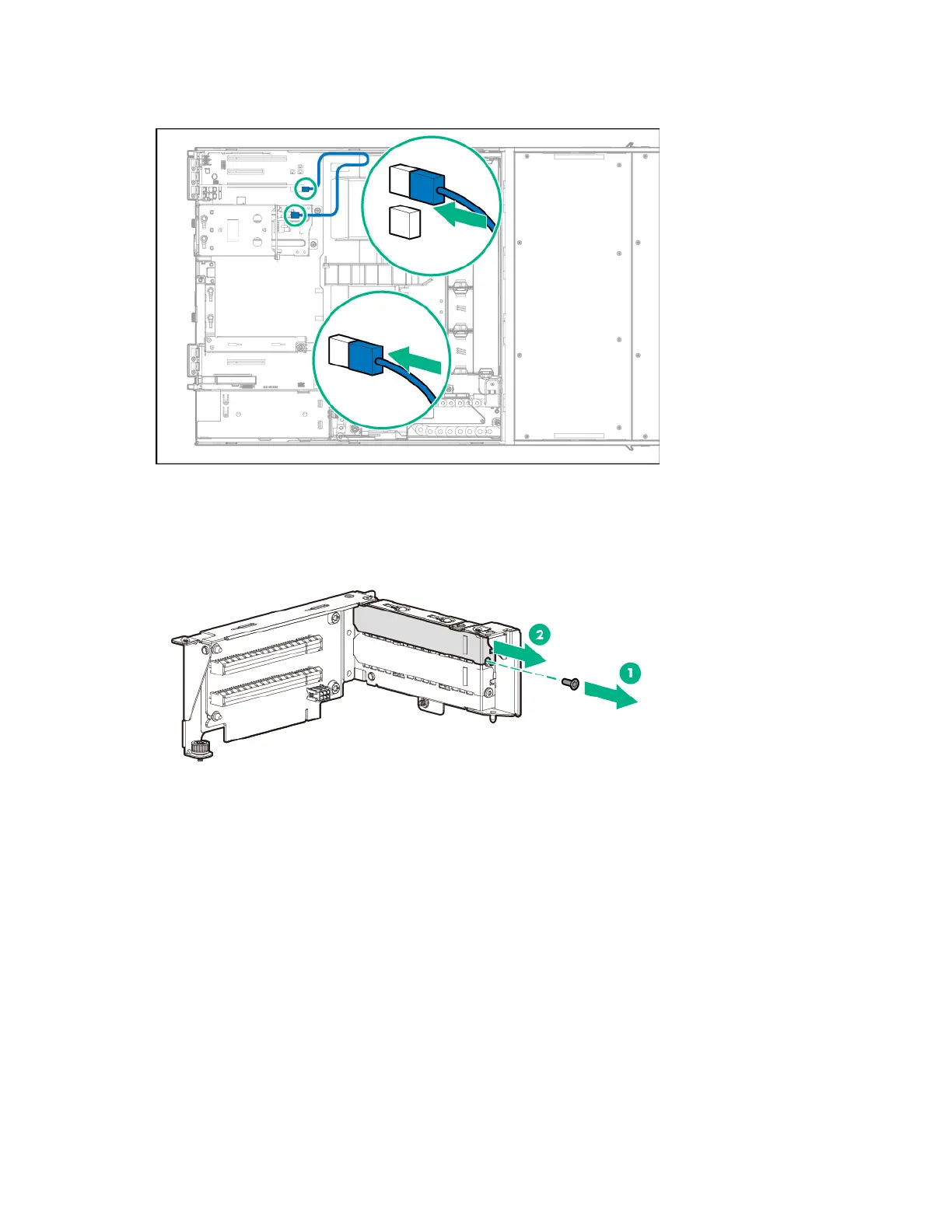

SAS cabling from t
he PCIe expa
nsion slot 5
or 6
11.
For the two
-
bay SF
F rear drive cage only
–
If you intend to install the H240 HBA in
the PCIe riser slot
3 or 4, do the following:
a.
Remove the PCI riser c
age
(on page
34
).
b.
Remove the riser slot cover.
82
84
