Operations 32

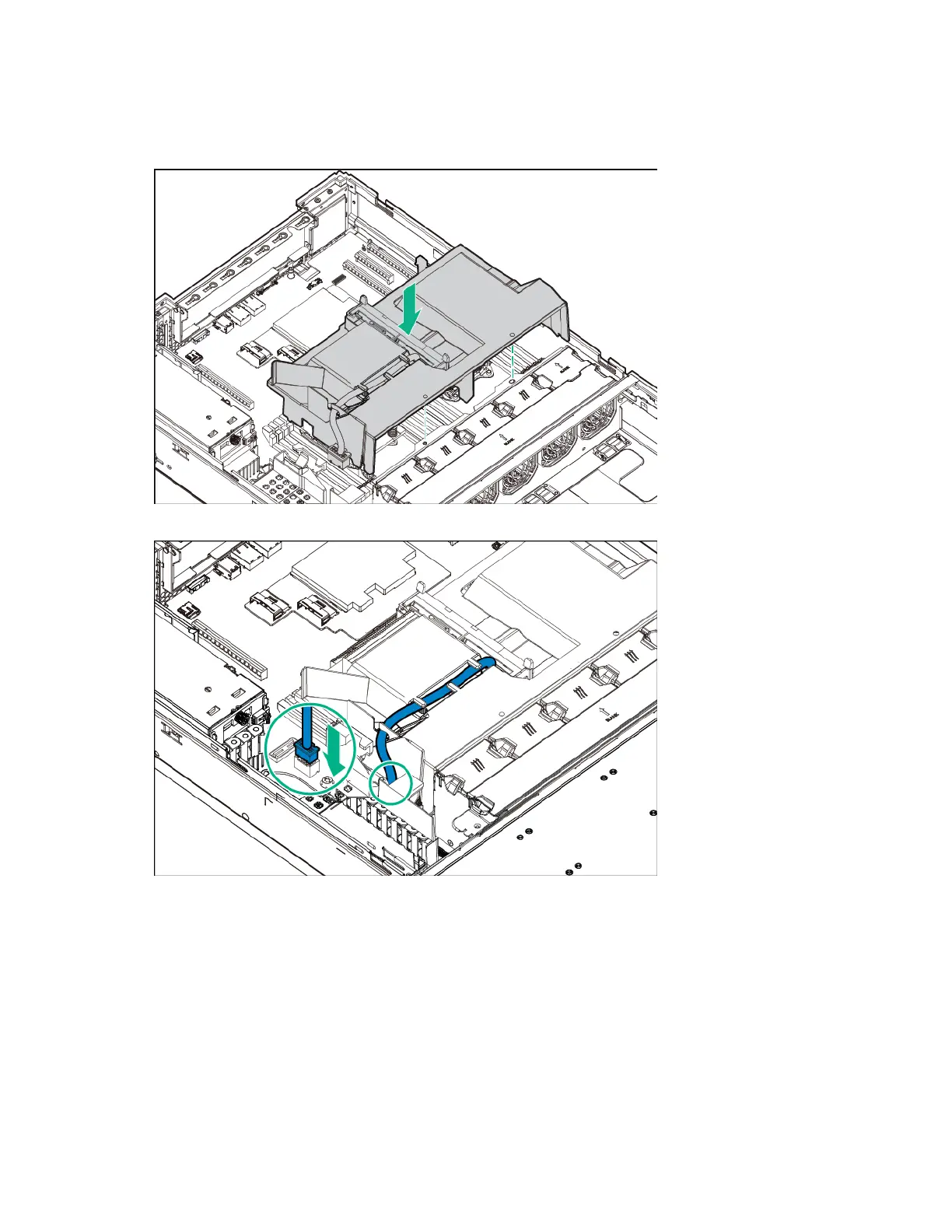

Install the air baffle
1. Insert the guide pins on the front edge of the air baffle in the holes located on the rear edge of the fan
cage.
2. If disconnected, connect the Smart Storage Battery cable.
3. Install the access panel (on page 30).
4. Install the server into the rack (on page 45).
5. Power up the server (on page 19).
Open the cable management holder
1. Power down the server (on page 19).
2. Remove the server from the rack (on page 28).
3. Remove the access panel (on page 29).
4. Remove the air baffle (on page 30).
