Cabling 147

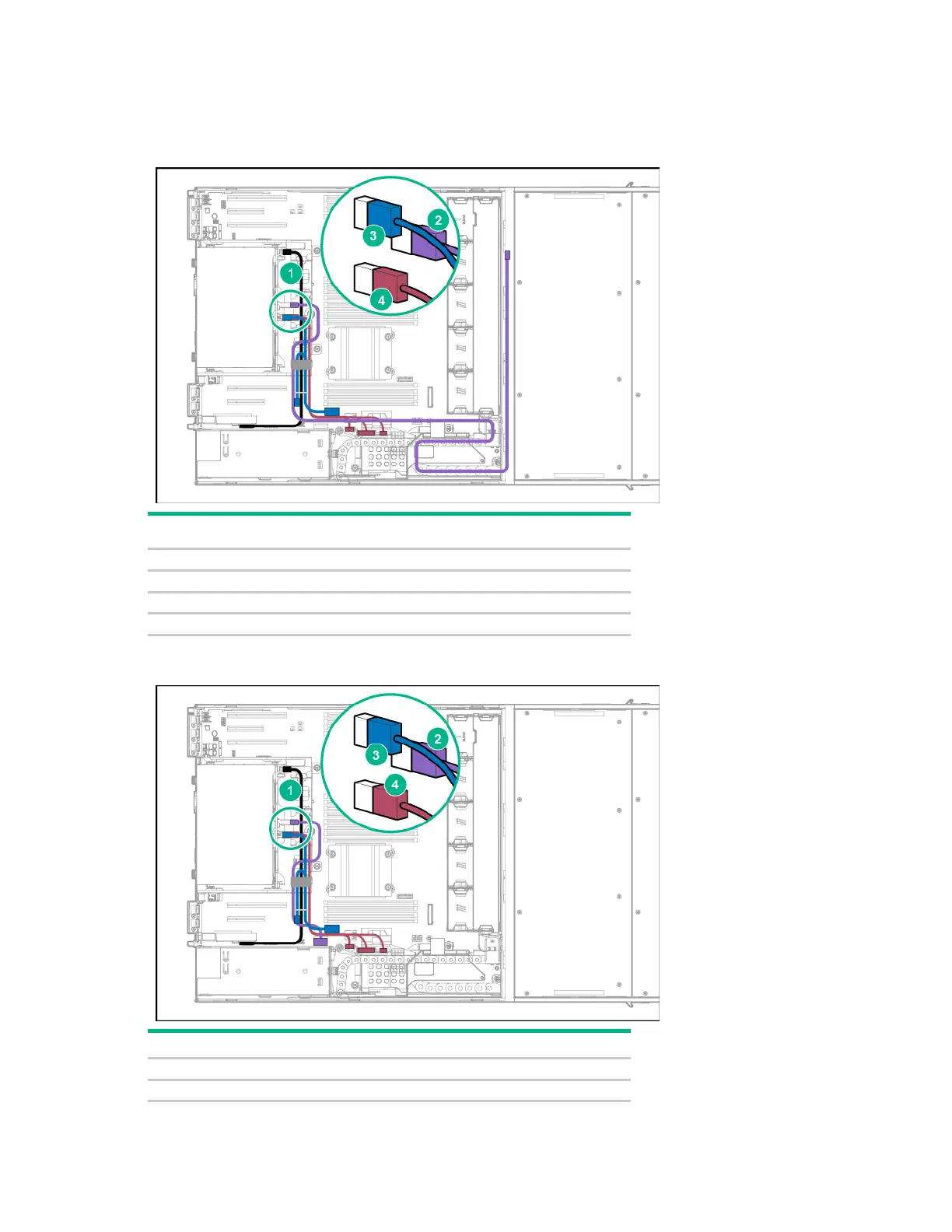

Six-bay SFF hot-plug SAS/SATA rear drive cabling
Six-bay LFF hot-plug SAS/SATA rear drive cabling to the front drive cage 2 backplane and the
onboard SATA connectors
Item Description
1
Rear SFF backplane sideband cable
2
Rear SFF drive cage preinstalled Mini-SAS x4 cable
3
Rear SFF drive cage power cable
4
Rear SFF drive cage multiconnector signal cable
Six-bay LFF hot-plug SATA rear drive cabling to the onboard Mini-SAS and SATA connectors
Item
Description
1
Rear SFF backplane sideband cable
2
Mini-SAS x4 cable
