HP Apollo 4200 Gen9 User Manual

Component identification 11
Item
Description
3
PCIe3 x16 (16, 8, 4, 1) slot 5 for low-profile, standup expansion
board
1
4
SFF hot-plug drives
5
PCIe3 x16 (16, 8, 4, 1) slot 2 for low-profile, standup expansion
board or riser cage options
2
6
PCIe3 x8 (8, 4, 1) slot 1 for low-profile, standup expansion board
2
7
FlexibleLOM slot
2
8
Hot-plug power supply bay 1
9
Hot-plug power supply bay 2
10
USB 3.0 connectors
11
NIC 1/shared iLO connector
12
NIC connector 2
13
Video connector
14
Dedicated iLO management connector (optional)
1
The PCIe expansion slots 5-7 are associated with processor 2.
2
The PCIe expansion slots 1-4 and the FlexibleLOM slot are associated with processor 1.

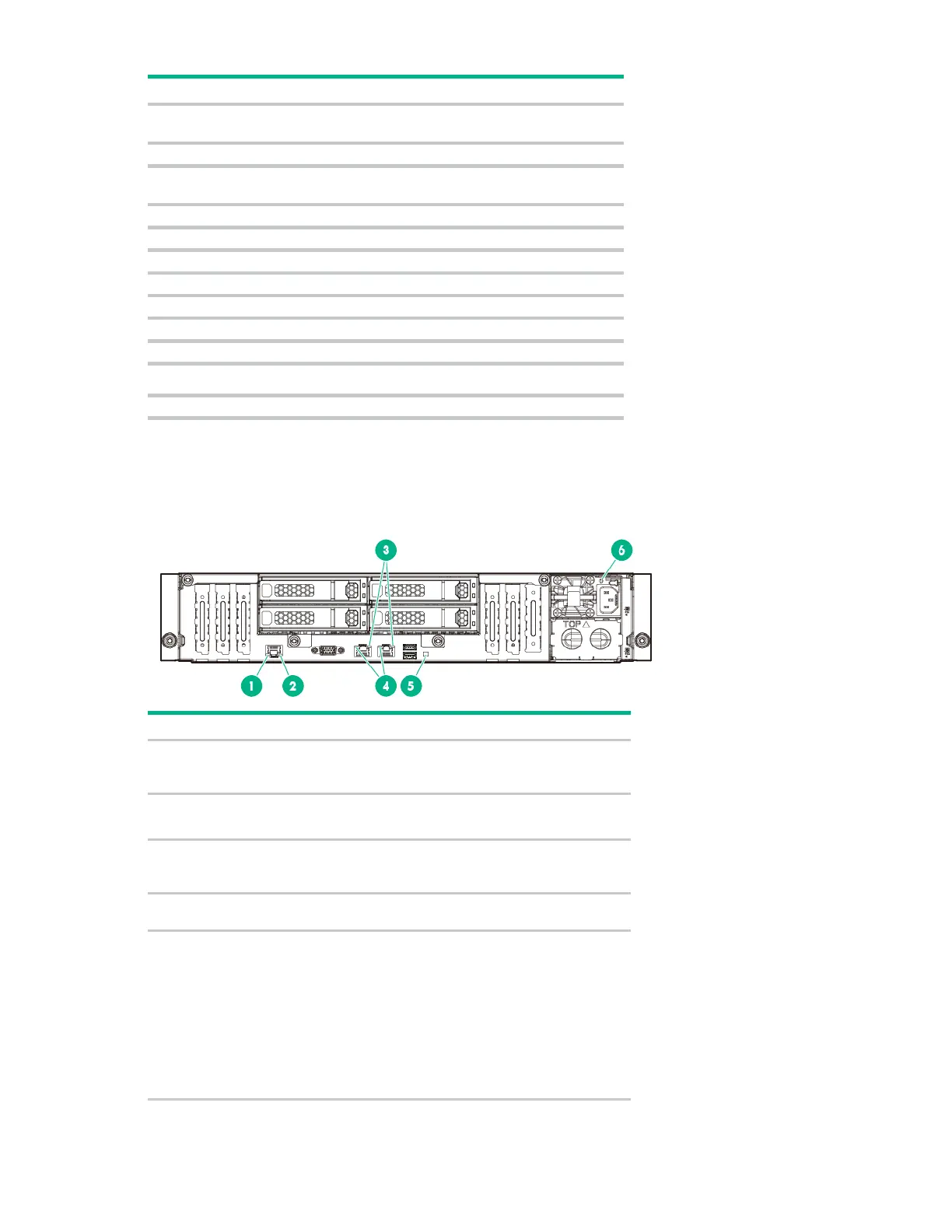

Rear panel LEDs
Item
Description
Status
1
Dedicated iLO
activity LED
Solid green = Link to network
Flashing green = Network active
Off = No network activity
2
Dedicated iLO link
LED
Green = Network link
Off = No network link
3
NIC activity LED
Solid green = Link to network
Flashing green = Network active
Off = No network activity
4
NIC link LED
Green = Network link
Off = No network link
5
UID LED
Solid blue = Activated
Flashing blue:
•
1 flash per second = Remote management
or firmware upgrade in progress
•
4 flashes per second = iLO manual reboot
sequence initiated
•
8 flashes per second = iLO manual reboot
sequence in progress
Off = Deactivated
