Cabling 144

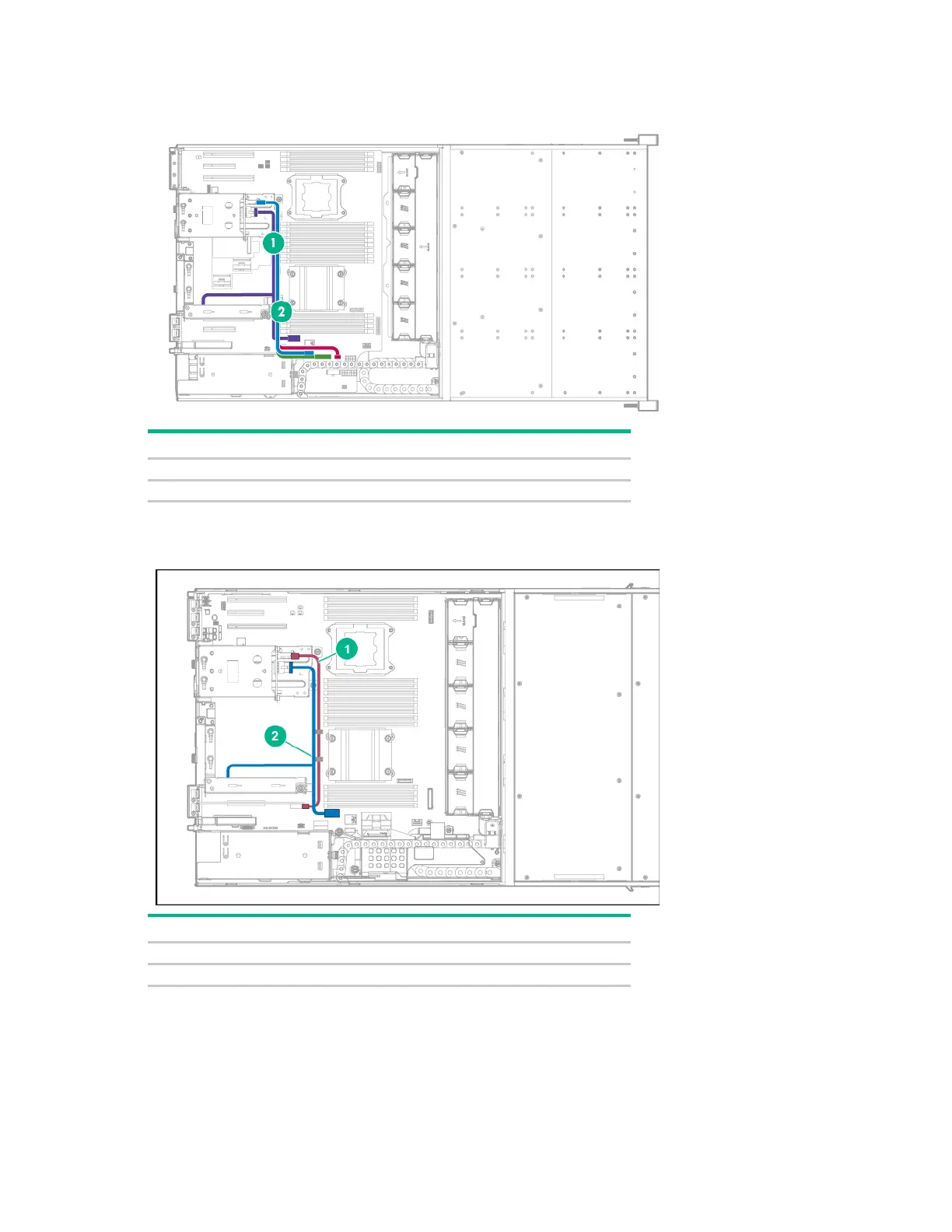

For clarity of the multiconnector signal cable connections, the cable management holder image is
removed from the illustration below.
Item Description
Rear SFF drive cage and two-slot PCI riser board power Y-cable
Rear SFF drive cage multiconnector signal cable
• Two-bay SFF hot-plug SAS/SATA rear drive cabling to the H240 HBA installed in the PCIe
expansion slot 1
Item Description
Rear SFF drive cage Mini-SAS cable
Rear SFF drive cage and two-slot PCI riser board power Y-cable
