HP Apollo 4200 Gen9 - Page 149

Cabling 149
Item Description
1
Rear SFF backplane sideband cable
2
Mini-SAS x4 cable
3
Rear SFF drive cage power cable
4
Mini-SAS x4 cable

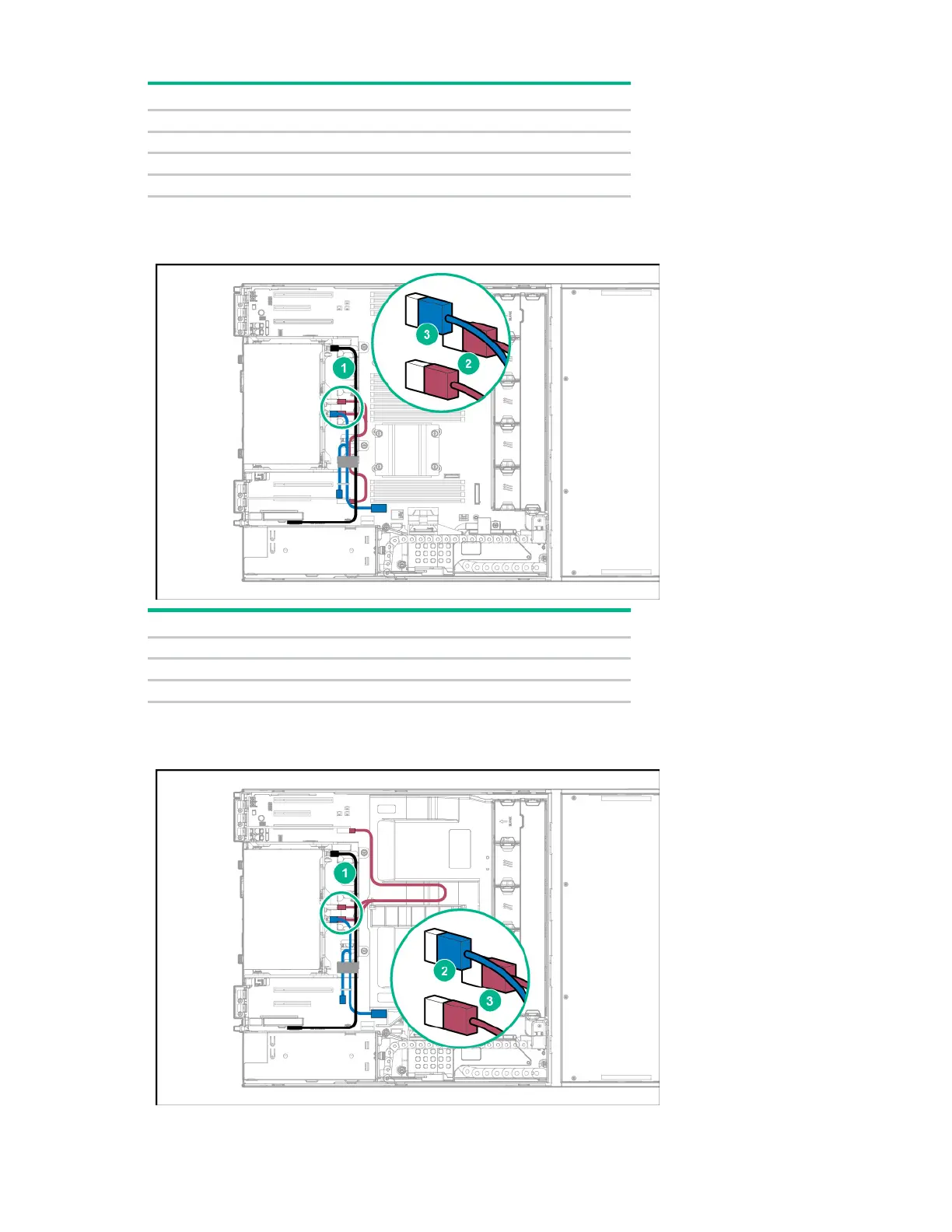

• Six-bay LFF hot-plug SAS/SATA rear drive cabling to the P440 Smart Array Controller installed in
the PCIe expansion slot 1 or 2
Item
Description
1
Rear SFF backplane sideband cable
2
Mini-SAS Y-cable
3
Rear SFF drive cage power cable
• Six-bay LFF hot-plug SAS/SATA rear drive cabling to the P440 Smart Array Controller installed in
the PCIe expansion slot 5, 6, or 7
