7. To remove the battery from the top of the airflow guide, do the following.
a. Push the battery retaining clip away from the battery (1) as shown in Figure 6-39.
b. Slide the battery to disengage the battery posts from the slots on the airflow guide (2).
c. Lift the battery off of the airflow guide.

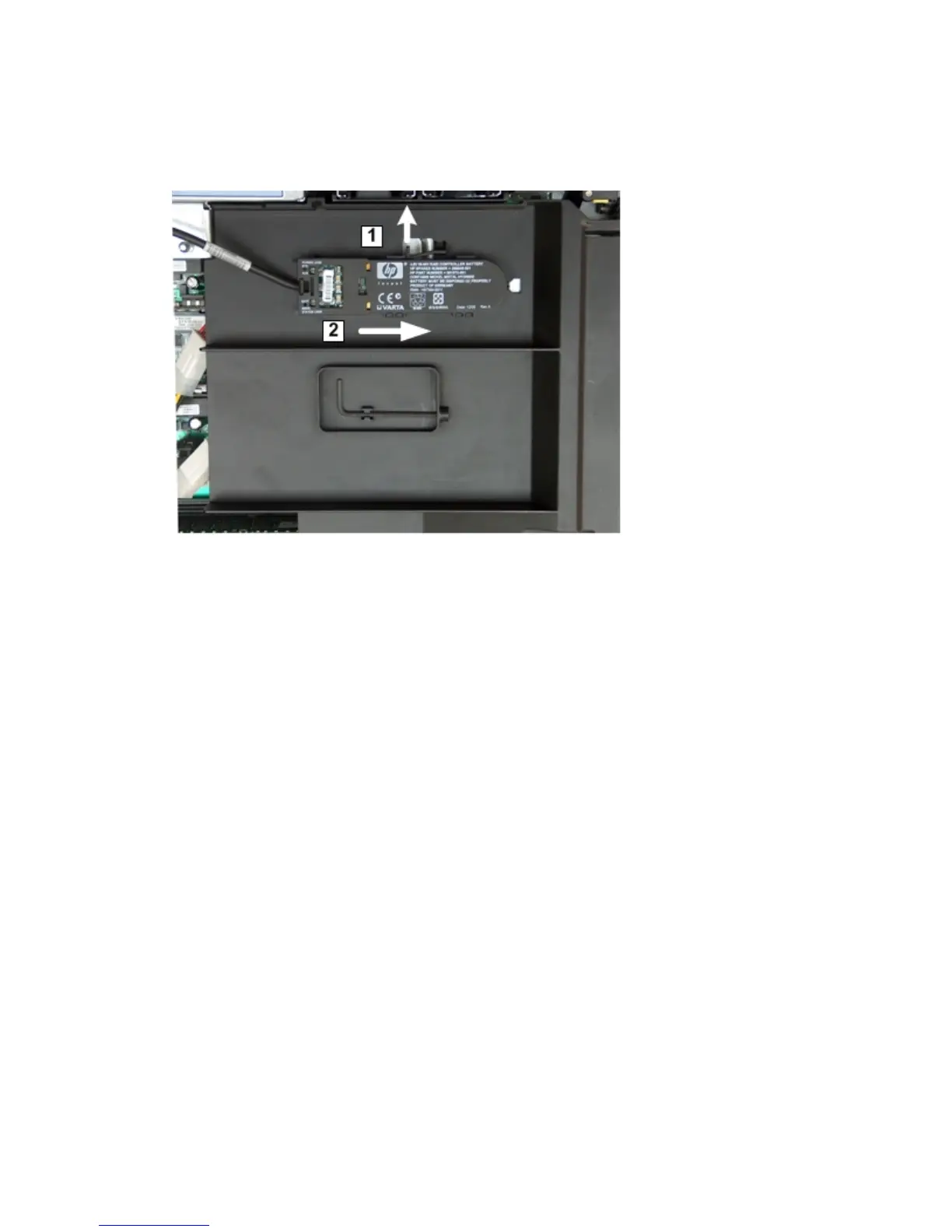

Figure 6-39 Removing the Battery from the Airflow Guide
Removing the PCIe Expansion Board
To remove the PCIe expansion board, follow these steps:
1. Power off the server and disconnect the power cables. See “Powering On and Powering Off
the Server” (page 78).
2. If rack mounted, slide the server completely out from the rack. See “Extending the Server
from the Rack” (page 142).
3. Remove the top cover. See “Removing the Top Cover” (page 143).
4. Pinch the board rail clips to the sides (1). See Figure 6-40 “ Removing the PCIe Expansion
Board”.
190 Removing and Replacing Server Components
