To remove the top cover, follow these steps.
1. Unlock the cover release lever (if necessary) by turning the cam approximately 90 degrees
counterclockwise with the Allen wrench provided on the rear panel of the server (1).
2. Pull up on the cover release lever to disengage the top cover from the chassis (2).
3. Slide the cover toward the rear of the server until the tabs release from the slots in the chassis
(3).
4. Lift the cover off the chassis (4).

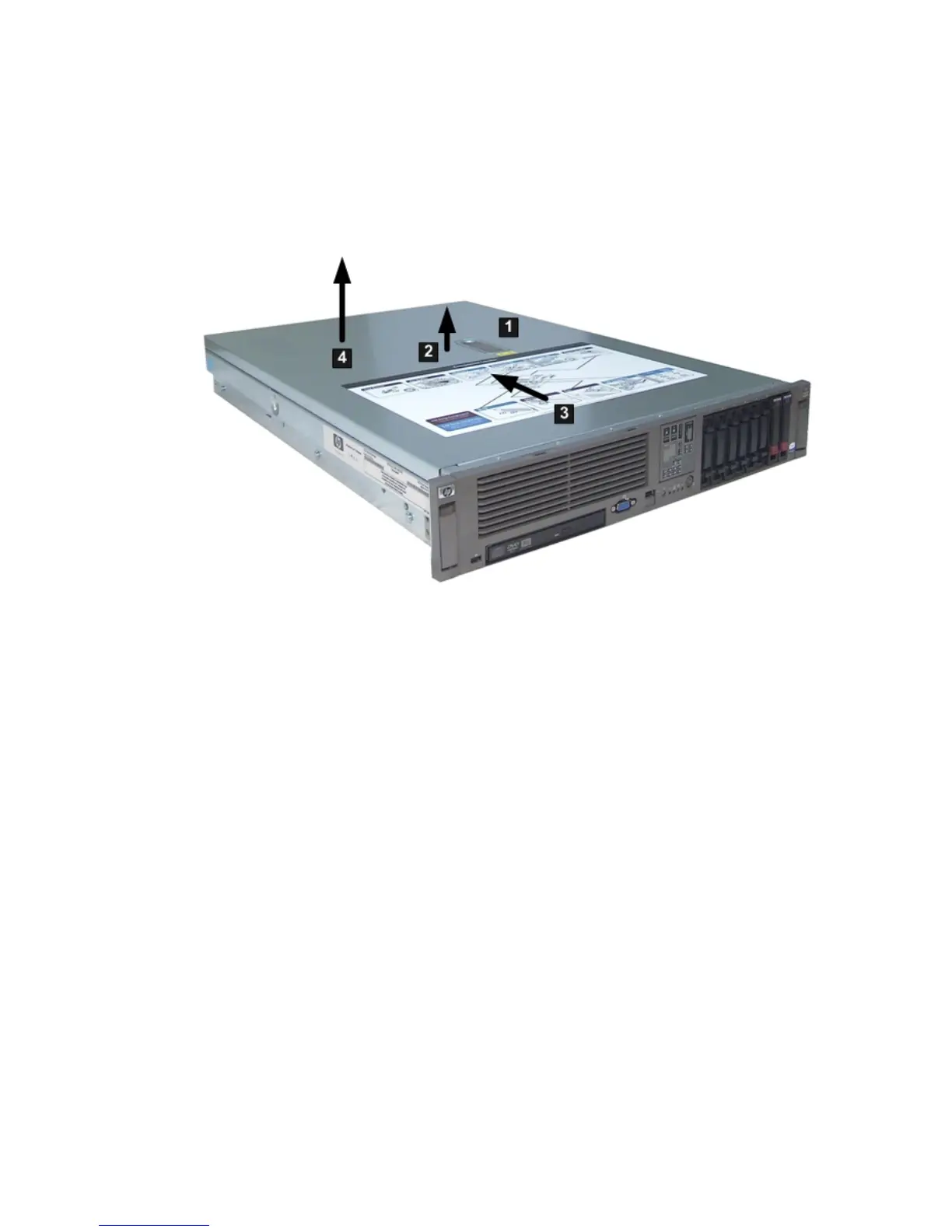

Figure 3-5 Removing the Top Cover
Removing the Airflow Guide
The airflow guide in the rx2660 server directs airflow from eight of the system fans to the
processors and the system memory on the system board. To install an additional processor or
system memory, you must remove the airflow guide (and optionally, the RAID battery).
To remove the airflow guide from the server, follow these steps:
1. Remove the top cover.
Installing Additional Components 49
