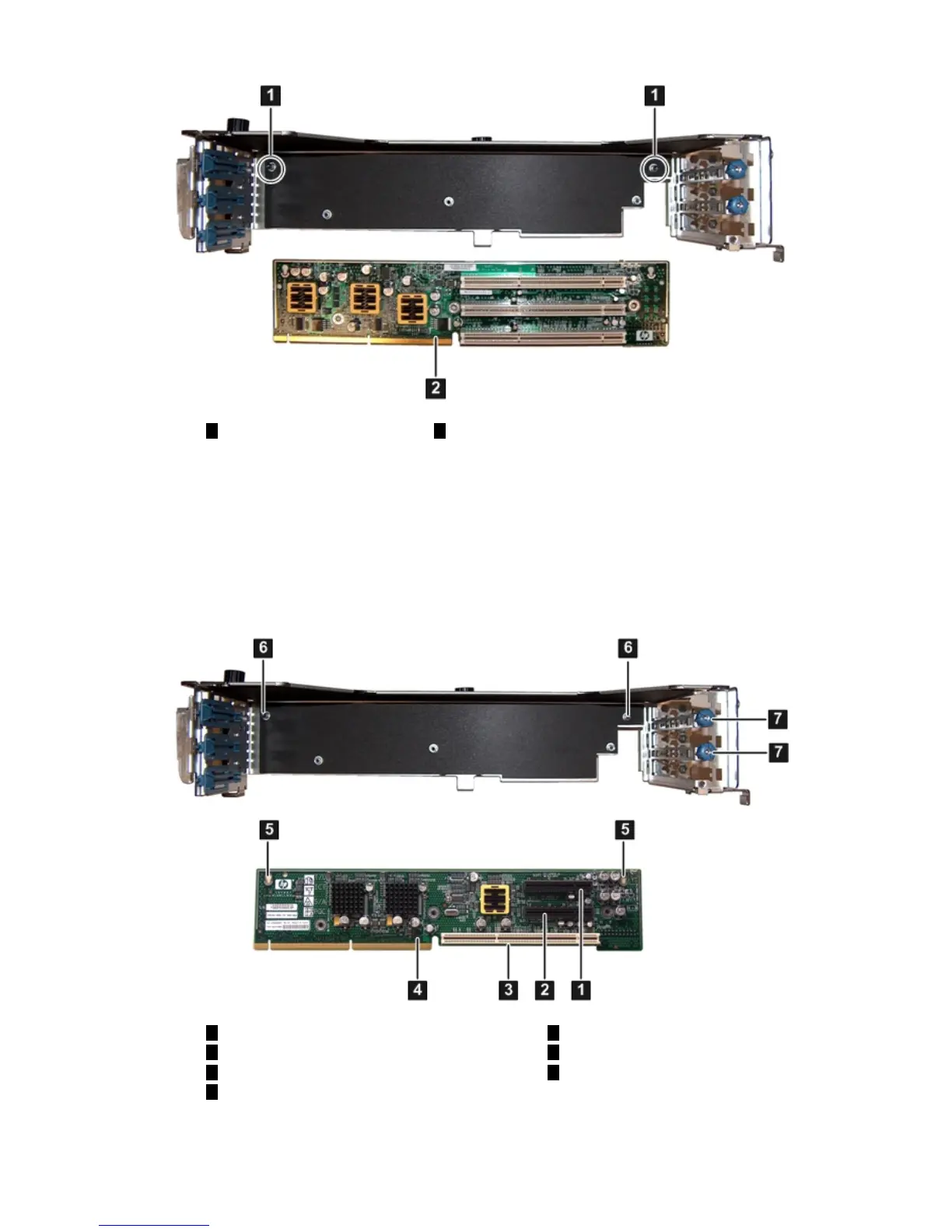

Figure B-3 I/O Backplane Removed
21
PCI-X I/O backplaneI/O backplane posts
3. Place the PCI-X I/O backplane in a static-free bag.
Installing the PCI-X/PCIe I/O Backplane Board Into the I/O Backplane Assembly
Use this procedure to install the I/O backplane into the I/O backplane assembly.
1. Align the PCI-X/PCIe I/O board keyways with the posts on the I/O backplane assembly.
Figure B-4 (page 208) shows the locations of the posts on the I/O backplane assembly.
2. Slide the I/O backplane up to lock it onto the I/O backplane assembly posts.
Figure B-4 Installing the PCI-X/PCIe I/O Backplane
5
PCI-X/PCIe I/O backplane keyways
1
Slot 1 (PCIe x8)
2
Slot 2 (PCIe x8)
6
I/O backplane posts
73
Slot 3 (PCI-X 133 MHz) Bulkhead T-15 thumbscrews
4
PCI-X/PCIe I/O backplane
3. Install and tighten the three T-15 screws to attach the I/O board to the I/O backplane assembly
208 Upgrades
