3. Open the processor cage.
a. Grasp the processor cage handle and apply adequate force to rotate the handle upward.

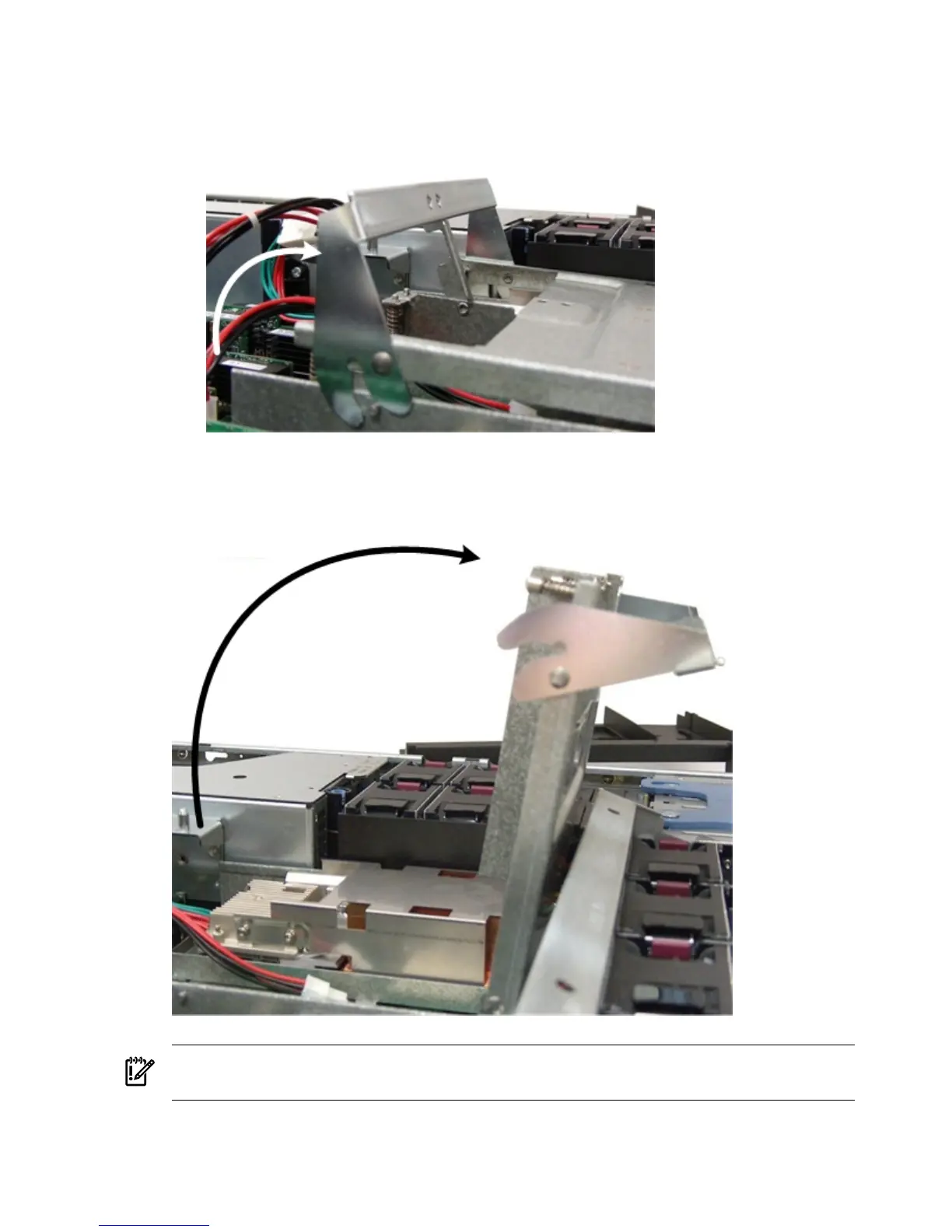

Figure 3-9 (page 54) shows the processor cage handle open.
Figure 3-9 Processor Cage Handle
b. Use the handle to rotate the cage closure approximately 90 degrees toward the front of
the assembly until it stops. Figure 3-10 (page 54) shows the processor cage fully open.
Figure 3-10 Processor Cage Open
IMPORTANT: Ensure the processor slot is entirely exposed. The processor must clear the
cage enclosure for proper installation.
4. Locate the slot Module 1 on the system board for the processor installation. Figure 3-11
(page 55) shows the slot locations on the system board.
54 Installing the Server
