HP integrity rx2800 i4 User Manual

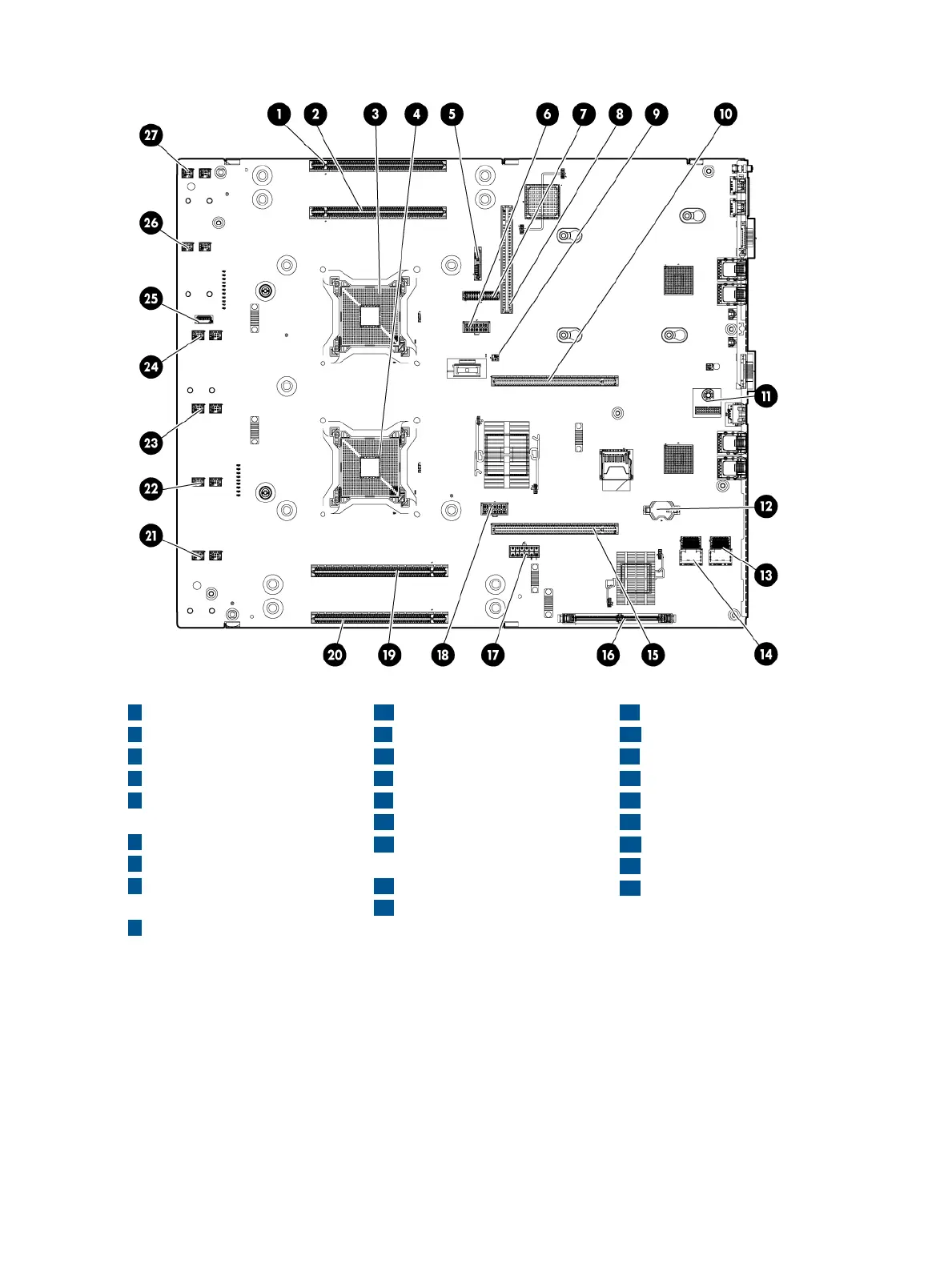

Figure 2 System board components
19
Memory riser connector 3
10
Primary riser connector
1
Memory riser connector 1
2
Memory riser connector 2
20
Memory riser connector 4
11
TPM connector
12
System battery
3
Processor socket 0
21
Fan 6 connector
22
Fan 5 connector
13
SAS B connector
4
Processor socket 1
5
SATA optical drive
connector
23
Fan 4 connector
14
SAS A connector
15 24
Secondary riser connector Fan 3 connector
6
CPU 0 power connector
2516
Internal USB connectorSAS cache module
connector
7
Front I/O connector
26
Fan 2 connector
17
SAS power connector
8
Power supply backplane
connector
27
Fan 1 connector
18
CPU 1 power connector
9
Intrusion switch connector
HP Confidential10 Overview

HP integrity rx2800 i4 Specifications

General

Number of Processors	1 or 2
Memory Slots	24 DIMM slots
Processor Cores	4 or 8 per processor
Cache	32 MB L3 per processor
Memory	Up to 384 GB DDR3
Storage	Up to 8 SFF SAS/SATA drives
RAID Support	RAID 0, 1, 5, 6
Network	Integrated 10/100/1000Base-T Ethernet
Network Controller	HP NC382i
Expansion Slots	6 PCIe 2.0 slots
Power Supply	Hot-plug redundant power supplies
Operating Systems	HP-UX, Linux
Form Factor	2U Rack
Processor Speed	1.73 GHz, 2.13 GHz, or 2.53 GHz
