HP integrity rx2800 i4 User Manual

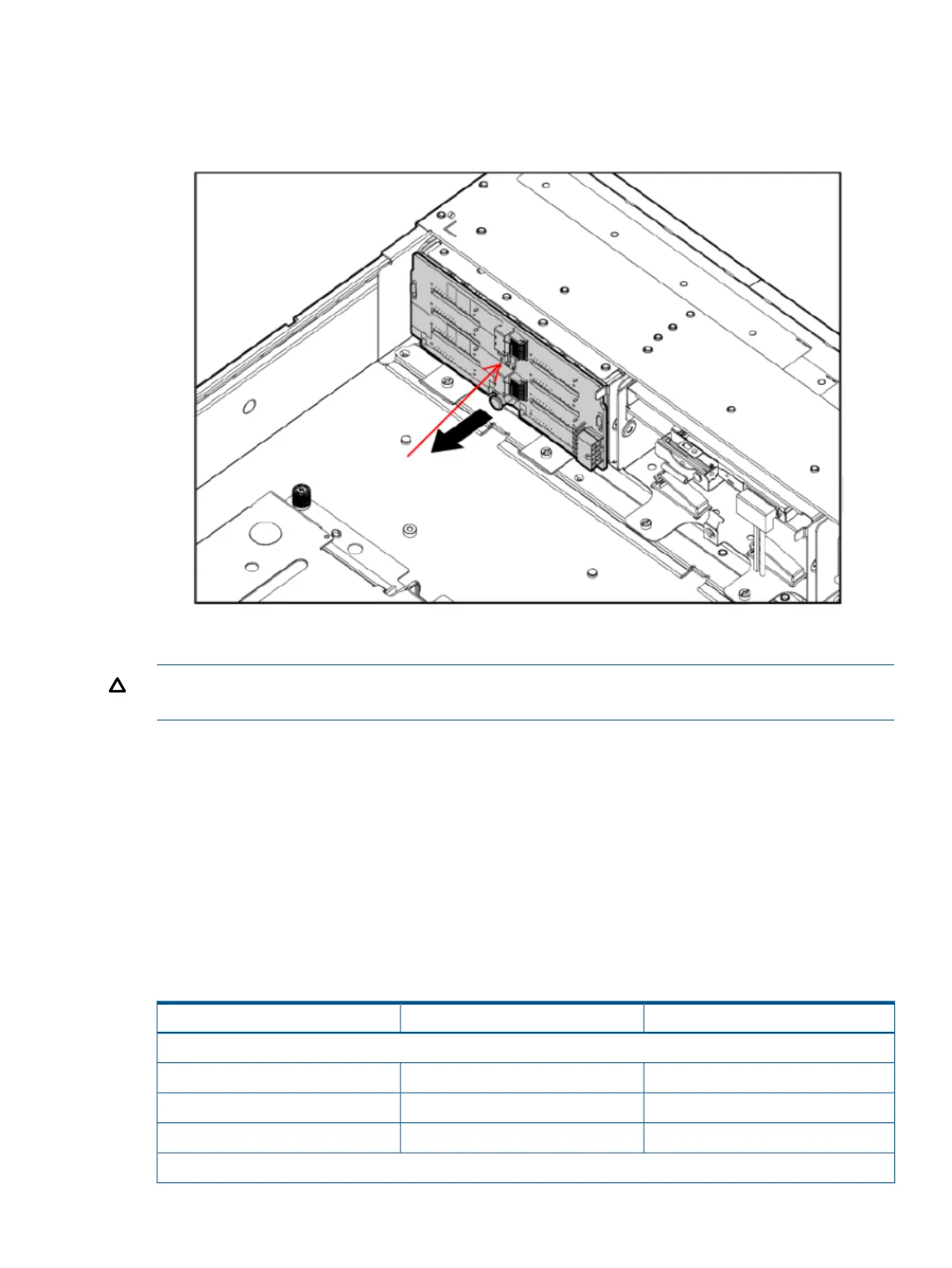

6. Remove the hard drive backplane.
1. Pull the plunger to unlock the backplane.
2. Lift the backplane upward to clear the metal tabs.
3. Pull out the backplane.
To replace the component, reverse the removal procedure.
CAUTION: Carefully align the backplane center through-holes with the chassis mounting posts
or you might damage components on the backplane.
Removing and replacing the PCI riser cage
To remove the component, see “Removing the PCI riser cage” (page 43).
To replace the component, reverse the removal procedure.
Removing and replacing expansion slot covers
To remove the component see “Removing expansion slot covers” (page 44).
To replace the component, reverse the removal procedure.
Removing and replacing expansion boards
Table 43 PCI slot descriptions
2–slot PCIe riser3–slot PCIe riser
Primary riser connector
PCIe2 x16 (8, 4, 2, 1)PCIe2 x16 (8, 4, 2, 1)1 — Full length, full height
PCIe2 x16 (8, 4, 2, 1)PCIe2 x8 (4, 2, 1)2 — Half length, full height
—PCIe2 x8 (4, 2, 1)3 — Half length, full height
Secondary riser connector
HP Confidential Removing and replacing the PCI riser cage 111

HP integrity rx2800 i4 Specifications

General

Number of Processors	1 or 2
Memory Slots	24 DIMM slots
Processor Cores	4 or 8 per processor
Cache	32 MB L3 per processor
Memory	Up to 384 GB DDR3
Storage	Up to 8 SFF SAS/SATA drives
RAID Support	RAID 0, 1, 5, 6
Network	Integrated 10/100/1000Base-T Ethernet
Network Controller	HP NC382i
Expansion Slots	6 PCIe 2.0 slots
Power Supply	Hot-plug redundant power supplies
Operating Systems	HP-UX, Linux
Form Factor	2U Rack
Processor Speed	1.73 GHz, 2.13 GHz, or 2.53 GHz
