HP integrity rx2800 i4 User Manual

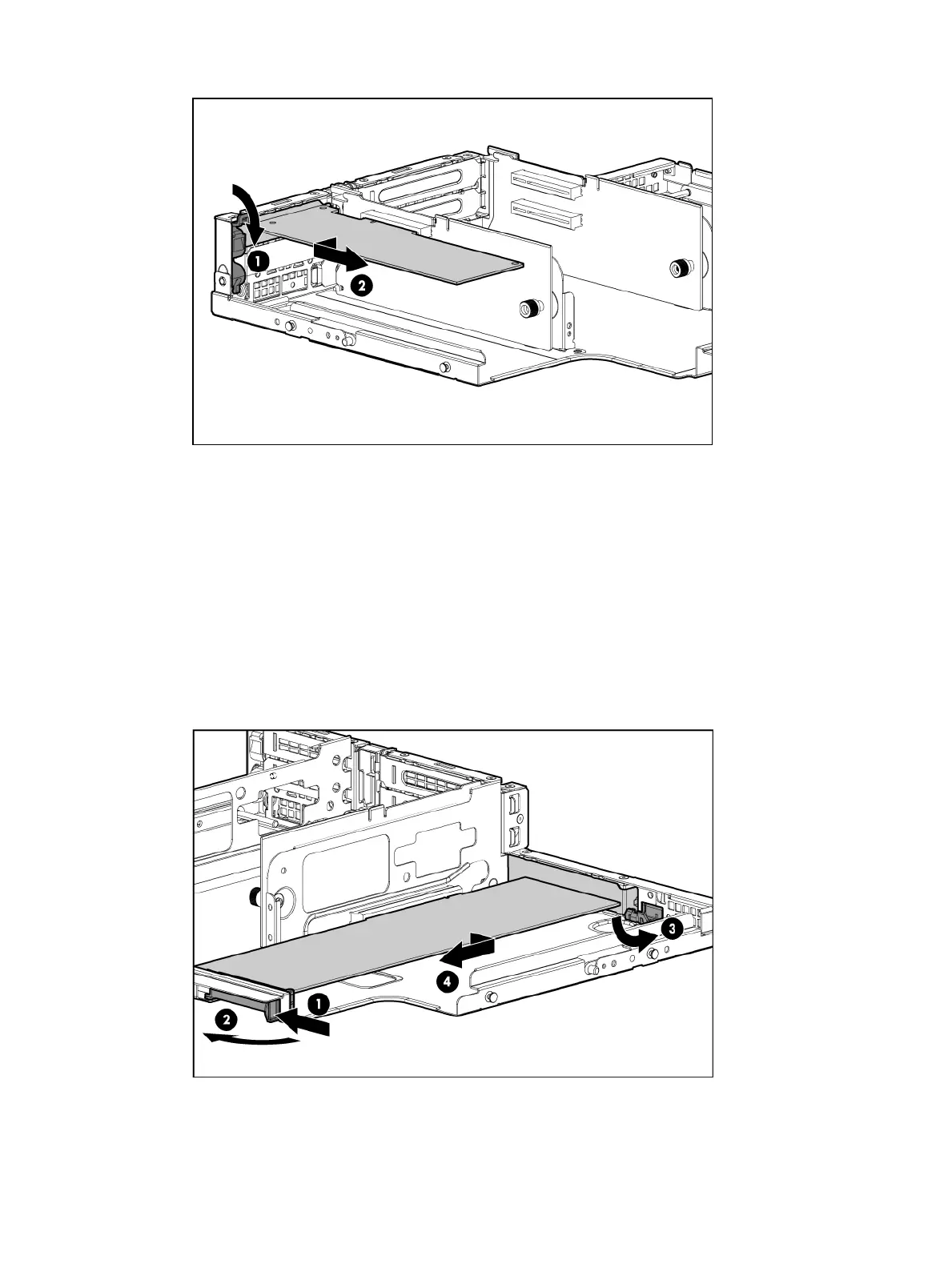

7. Remove expansion board.
To replace the component, see “Installing expansion boards” (page 45).
Removing and replacing a full-length expansion board
1. Power off the server (“Powering off the server” (page 99)).
2. Extend the server from the rack (“Extending the server from the rack” (page 95)).
3. Remove the access panel (“Removing and replacing the access panel” (page 106)).
4. Disconnect any external cables that are connected to the expansion board.
5. Remove the PCI riser cage (“Removing and replacing the PCI riser cage” (page 111)).
6. Disconnect any internal cables that are connected to the expansion board.
7. Remove the expansion board.
To replace the component, see “Installing expansion boards” (page 45).
HP Confidential Removing and replacing expansion boards 113

HP integrity rx2800 i4 Specifications

General

Number of Processors	1 or 2
Memory Slots	24 DIMM slots
Processor Cores	4 or 8 per processor
Cache	32 MB L3 per processor
Memory	Up to 384 GB DDR3
Storage	Up to 8 SFF SAS/SATA drives
RAID Support	RAID 0, 1, 5, 6
Network	Integrated 10/100/1000Base-T Ethernet
Network Controller	HP NC382i
Expansion Slots	6 PCIe 2.0 slots
Power Supply	Hot-plug redundant power supplies
Operating Systems	HP-UX, Linux
Form Factor	2U Rack
Processor Speed	1.73 GHz, 2.13 GHz, or 2.53 GHz
