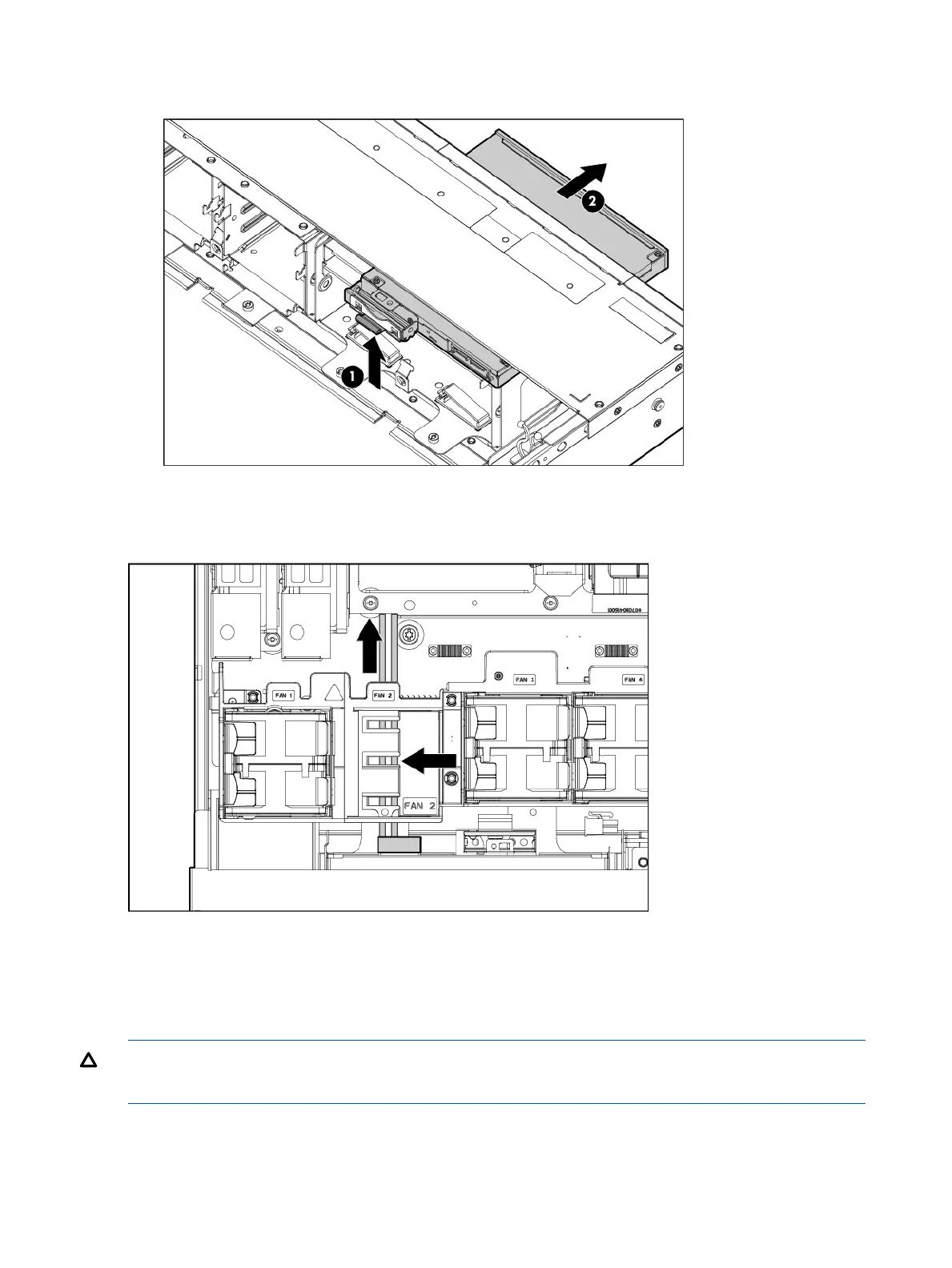

6. Lift the DVD release tab, and push out the drive. Then pull the drive straight out to remove it
from the server.
To replace the component, reverse the removal procedure.
The optical drive cable routes beneath fan 2.
Removing and replacing a hot-swap fan
Six fans cool the server. The fans are all redundant, hot-swappable, and interchangeable. If one
fan unit fails, then the other fans increase speed to compensate. The fan units are N+1 redundant,
meaning that the server has six fan units, but can operate with five fan units running.
CAUTION: If more than one fan is removed or fails, the system does not shut down.
If the temperature sensors detect conditions outside of operating limits, the system shuts down.
HP Confidential108 Removal and replacement procedures
