2. Hold the pedestal component flush against the server.
3. Slide the pedestal component forward until it locks into place.

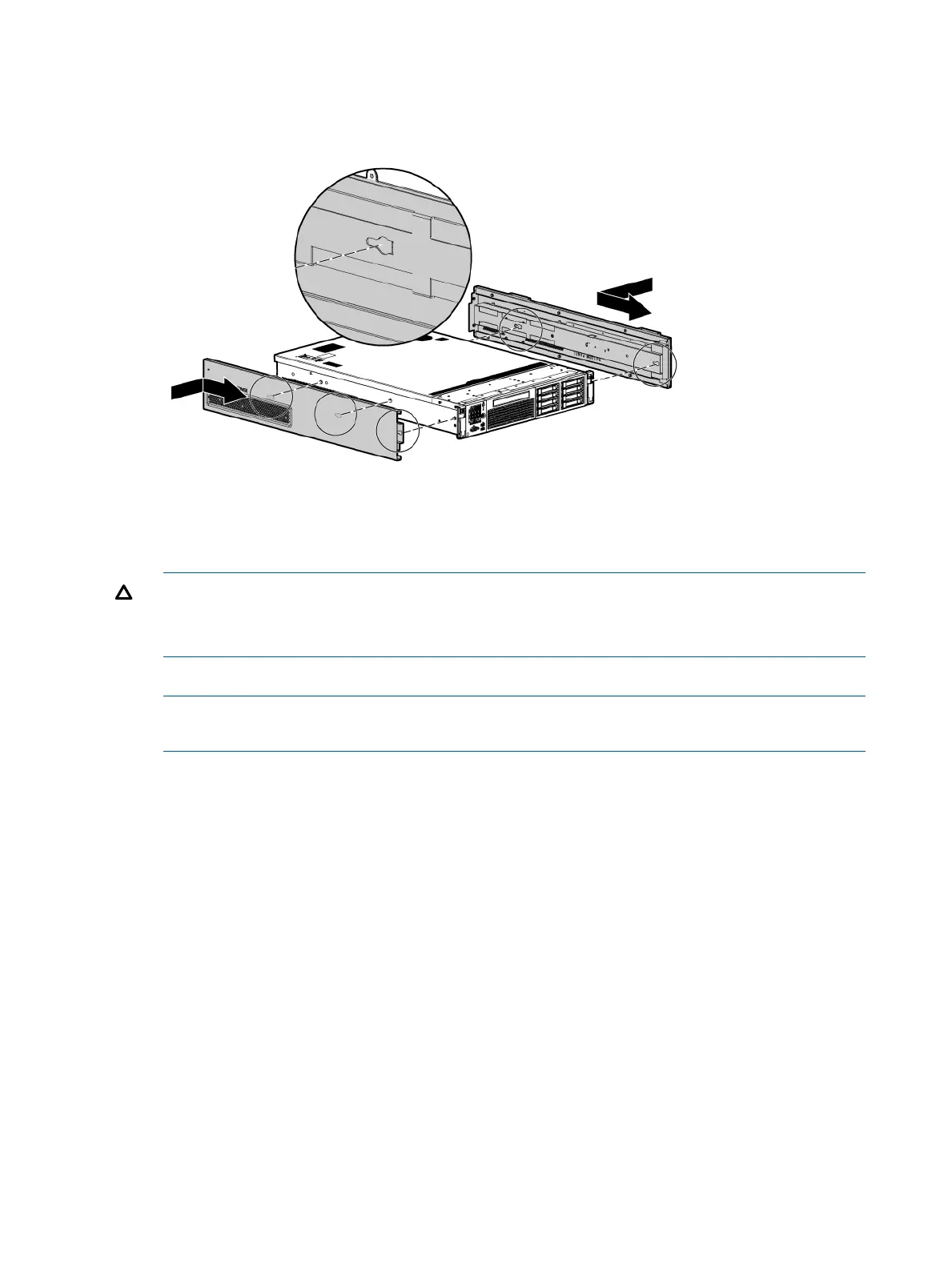

Figure 9 Installing the pedestal bottom piece
4. Stand the server up on the bottom piece of the pedestal kit that was just installed so the server
is in the vertical position.
CAUTION: The server is heavy. Be careful when lifting it to the vertical position.
Without the feet installed, the server might tip over easily. Be careful when working near the
server to avoid tipping it over.
5. Align the holes in the pedestal top piece with the posts on the server.
NOTE: One of the holes in the pedestal component contains the locking mechanism. This
makes the hole appear partially blocked.
6. Hold the pedestal top piece flush against the server.
7. Slide the pedestal top piece forward until it locks into place.
8. The top and bottom pedestal kit pieces are now in place.
Attaching the bezel cover
To attach the bezel cover:
1. Apply the rx2800 i4 product label provided in the pedestal kit to the bottom front of the bezel
cover (label can be seen in the figure below.)
2. Attach the bezel cover to the front of the server starting from the bottom of the pedestal kit.
3. Push the bezel cover into place against the pedestal kit top piece until the tabs on the bezel
cover snap into place.
