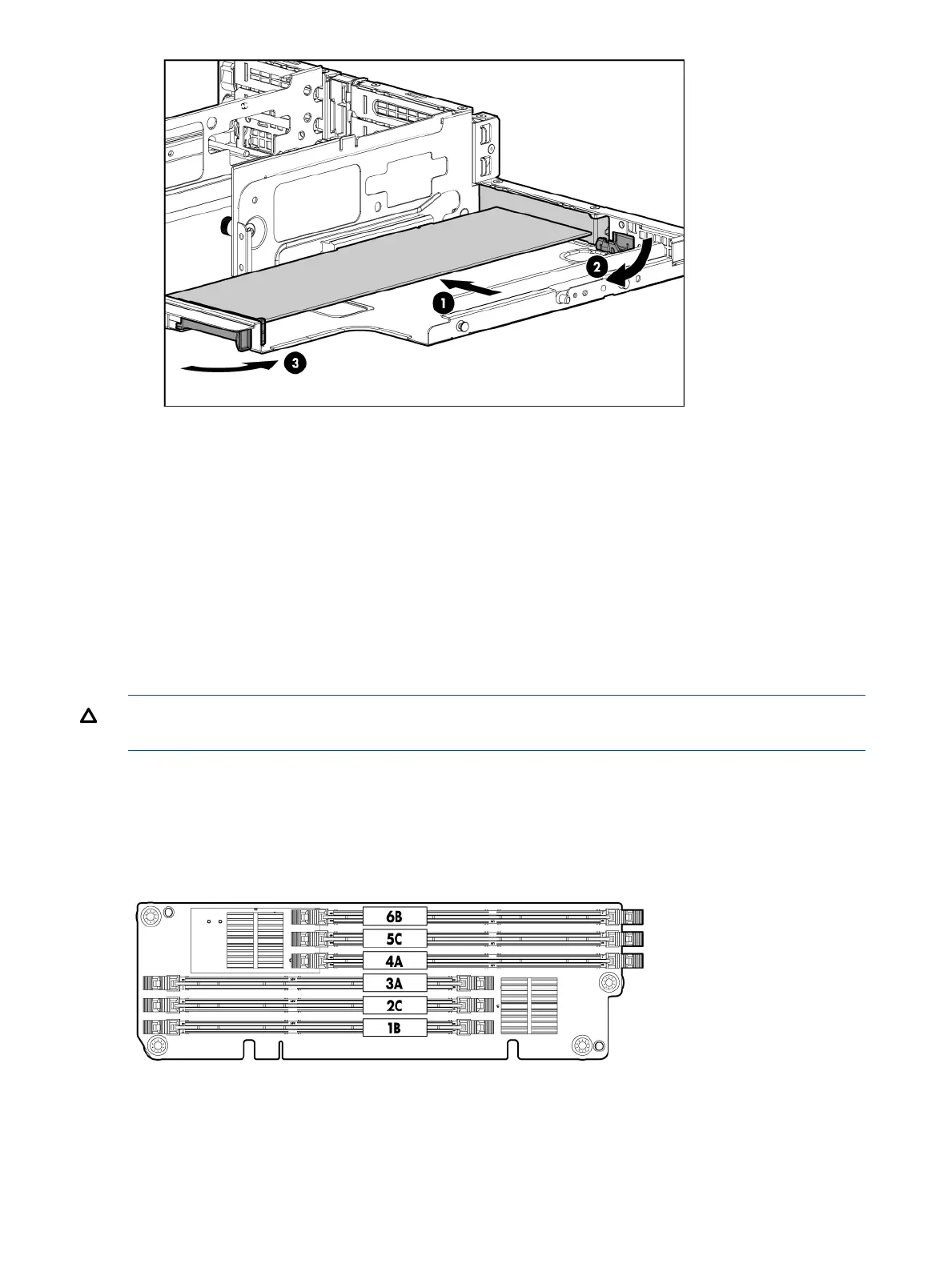

5. Connect any required internal cables to the expansion board.
6. Reinsert the PCI riser cage into the chassis.
7. Connect any required external cables to the expansion board.
Installing DIMMs
Memory configurations
The server has 24 system memory DIMM slots located on 4 memory risers (6 DIMMs per riser).
You can access the memory risers without removing the airflow guide or the I/O card cage.
The DIMMs are partitioned by the number of processors installed in the server. If you have only
one processor installed in the system, you can only use 12 of the 24 memory slots.
CAUTION: Observe all ESD safety precautions before attempting this procedure. Failure to follow
ESD safety precautions might result in damage to the server.
Memory riser locations and slot IDs
Install DIMMs into the risers attached to the system board. Each slot has a unique ID. For memory
riser locations, see Figure 2 (page 10).
Figure 21 DIMM slot IDs
HP Confidential46 Optional components

HP integrity rx2800 i4 Specifications

General

Number of Processors	1 or 2
Memory Slots	24 DIMM slots
Processor Cores	4 or 8 per processor
Cache	32 MB L3 per processor
Memory	Up to 384 GB DDR3
Storage	Up to 8 SFF SAS/SATA drives
RAID Support	RAID 0, 1, 5, 6
Network	Integrated 10/100/1000Base-T Ethernet
Network Controller	HP NC382i
Expansion Slots	6 PCIe 2.0 slots
Power Supply	Hot-plug redundant power supplies
Operating Systems	HP-UX, Linux
Form Factor	2U Rack
Processor Speed	1.73 GHz, 2.13 GHz, or 2.53 GHz
