HP integrity rx2800 i4 User Manual

Removing the server from the pedestal kit
Required tools
No tools are required for disassembling the pedestal kit.
Power off the server and remove cables
1. Power down the server using the instructions provided in the server service guide.
2. Disconnect the power and LAN cables connected to the server.
Removing the pedestal kit
1. Remove pedestal feet.

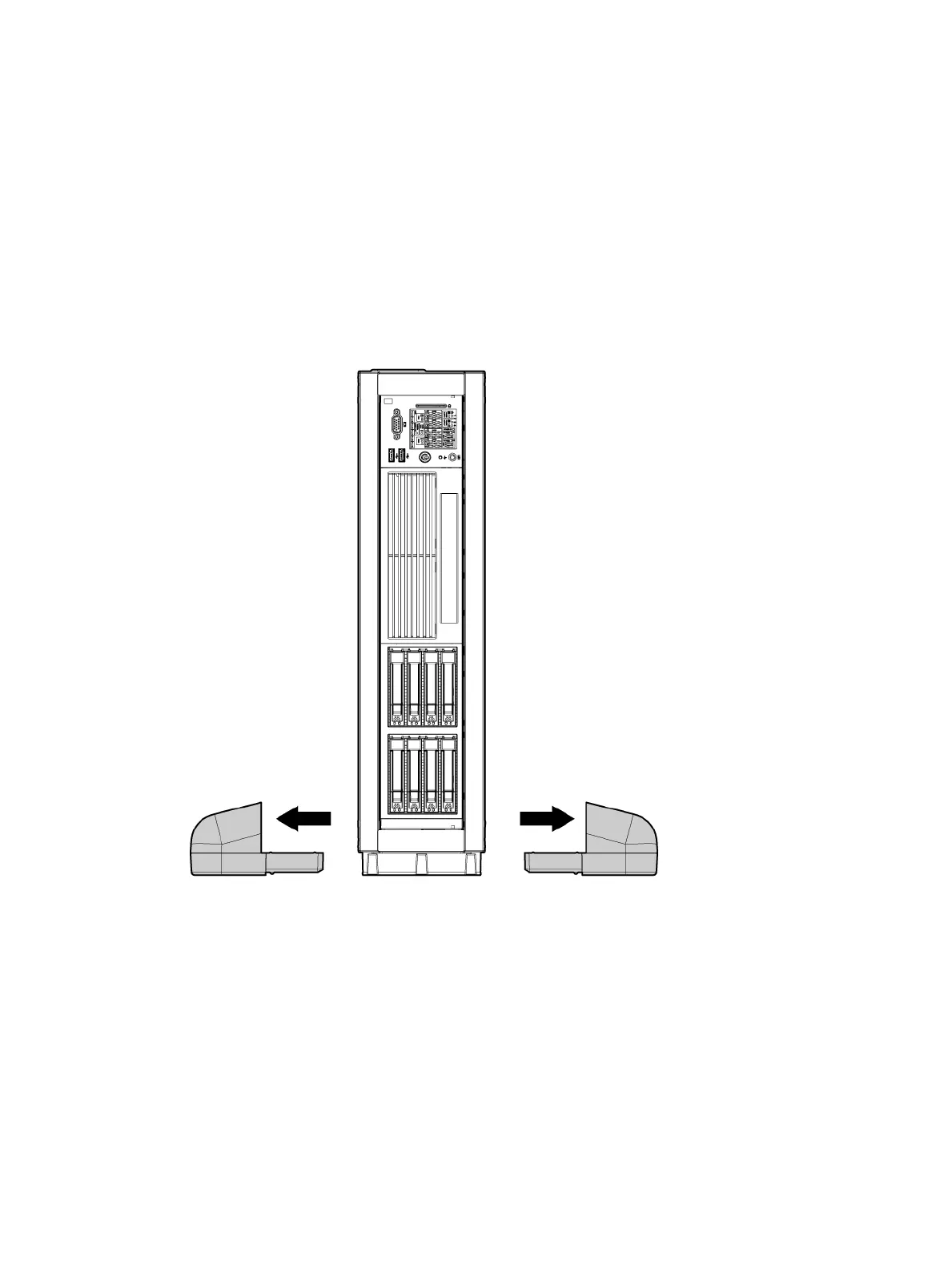

Figure 32 Removing the pedestal kit feet
2. Remove the pedestal side pieces by unscrewing the captive thumbscrews on the rear of the
pedestal kit, and sliding the side pedestal kit pieces toward the back of the server.
HP Confidential100 Removal and replacement procedures

HP integrity rx2800 i4 Specifications

General

Number of Processors	1 or 2
Memory Slots	24 DIMM slots
Processor Cores	4 or 8 per processor
Cache	32 MB L3 per processor
Memory	Up to 384 GB DDR3
Storage	Up to 8 SFF SAS/SATA drives
RAID Support	RAID 0, 1, 5, 6
Network	Integrated 10/100/1000Base-T Ethernet
Network Controller	HP NC382i
Expansion Slots	6 PCIe 2.0 slots
Power Supply	Hot-plug redundant power supplies
Operating Systems	HP-UX, Linux
Form Factor	2U Rack
Processor Speed	1.73 GHz, 2.13 GHz, or 2.53 GHz
