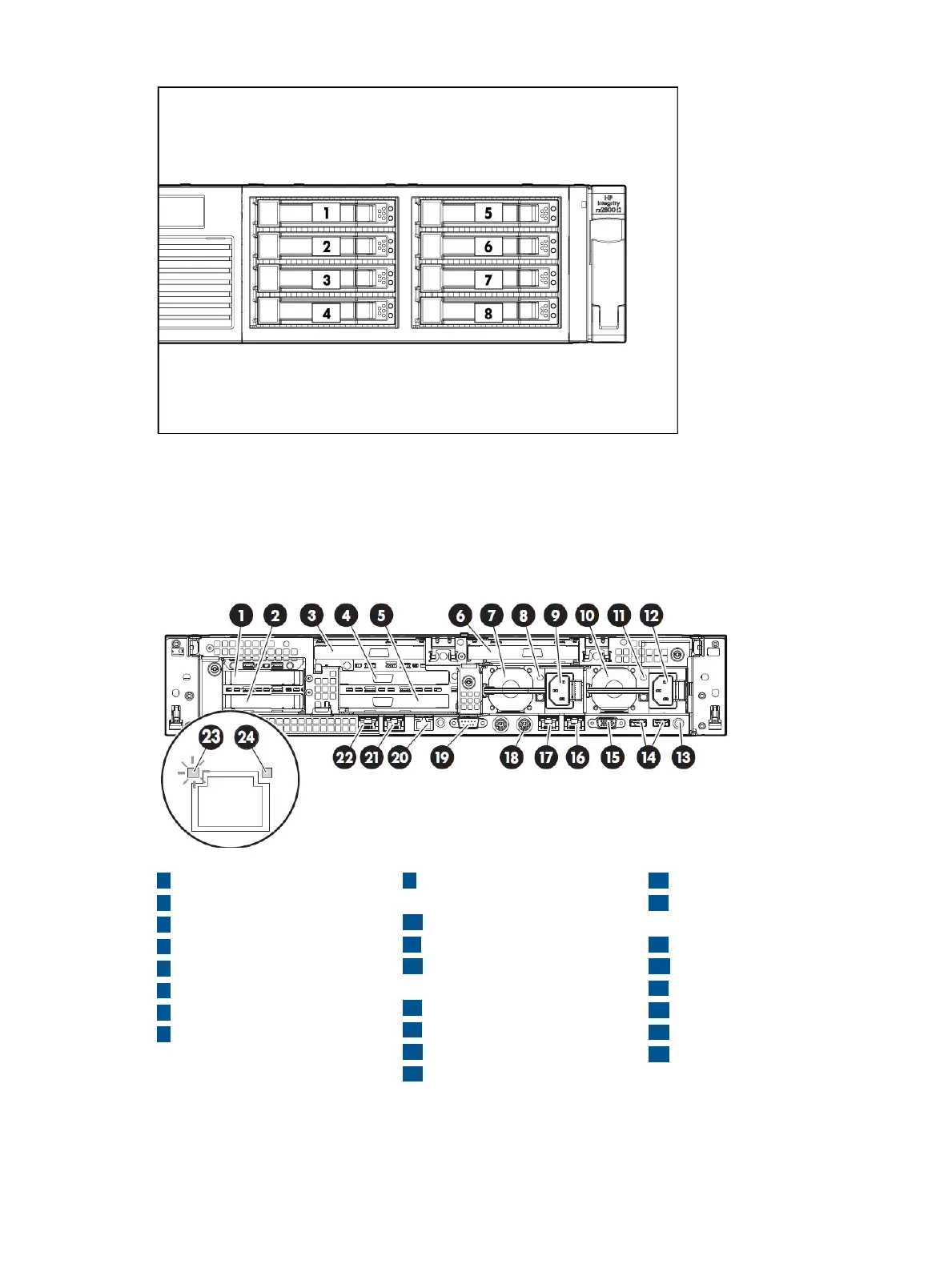

Figure 5 SAS device numbers
Rear panel controls and ports
The server rear panel includes communication ports, I/O ports, USB ports, AC power connectors,
and the locator LED and button. LEDs located on the rear panel of the server signal the operational
status of the rear panel components.
Figure 6 Rear panel components
17
NIC 2 connector
9
Power supply 2 power
connector
1
PCI 5
2 18
PCI 6 iLO 3 physical presence
pinhole button
10
Power supply 1
3
PCI 4
19
Serial connector
11
Power supply 1 LED
4
PCI 2
2012
iLO 3 connectorPower supply 1 power
connector
5
PCI 3
21
NIC 3 connector
6
PCI 1
13
UID LED button
22
NIC 4 connector
7
Power supply 2
14
USB connectors (2)
23
NIC link LED
8
Power supply 2 LED
15
Video connector
24
NIC activity LED
16
NIC 1 connector
HP Confidential Controls and ports 13

HP integrity rx2800 i4 Specifications

General

Number of Processors	1 or 2
Memory Slots	24 DIMM slots
Processor Cores	4 or 8 per processor
Cache	32 MB L3 per processor
Memory	Up to 384 GB DDR3
Storage	Up to 8 SFF SAS/SATA drives
RAID Support	RAID 0, 1, 5, 6
Network	Integrated 10/100/1000Base-T Ethernet
Network Controller	HP NC382i
Expansion Slots	6 PCIe 2.0 slots
Power Supply	Hot-plug redundant power supplies
Operating Systems	HP-UX, Linux
Form Factor	2U Rack
Processor Speed	1.73 GHz, 2.13 GHz, or 2.53 GHz
