To enable Advanced Pack licensing, see “Adding a RAID Advanced Pack license key” (page 140).
NOTE: To utilize all 8 disks with the zero memory option, the following RAID configurations are
possible:
• RAID 0: 1 or 2 LUNs striped with up to 8 disks
• RAID 10: 1 or 2 LUNs striped & mirrored with even number of up to 8 disks
• RAID 1: 1 LUN using 2 mirrored disks, and one additional LUN in RAID 0 or 10
Example Configurations 8 Disks with Zero Memory
• LUN 1: RAID 1 bays 1 & 2
• LUN 2: RAID 0 bays 3, 4, 5, 6, & 7
• Hot Spare: bay 8
• LUN 1: RAID 10 bays 1, 2, 3, & 4
• LUN 2: RAID 10 bays 5, 6, 7, & 8
• LUN 1: RAID 0 bays 1, 2, & 3
• LUN 2: RAID 10 bays 5, 6, 7, & 8
• Hot Spare: bay 4
Controls and ports
Front panel controls and ports

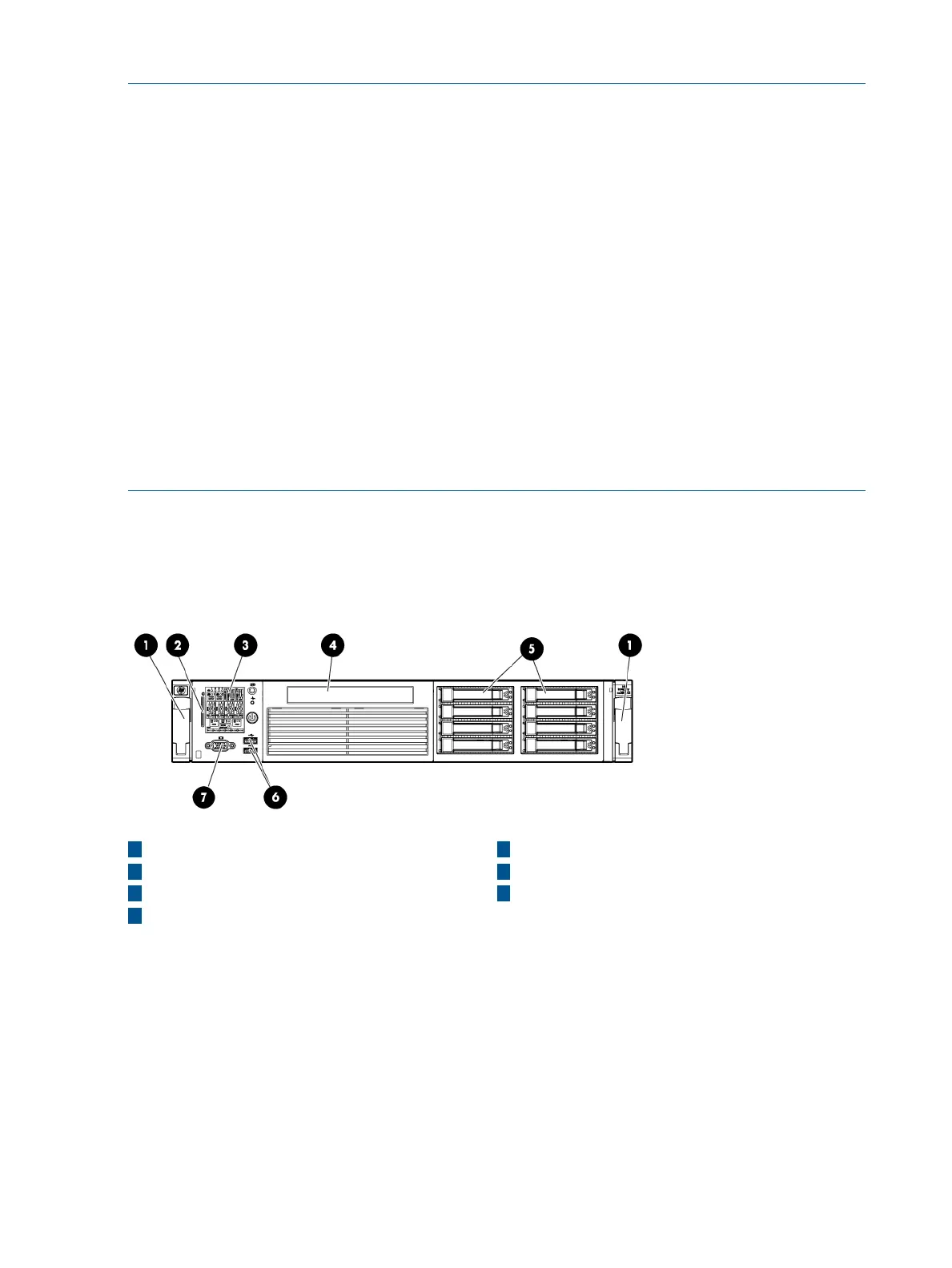

Figure 4 Front panel components
5
Hard drive bays
1
Quick release levers
2
iLO 3 information pull tab
6
USB connectors
73
SID Video connector
4
Optical drive bay
Storage and media devices
The server supports up to eight hot-plug SAS HDDs, and one optical (SATA DVD+RW) drive, with
LEDs that indicate activity and device statuses.
HP Confidential12 Overview

HP integrity rx2800 i4 Specifications

General

Number of Processors	1 or 2
Memory Slots	24 DIMM slots
Processor Cores	4 or 8 per processor
Cache	32 MB L3 per processor
Memory	Up to 384 GB DDR3
Storage	Up to 8 SFF SAS/SATA drives
RAID Support	RAID 0, 1, 5, 6
Network	Integrated 10/100/1000Base-T Ethernet
Network Controller	HP NC382i
Expansion Slots	6 PCIe 2.0 slots
Power Supply	Hot-plug redundant power supplies
Operating Systems	HP-UX, Linux
Form Factor	2U Rack
Processor Speed	1.73 GHz, 2.13 GHz, or 2.53 GHz
