NOTE: The prompt might take several minutes to appear, and the period that you can
press Ctrl-C is very short. For typical boots, HP recommends that you let the prompt time
out.
After selecting an option, the boot proceeds.
NOTE: If no option is selected, the boot proceeds after a few seconds.
3. Depending on how the server was configured from the factory and if the OS is installed at
the time of purchase, you are taken to:
• UEFI shell prompt
• OS login prompt
If the server has a factory-installed OS, you can interrupt the boot process to configure your
specific UEFI parameters.
If you are at the UEFI shell prompt, go to “UEFI Front Page” (page 28).
If you are at the OS login prompt, go to “OS login prompt” (page 31).
UEFI Front Page
If you are at the UEFI shell prompt, enter the command exit to navigate to the UEFI Front Page.
NOTE: The (0x30304352) means this is in Bay 2.

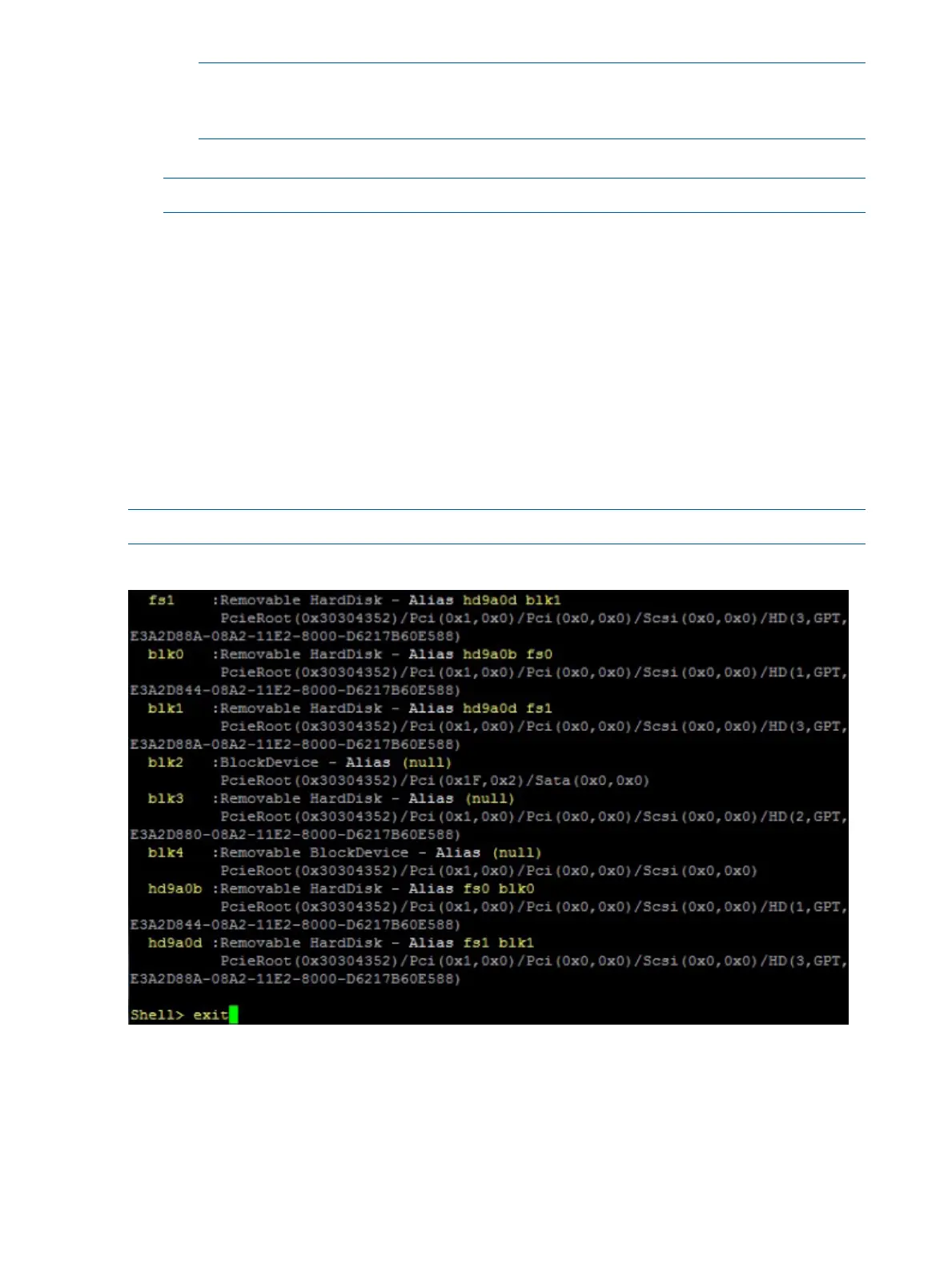

Figure 14 Shell map page
HP Confidential28 Installing the server

HP integrity rx2800 i4 Specifications

General

Number of Processors	1 or 2
Memory Slots	24 DIMM slots
Processor Cores	4 or 8 per processor
Cache	32 MB L3 per processor
Memory	Up to 384 GB DDR3
Storage	Up to 8 SFF SAS/SATA drives
RAID Support	RAID 0, 1, 5, 6
Network	Integrated 10/100/1000Base-T Ethernet
Network Controller	HP NC382i
Expansion Slots	6 PCIe 2.0 slots
Power Supply	Hot-plug redundant power supplies
Operating Systems	HP-UX, Linux
Form Factor	2U Rack
Processor Speed	1.73 GHz, 2.13 GHz, or 2.53 GHz
