HP integrity rx2800 i4 User Manual

To replace the component, reverse the removal procedure.
CAUTION: To prevent damage to the cache module during installation, be sure the cache module
is fully inserted before pressing down.
Removing and replacing the super capacitor pack
1. Power off the server (“Powering off the server” (page 99)).
2. Extend or remove the server from the rack (“Removing the server from the rack” (page 99))
or “Extending the server from the rack” (page 95)).
3. Remove the access panel (“Removing and replacing the access panel” (page 106)).
4. Remove the PCI riser cage (“Removing and replacing the PCI riser cage” (page 111)).

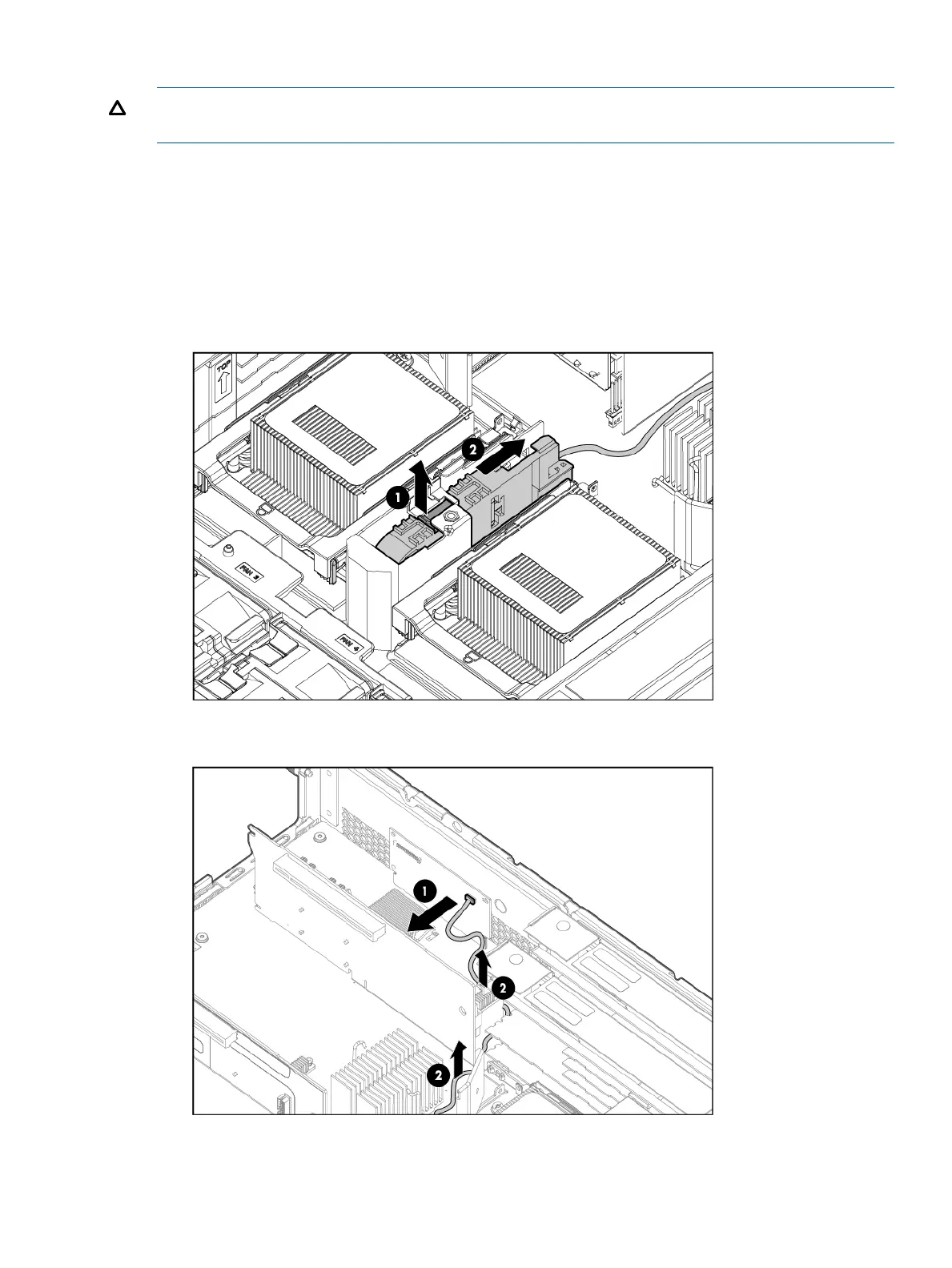

5. Pull up the latch and push the super capacitor pack to the rear of the server.
6. Disconnect the super capacitor pack cable from the board and system board clips.
HP Confidential Removing and replacing the super capacitor pack 115

HP integrity rx2800 i4 Specifications

General

Number of Processors	1 or 2
Memory Slots	24 DIMM slots
Processor Cores	4 or 8 per processor
Cache	32 MB L3 per processor
Memory	Up to 384 GB DDR3
Storage	Up to 8 SFF SAS/SATA drives
RAID Support	RAID 0, 1, 5, 6
Network	Integrated 10/100/1000Base-T Ethernet
Network Controller	HP NC382i
Expansion Slots	6 PCIe 2.0 slots
Power Supply	Hot-plug redundant power supplies
Operating Systems	HP-UX, Linux
Form Factor	2U Rack
Processor Speed	1.73 GHz, 2.13 GHz, or 2.53 GHz
