2. Extend the server from the rack (“Extending the server from the rack” (page 95)).
3. Remove the access panel (“Removing and replacing the access panel” (page 106)).
4. Remove necessary fans 1 and 2.
5. Remove the screw securing the SID inside the chassis.
6. Disconnect the cable clip.

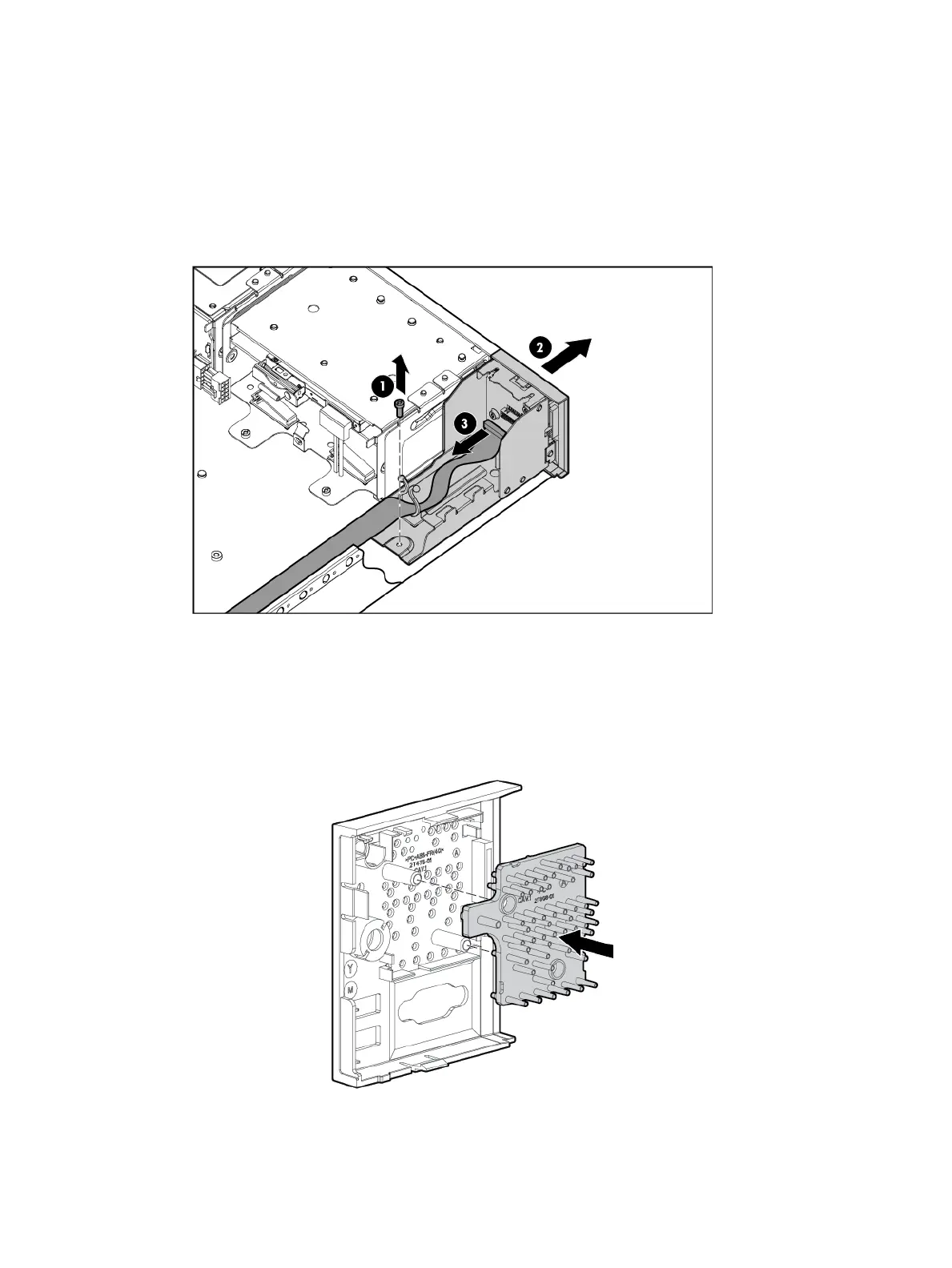

7. Pull the Systems Insight Display module halfway out of the server.
8. Disconnect the Systems Insight Display cable.
9. Remove the Systems Insight Display module.
To replace the component, reverse the removal procedure.
If installing a replacement SID module:
1. Retain the SID bezel, the transparent light pipe, and the black rubber light pipe.
2. Install the transparent plastic light pipe onto the SID bezel.
3. Install the SID bezel onto the metal chassis, ensuring the four latches all lock.
HP Confidential Removing and replacing the SID 123

HP integrity rx2800 i4 Specifications

General

Number of Processors	1 or 2
Memory Slots	24 DIMM slots
Processor Cores	4 or 8 per processor
Cache	32 MB L3 per processor
Memory	Up to 384 GB DDR3
Storage	Up to 8 SFF SAS/SATA drives
RAID Support	RAID 0, 1, 5, 6
Network	Integrated 10/100/1000Base-T Ethernet
Network Controller	HP NC382i
Expansion Slots	6 PCIe 2.0 slots
Power Supply	Hot-plug redundant power supplies
Operating Systems	HP-UX, Linux
Form Factor	2U Rack
Processor Speed	1.73 GHz, 2.13 GHz, or 2.53 GHz
