Drive activity LED The drive activity LED is solid green during normal operation and
flashes green when a drive is accessed.
Drive status LED The drive status LED can appear amber or blue.
• Amber indicates a warning, or failure condition.
• Blue is a locator LED that identifies a particular disk drive.
Various software utilities, such as online diagnostics or SAS disk drive
configuration tools, can activate the locator LED.

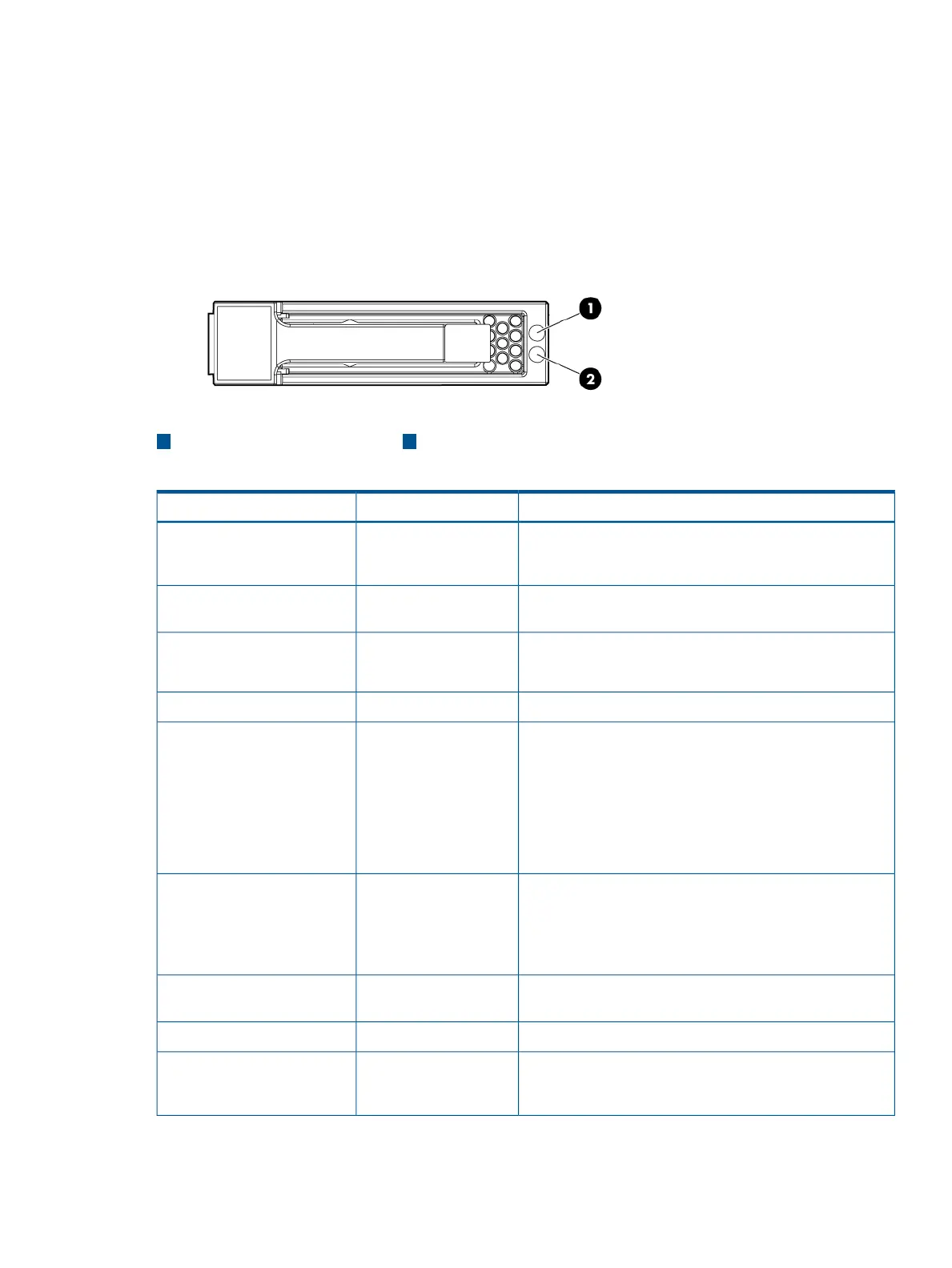

Figure 24 Hot-plug SAS disk drive LEDs
21
Drive status LEDDrive activity LED
Table 21 SAS disk drive LEDs
IndicationDrive status LED statusDrive activity LED status
The drive has failed, or a predictive failure alert has been
received for this drive; it also has been selected by a
management application.
Alternating amber and
blue
On, off, or flashing
The drive is operating normally, and it has been selected
by a management application.
BlueOn, off, or flashing
A predictive failure alert has been received for this drive.
IMPORTANT: Replace the drive as soon as possible.
Regularly flashing amber
(1 Hz)
On
The drive is online, but it is not active currently.OffOn
CAUTION: Do not remove the drive. Removing a drive
might terminate the current operation and cause data loss.
Regularly flashing amber
(1 Hz)
Flashing regularly (1 Hz)
The drive is part of an array that is undergoing capacity
expansion or stripe migration, but a predictive failure alert
has been received for this drive. To minimize the risk of data
loss, do not replace the drive until the expansion or
migration is complete.
CAUTION: Do not remove the drive. Removing a drive
might terminate the current operation and cause data loss.
OffFlashing regularly (1 Hz)
The drive is rebuilding, erasing, or it is part of an array that
is undergoing capacity expansion or stripe migration.
The drive is active, but a predictive failure alert has been
received for this drive. Replace the drive as soon as possible.
Regularly flashing amber
(1 Hz)
Flashing irregularly
The drive is active, and it is operating normally.OffFlashing irregularly
A critical fault condition has been identified for this drive,
and the controller has placed it offline. Replace the drive as
soon as possible.
AmberOff
HP Confidential Troubleshooting tools 69

HP integrity rx2800 i4 Specifications

General

Number of Processors	1 or 2
Memory Slots	24 DIMM slots
Processor Cores	4 or 8 per processor
Cache	32 MB L3 per processor
Memory	Up to 384 GB DDR3
Storage	Up to 8 SFF SAS/SATA drives
RAID Support	RAID 0, 1, 5, 6
Network	Integrated 10/100/1000Base-T Ethernet
Network Controller	HP NC382i
Expansion Slots	6 PCIe 2.0 slots
Power Supply	Hot-plug redundant power supplies
Operating Systems	HP-UX, Linux
Form Factor	2U Rack
Processor Speed	1.73 GHz, 2.13 GHz, or 2.53 GHz
