PIM-SM non-scoped zone configuration example
Network requirements
As shown in Figure 44:
• VOD streams are sent to receiver hosts in multicast. The receivers of different subnets form stub
networks, and at least one receiver host exist in each stub network.
• The entire PIM-SM domain contains only one BSR.
• Host A and Host C are multicast receivers in the stub networks N1 and N2.
• Specify GigabitEthernet 2/1/3 on Router E as a C-BSR and a C-RP. The C-RP is designated to the
multicast group range 225.1.1.0/24. Specify GigabitEthernet 2/1/2 of Router D as the static RP on
all the routers to back up the dynamic RP.
• IGMPv2 runs between Router A and N1, and between Router B, Router C, and N2.

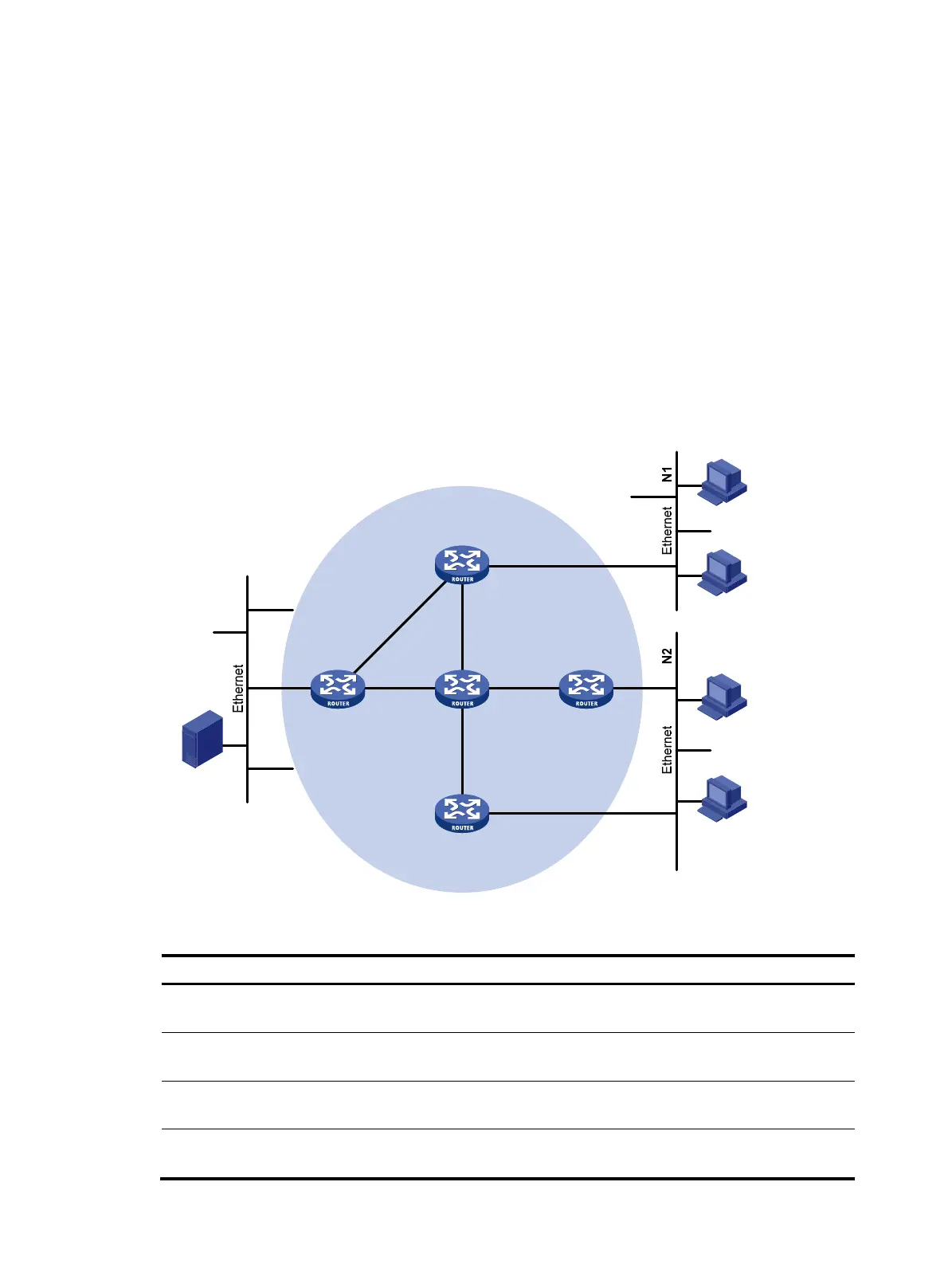

Figure 44 Network diagram
Table 8 Interface and IP address assignment
Device Interface IP address
Device Interface IP address
Router A
GigabitEthernet
2/1/1
10.110.1.1/24 Router D
GigabitEthernet
2/1/1
10.110.5.1/24
Router A
GigabitEthernet
2/1/2
192.168.1.1/24 Router D
GigabitEthernet
2/1/2
192.168.1.2/24
Router A
GigabitEthernet
2/1/3
192.168.9.1/24 Router D
GigabitEthernet
2/1/3
192.168.4.2/24
Router B
GigabitEthernet
2/1/1
10.110.2.1/24 Router E
GigabitEthernet
2/1/1
192.168.3.2/24
Source
10.110.5.100/24
PIM-SM
Router A
Router B
Router C
Router D
Receiver
Host A
Host B
Host C
Host D
Receiver
Router E
GE2/1/1
GE2/1/1
GE2/1/1
GE2/1/1
GE2/1/3
GE2/1/3
GE2/1/2GE2/1/2
GE2/1/2
GE2/1/2
GE2/1/2
GE2/1/1
GE2/1/4
GE2/1/3
