317
IPv6 PIM-SM non-scoped zone configuration example
Network requirements
As shown in Figure 98:
• VOD streams are sent to receiver hosts in multicast. The receivers of different subnets form stub
networks, and at least one receiver host exist in each stub network. The entire IPv6 PIM-SM domain
contains only one BSR.
• Host A and Host C are multicast receivers in the stub networks N1 and N2.
• Specify GigabitEthernet 2/1/3 on Router E as a C-BSR and a C-RP. The C-RP is designated to the
IPv6 multicast group range FF0E::101/64. Specify GigabitEthernet 2/1/2 of Router D as the static
RP on all the routers to back up the dynamic RP.
• MLDv1 runs between Router A and N1, and between Router B, Router C, and N2.

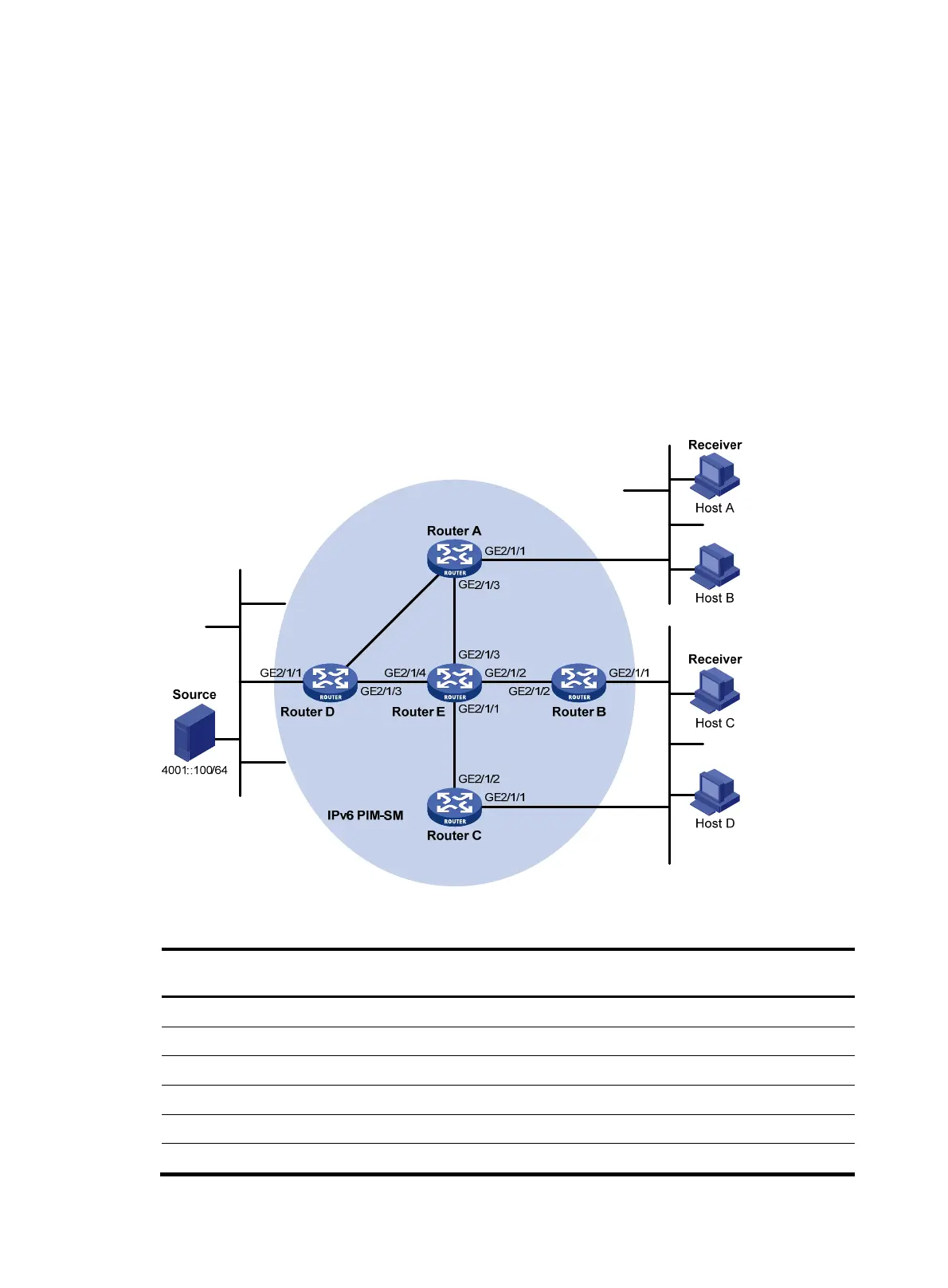

Figure 98 Network diagram
Table 22 Interface and IPv6 address assignment
Device Interface IPv6 address Device Interface
IPv6
address
Router A GigabitEthernet 2/1/1 1001::1/64 Router D GigabitEthernet 2/1/1 4001::1/64
Router A GigabitEthernet 2/1/2 1002::1/64 Router D GigabitEthernet 2/1/2 1002::2/64
Router A GigabitEthernet 2/1/3 1003::1/64 Router D GigabitEthernet 2/1/3 4002::1/64
Router B GigabitEthernet 2/1/1 2001::1/64 Router E GigabitEthernet 2/1/1 3001::2/64
Router B GigabitEthernet 2/1/2 2002::1/64 Router E GigabitEthernet 2/1/2 2002::2/64
Router C GigabitEthernet 2/1/1 2001::2/64 Router E GigabitEthernet 2/1/3 1003::2/64
Ethernet
EthernetEthernet
N1N2
GE2/1/2G
E2/1
/2
