127
[RouterD] display pim rp-info
BSR RP information:
Scope: non-scoped
Group/MaskLen: 224.0.0.0/4
RP address Priority HoldTime Uptime Expires
10.110.9.1 192 150 00:03:42 00:01:48
Scope: 239.0.0.0/8
Group/MaskLen: 239.0.0.0/8
RP address Priority HoldTime Uptime Expires
10.110.5.2 (local) 192 150 00:06:54 00:02:41
# Display RP information on Router F.
[RouterF] display pim rp-info
BSR RP information:
Scope: non-scoped
Group/MaskLen: 224.0.0.0/4
RP address Priority HoldTime Uptime Expires
10.110.9.1 (local) 192 150 00:00:32 00:01:58
BIDIR-PIM configuration example
Network requirements
As shown in Figure 46:
• VOD streams are sent to receiver hosts in multicast.
• Source 1 and Source 2 send multicast data to the multicast group 225.1.1.1.
• Host A and Host B are receivers of this multicast group.
• IGMPv2 runs between Router B and Host A and between Router D and Host B.

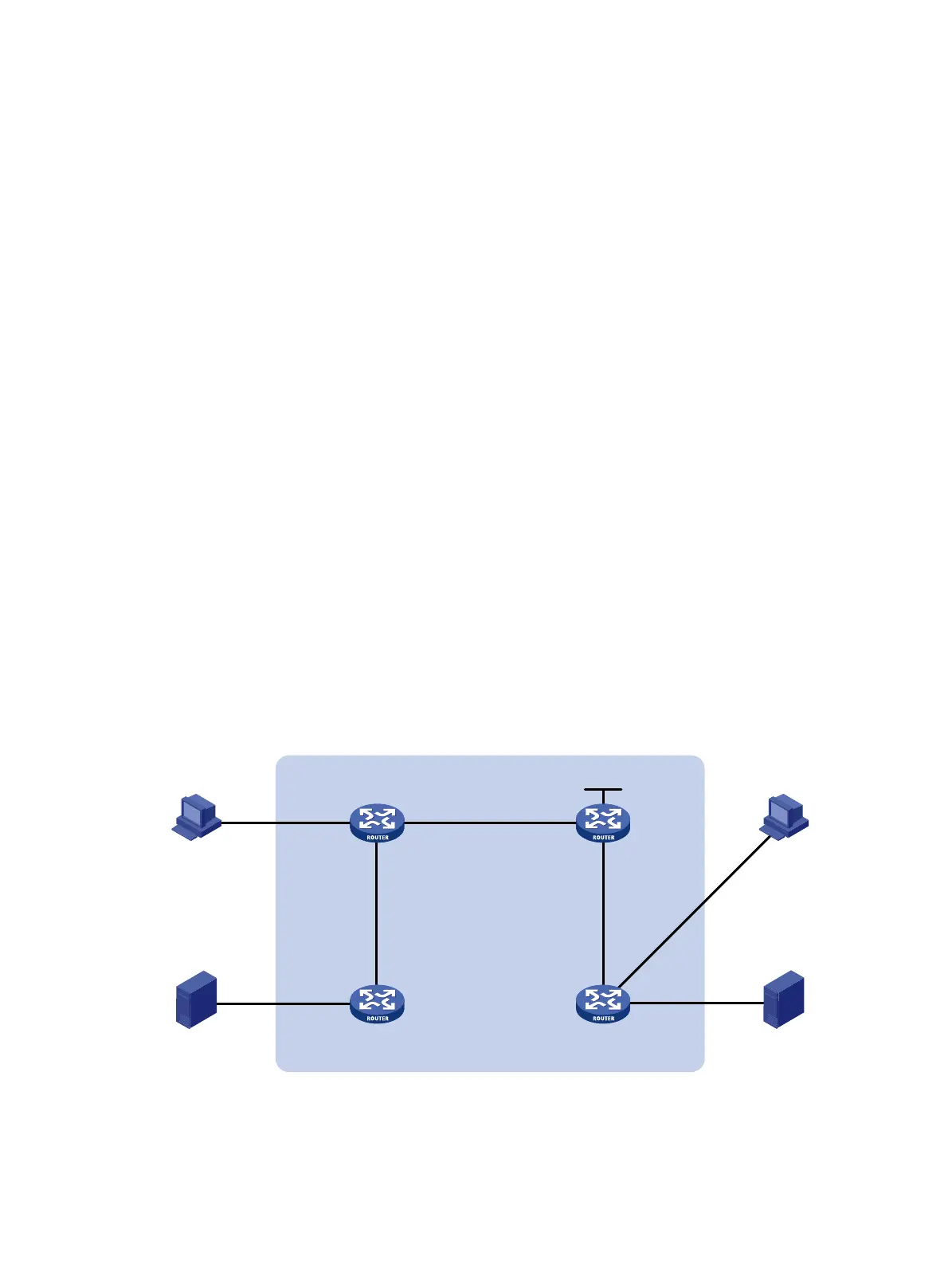

Figure 46 Network diagram
BIDIR-PIM
Source 1 Source 2
Host A
Receiver 1
Router A
GE2/1/2
GE2/1/2
GE2/1/3 GE2/1/1
GE2/1/2
GE2/1/3
GE2/1/1
GE2/1/1
GE2/1/
1
GE2/1/2
Router D
Router C
Router B
Host B
Receiver 2
Loop0
