FULLTEST3
EN - 64

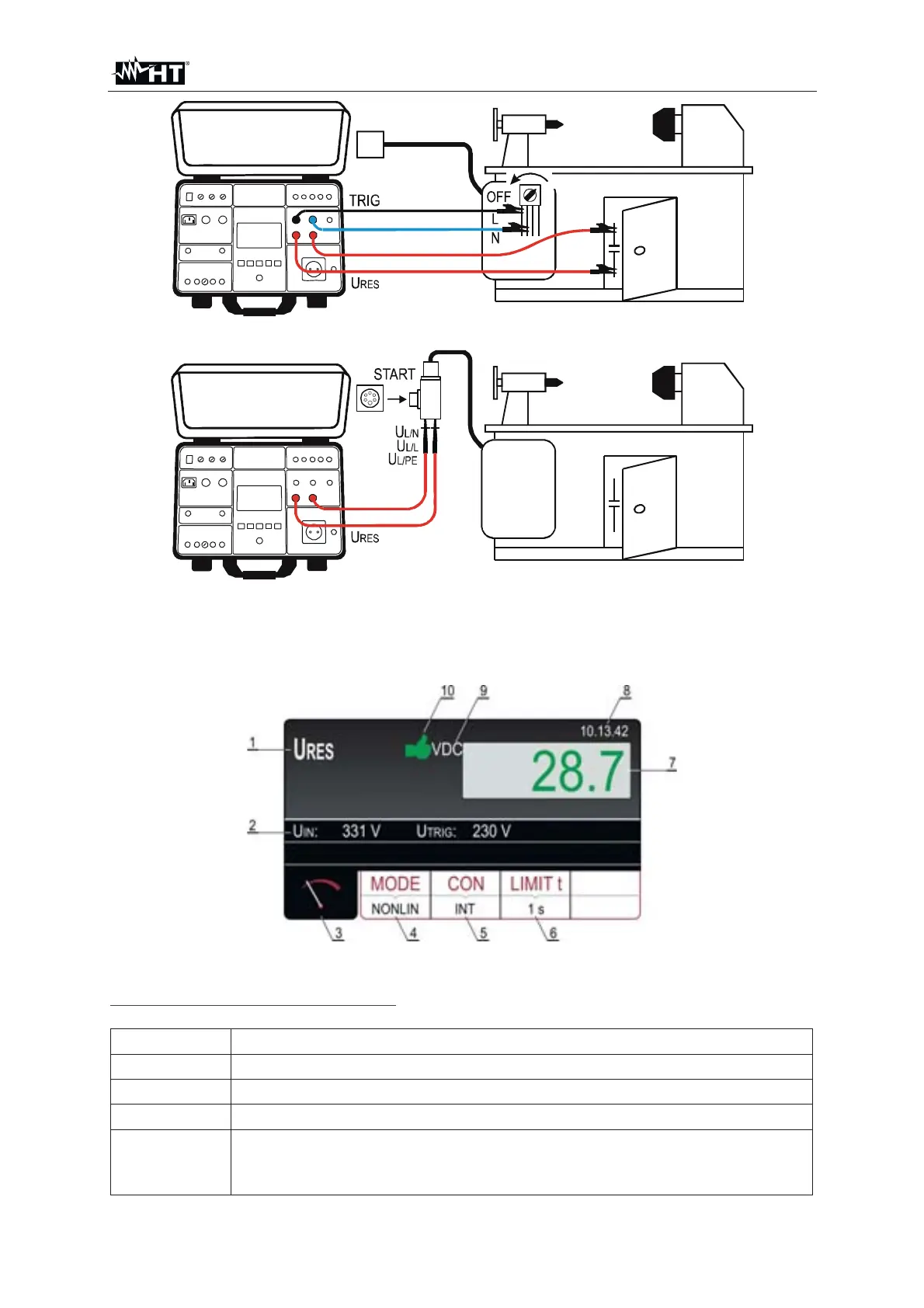

Fig. 59 : Connection for U
RES INT measurement on fixed connected machines
t1 s
RES
<
Fig. 60 : Connection for U
RES PLUG measurement
8. READY, DISCONNECT UUT message will appear when UTRIG voltage within
required range 100V y 460VAC is present. Carry out the measurement by
disconnecting the UUT. The below screen is shown at display:
Fig. 61 : Visualization of URES test result
Meaning of symbols on the display
Item Description
1 Selected function
2 Input voltage UIN and trigger voltage UTRIG
3 Measurement screen touch-screen key
4
MODE touch-screen key to select measurement mode (LINEAR or
NONLINEAR). Currently selected mode is displayed on the bottom of
the key
