Step 4 On the home screen of any teamwork controlled smart cooling product, tap .
If the teamwork control succeeds, the teamwork topology of the smart cooling
product in the group is displayed, as shown in Figure 6-12. Table 6-8 describes
the note for the screen.

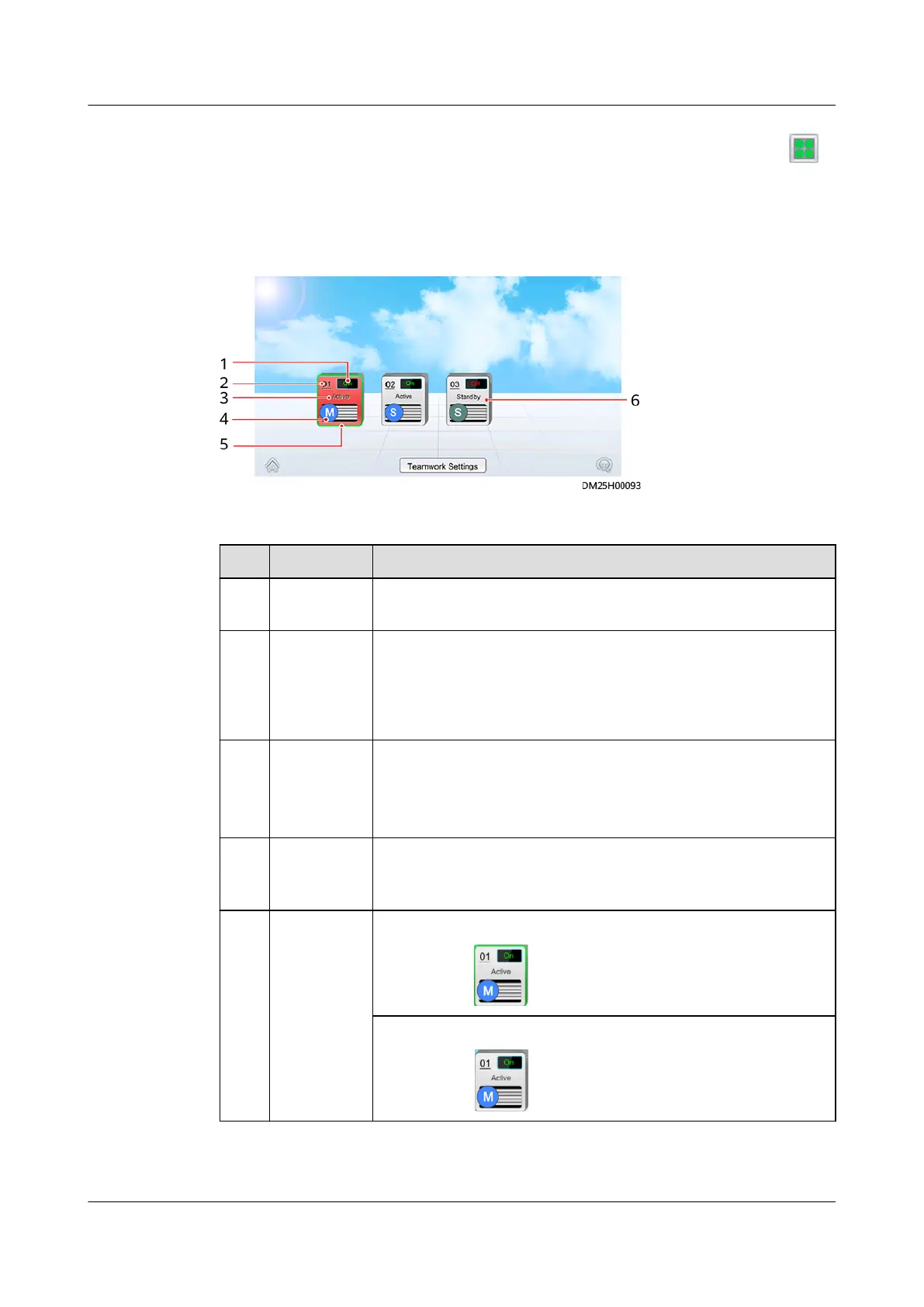

Figure 6-12 Teamwork topology
Table 6-8 Notes for the screen
No. Item Note
1 On/O On indicates that the smart cooling product is started and
O indicates that the smart cooling product is shut down.
2 01, 02, 03 Indicates the device address. The minimum address is the
master one and the rest are all slave ones.
NOTE
If the master one is oine, the online device with the smallest
address is selected to be the new master.
3 Active/
Standby
Active: properly responds to the requirement control.
Standby: responds to the requirement control when active
one is faulty (critical alarms, shutdown, and oine) or
cannot meet cooling requirements.
4 M/S M indicates the master unit, and S indicates a slave unit.
Blue indicates that the device is operating, and gray
indicates that the device is idle.
5 Frame:
green/non-
green
A device with green frame indicates the device itself,
as shown in .
A non-green frame indicates the other device in the group,
as shown in .
NetCol5000-A050 In-row Air Cooled Smart Cooling
Product
User Manual 6 Power-On Commissioning
Issue 08 (2021-09-17) Copyright © Huawei Technologies Co., Ltd. 148
