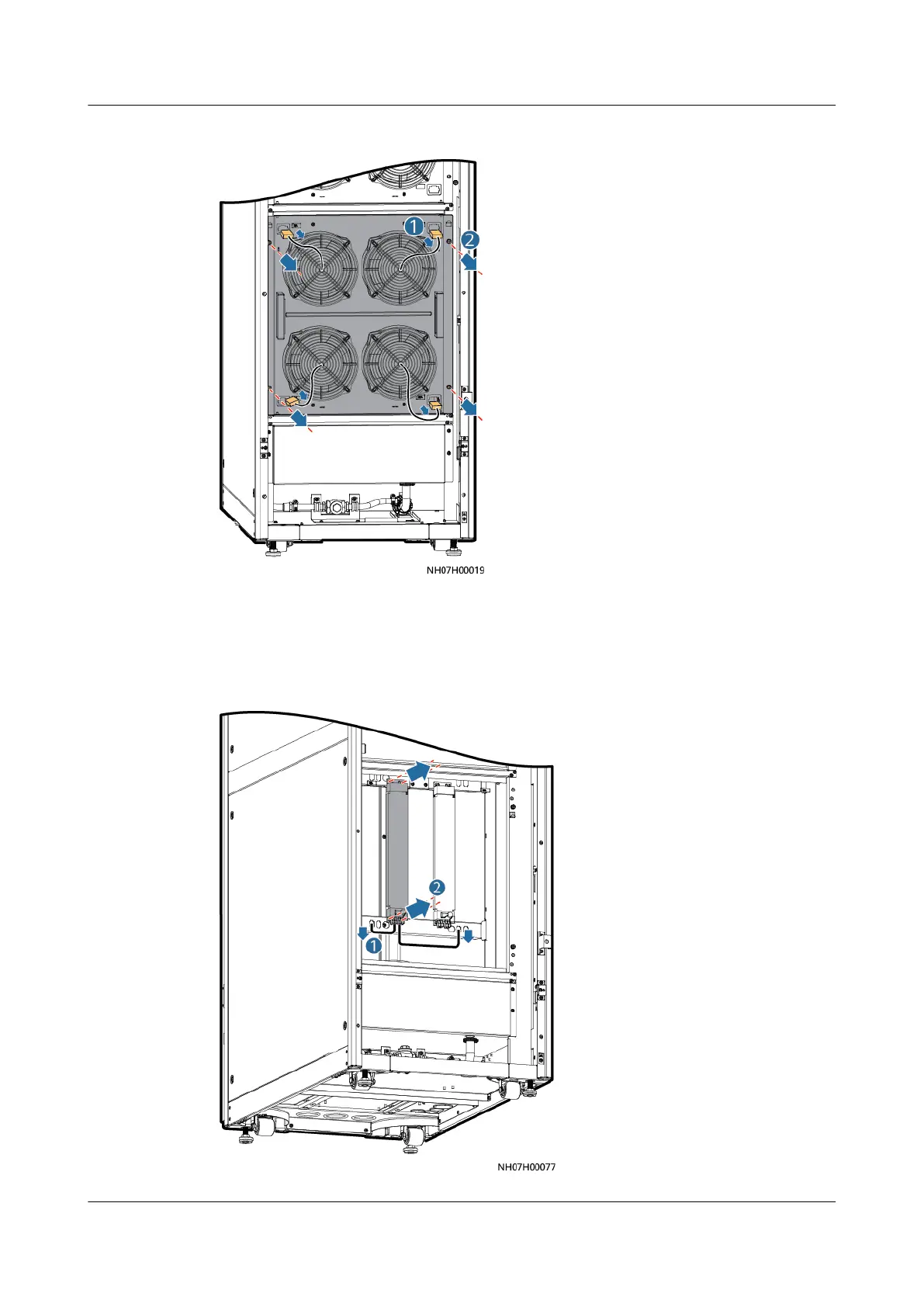

Figure 11-46 Removing a fan support
Step 3 Cut the cable ties that secure the electric heater terminal and remove the
terminals.
Step 4 Unscrew the four screws on the single electric heater, as shown in Figure 11-47.
Figure 11-47 Removing an electric heater
NetCol5000-A050 In-row Air Cooled Smart Cooling
Product
User Manual 11 Parts Replacement
Issue 08 (2021-09-17) Copyright © Huawei Technologies Co., Ltd. 289
