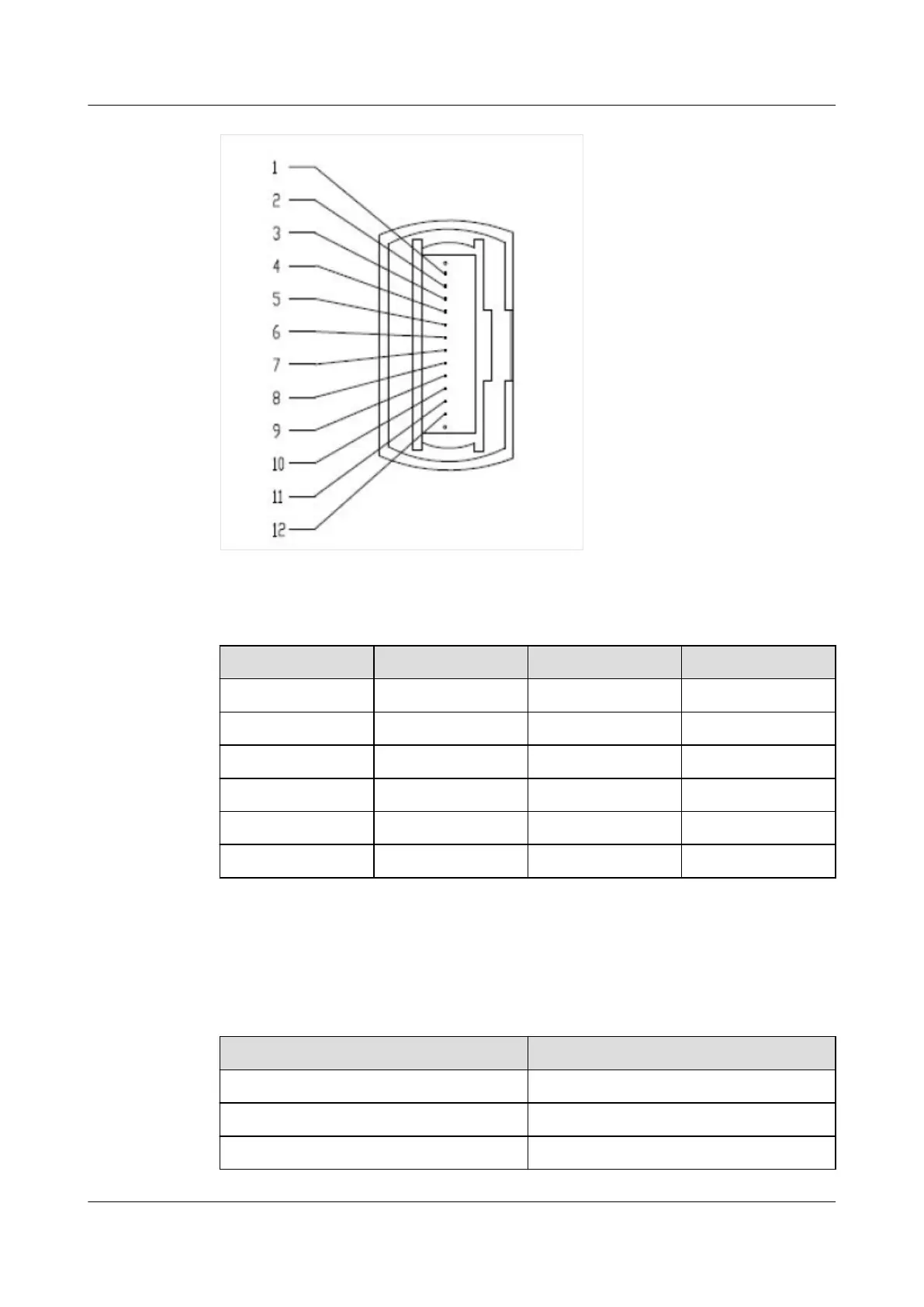

Table 3-255 describes the mappings between the lanes of the X1 and X2 ports.
Table 3-255 Mappings between the lanes of the X1 and X2 ports
Start
End Start End
X1-1 X2-12 X1-7 /
X1-2 X2-11 X1-8 /
X1-3 X2-10 X1-9 X2-4
X1-4 X2-9 X1-10 X2-3
X1-5 / X1-11 X2-2
X1-6 / X1-12 X2-1
Technical Specications
Table 3-256 Technical specications of the 10-Port-MPO-12-40-Port-LC-Breakout
Box (single-mode)
Item
Description
BOM Number 02082890
Ocial Name ODBS10040
Dimensions (H x W x D) 43.6 mm x 442 mm x 164 mm
HUAWEI NetEngine 8000 F
Hardware Guide 3 Hardware Description
Issue 05 (2023-03-31) Copyright © Huawei Technologies Co., Ltd. 344

Huawei NetEngine 8000 F Specifications
