● When you strip a power cable, do not damage the conductor of the cable.
● If the bare crimping terminal is not provided by Huawei, you can adjust the
value of L as required
Table 4-20 Mapping between the cross-sectional area of the conductor and
the value of L
Cross-Sectional Area of Conductor
(mm
2
(in.
2
))
Value of L (mm (in.))
16 (0.025) 13 (0.51)
25 (0.039) 14 (0.55)
35 (0.054) 16 (0.63)
2. Put the heat shrink tubing onto the bare crimping terminal, as shown in
Figure 4-90.

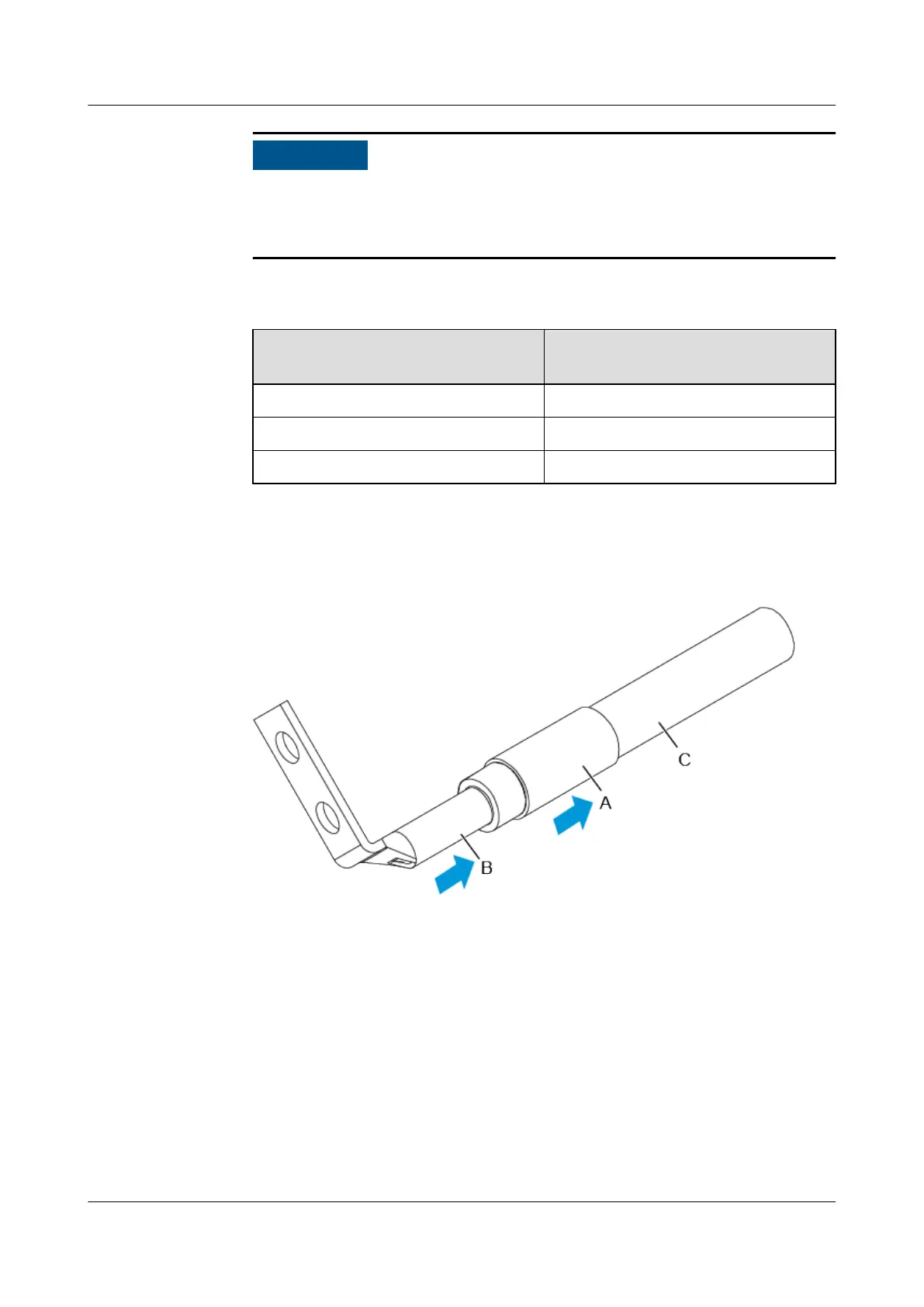

Figure 4-90 Putting the heat shrink tubing onto the bare crimping terminal
3. Put the bare crimping terminal onto the exposed conductor, and ensure that
the bare crimping terminal is in good contact with the insulation of the power
cable, as shown in Figure 4-90.
4. Crimp the joint parts of the bare crimping terminal and the conductor, as
shown in Figure 4-91.
HUAWEI NetEngine 8000 F
Hardware Guide 4 Hardware Installation and Parts Replacement
Issue 05 (2023-03-31) Copyright © Huawei Technologies Co., Ltd. 450
