Procedure
Step 1 Place the cabinet stand in the planned position.
Step 2 Mark the mounting hole positions, as shown in Figure 4-198.

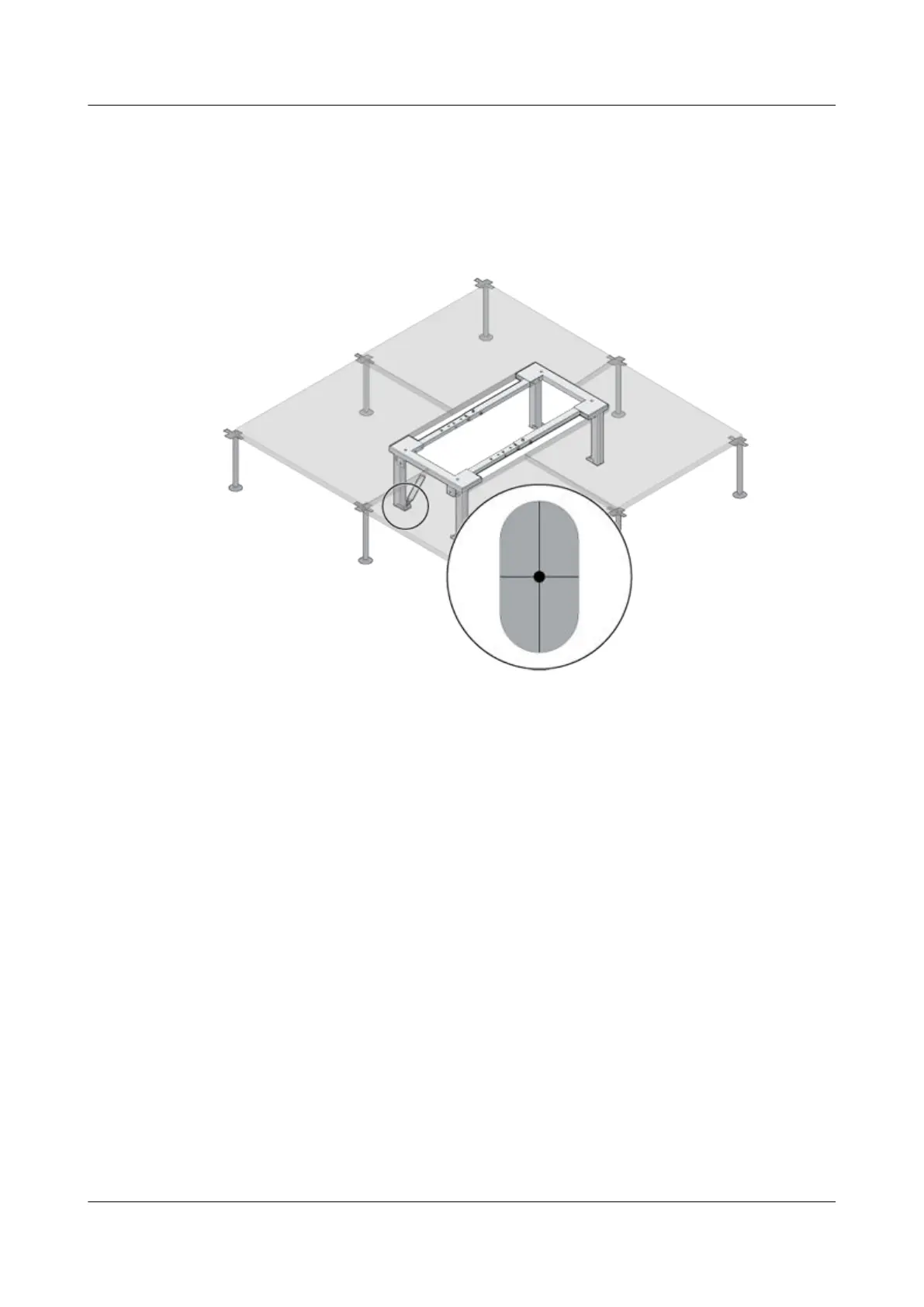

Figure 4-198 Positioning a single cabinet stand
----End
?.2. Positioning Cabinet Stands Side by Side (for Installation of Two or More
Cabinets)
Procedure
Step 1 Use plumb lines to position the rst cabinet stand. Ensure that the outline of the
stand is in alignment with the cabinet outline drawn on the
oor, as shown in
Figure 4-199.
HUAWEI NetEngine 8000 F
Hardware Guide 4 Hardware Installation and Parts Replacement
Issue 05 (2023-03-31) Copyright © Huawei Technologies Co., Ltd. 539
