Determine the size of characters based on the number of letters or digits and
ensure that the characters are distinct and tidy.
Placement of text on a label is shown in Figure 4-379.
Figure 4-379 Placement of text on a label
Attaching Labels
After printing or writing the label, remove the label from the page and attach it to
the signal cable, or the identication plate of the power cable. The methods for
attaching labels are described in the following sections.
Label for Signal Cables
● Choose the place to attach labels.
The label is attached 2 cm (0.79 in.) from the connector on a signal cable. In
special cases (for example, to avoid cable bending or
aecting other cables),
other positions are allowed to attach the labels. The rectangular part with
text is attached facing right or downward, as shown in Figure 4-380. The
details are as follows:
– The
identication card is to the right of the cable in vertical cabling.
– The
identication card should be downward when you lay out the cable
horizontally.

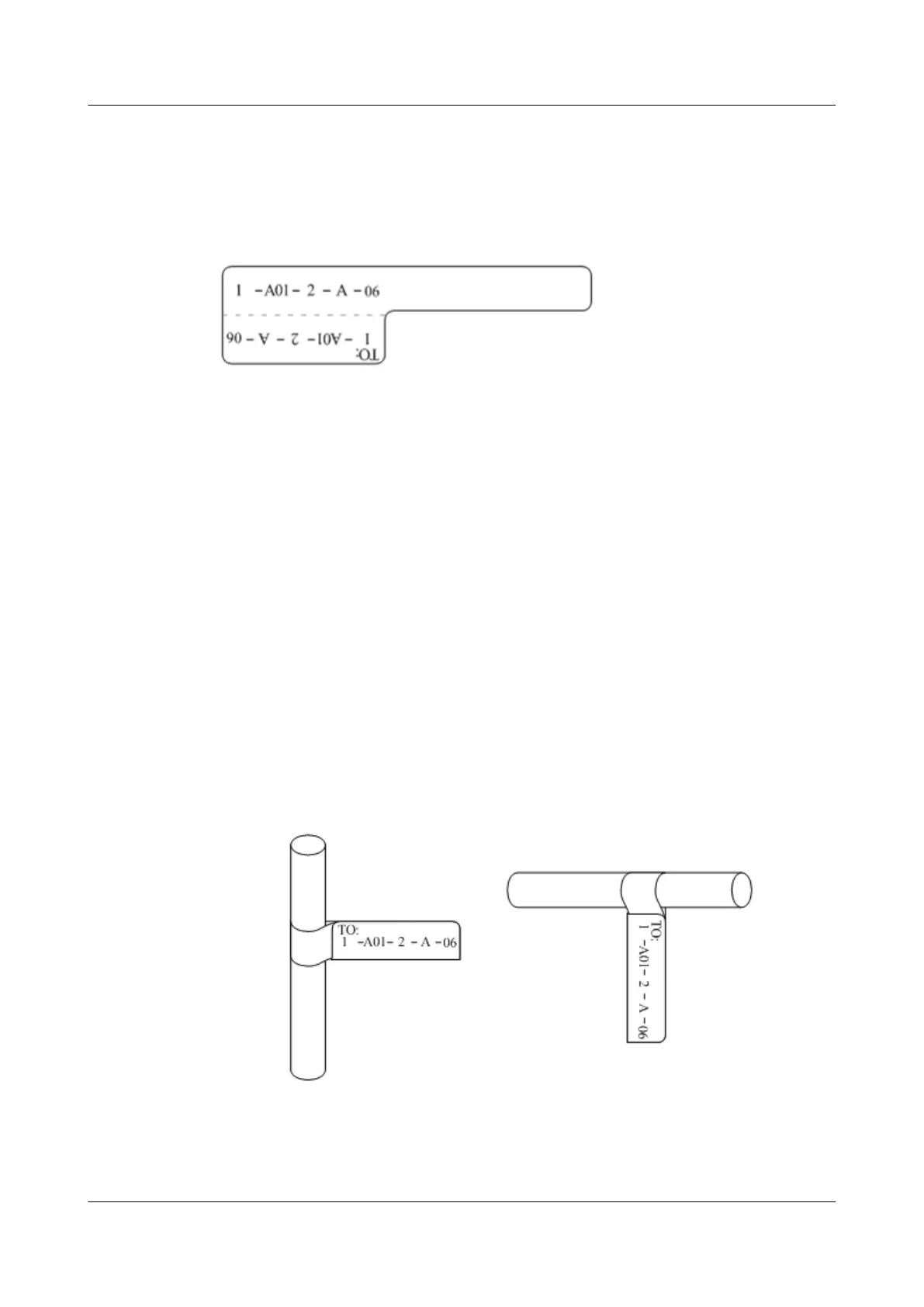

Figure 4-380 Text area of the label
● Procedure for attaching labels
Figure 4-381 shows the methods and procedures for attaching labels.
HUAWEI NetEngine 8000 F
Hardware Guide 4 Hardware Installation and Parts Replacement
Issue 05 (2023-03-31) Copyright © Huawei Technologies Co., Ltd. 707
To Next Page
