Permit indicates switch forwarding packets which match with the
rule.
‟Deny‟ indicates switch dropping packets which does not match
with the rule.
Display the field viewed by the rule.
Display effective time of the ACL rule, if no effective time is
specified, and then it takes effect with a rule and applies it to
interface or VLAN time range.
Create an ACL Entry
Step 1 Click ACL>ACL Profile.

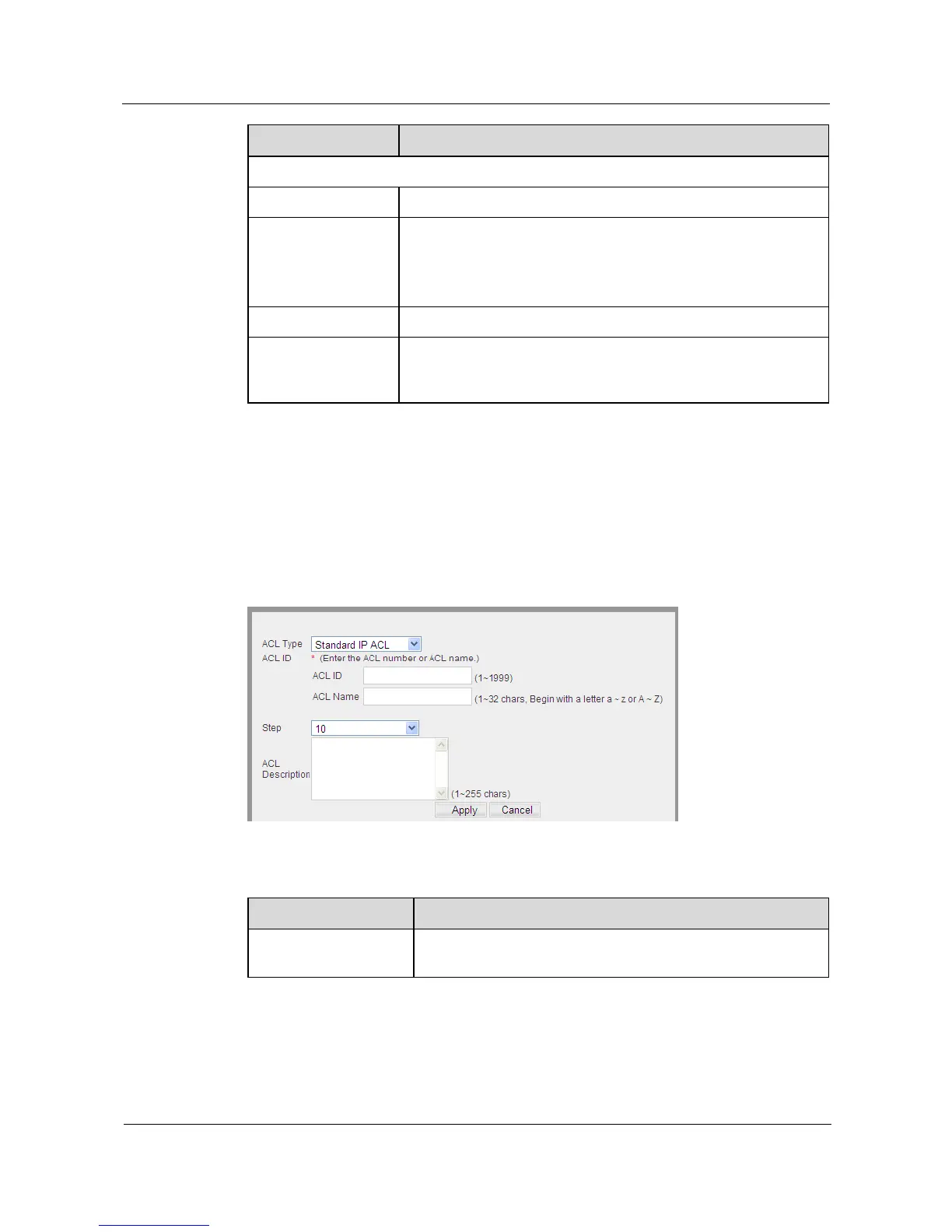

Step 2 Click New button to add a new ACL entry, opening the configuration page shown as the
figure below.
Figure 6-4 Edit ACL Profile
Table 6-4 Parameters of Editing ACL Profile
Select the matching types for ACL entry: Standard IP, Extended
IP, Extended IPv6, Extended MAC or User-defined.
