Huawei S1700 Series Web User Manual

S1700 Managed Series Ethernet Switches
Web User Manual
6 ACL Configuration
Issue 05 (2012-10-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
94
Table 6-10 Parameters of Interface Application
Item
Description
Interface Name
Displays the interface name of switch.
Ingress ACL
ACL number applied on interface.
ACL Rules Applied on Interface
Step 1 Click ACL>ACL Application> Interface Application.
Step 2 Click the Edit icon on the right of interface to be configured interface application, opening the
configuration page shown as the figure below.

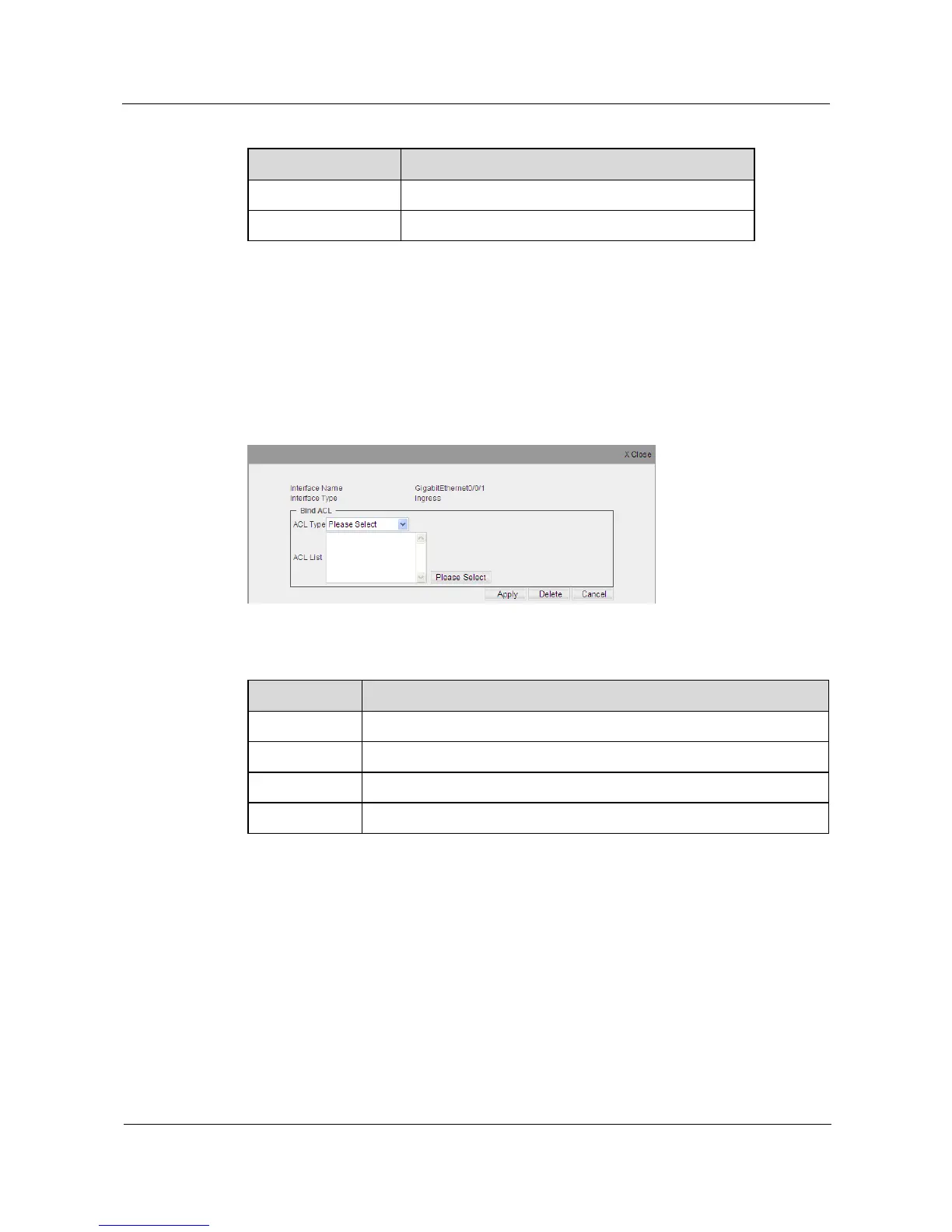

Figure 6-12 Edit Interface Application
Table 6-11 Parameters of Editing Interface Application
Item
Description
Interface Name
Displays the interface name of switch.
Interface Type
Display the ACL data direction applied by interface. Here is the „Ingress„
ACL Type
Select ACL type applied by interface.
ACL List
Select specific ACL ID that the interface applied to.
Step 3 Configure the needed parameter
Step 4 Click Apply button to apply all the changes below.
----End
6.3.2 VLAN Application
Click ACL>ACL Application>VLAN Application to apply rules to specified VLAN; the
configuration page is shown as the figure below.
