Husky Altanium Matrix5 User Manual

Remove and Replace the Touch Monitor 209
User Guide v 1.0 — February 2020 Maintenance
9. Use a 4 mm right angle Allen key or hex wrench to loosen, but do not remove, the two
top socket cap screws from the retaining plate that secures the touch monitor to the
pedestal. Refer to number 6 in Figure 15-15.
10. Securely hold the touch monitor and slide it up until the screws have cleared the upper
mounting slots and pull forward to remove the touch monitor from the mounting
bracket. Refer to number 7 in Figure 15-16.

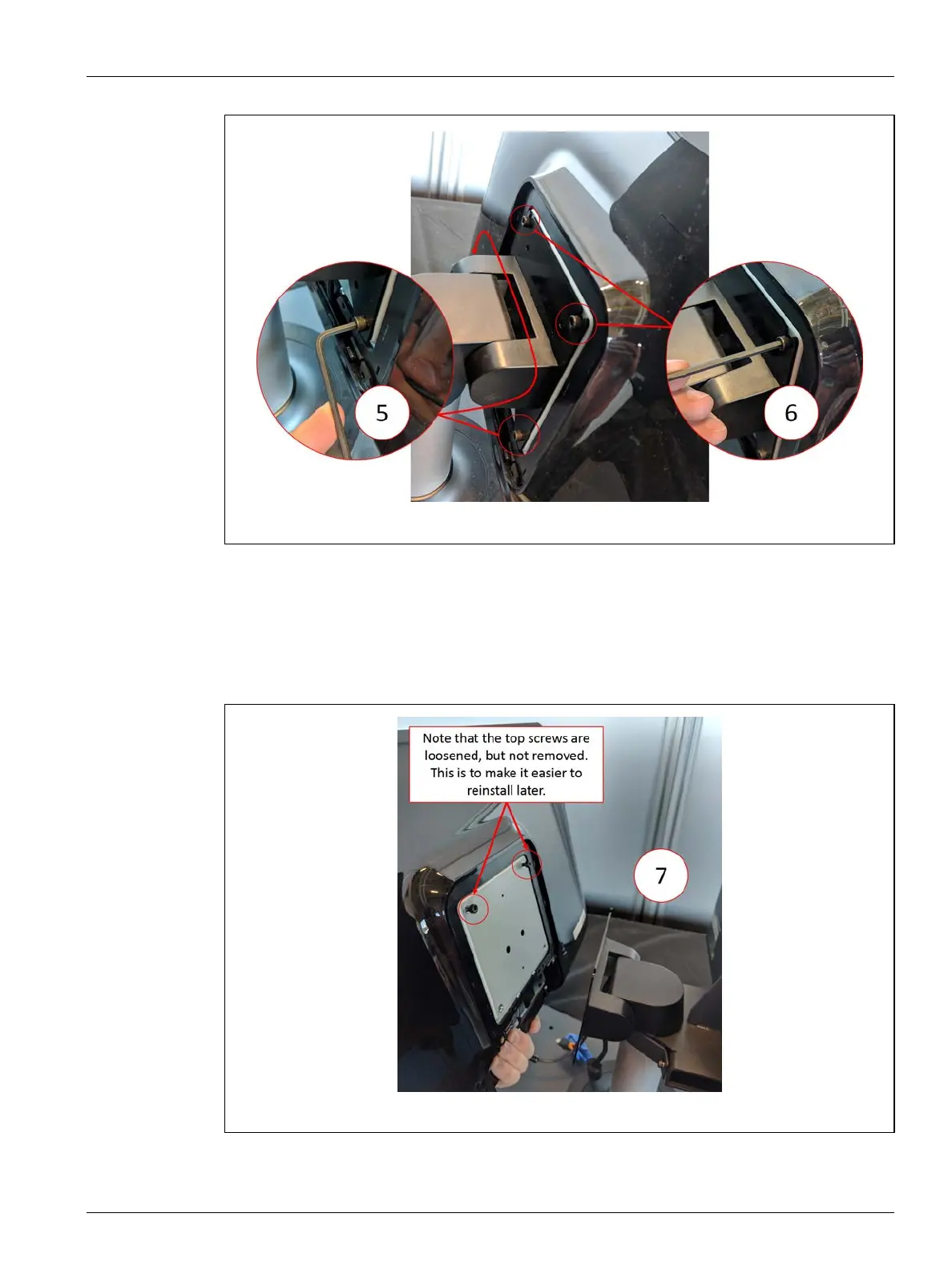

Figure 15-15 Removal of the Monitor Screws
Figure 15-16 Lift Monitor from Bracket
