v 1.0 — February 2020 Altanium Matrix5
208 Remove and Replace the Touch Monitor
7. After the cables are clear of the retaining bar, disconnect the Power, Video (this
connector is held in by screws and may require a small slotted screwdriver for removal)
and Touchscreen connectors. Refer to number 4 in Figure 15-14.
8. Use a 4 mm right angle Allen key or hex wrench to remove the two bottom socket cap
screws from the retaining plate that secures the touch monitor to the pedestal. Refer to
number 5 in Figure 15-15.

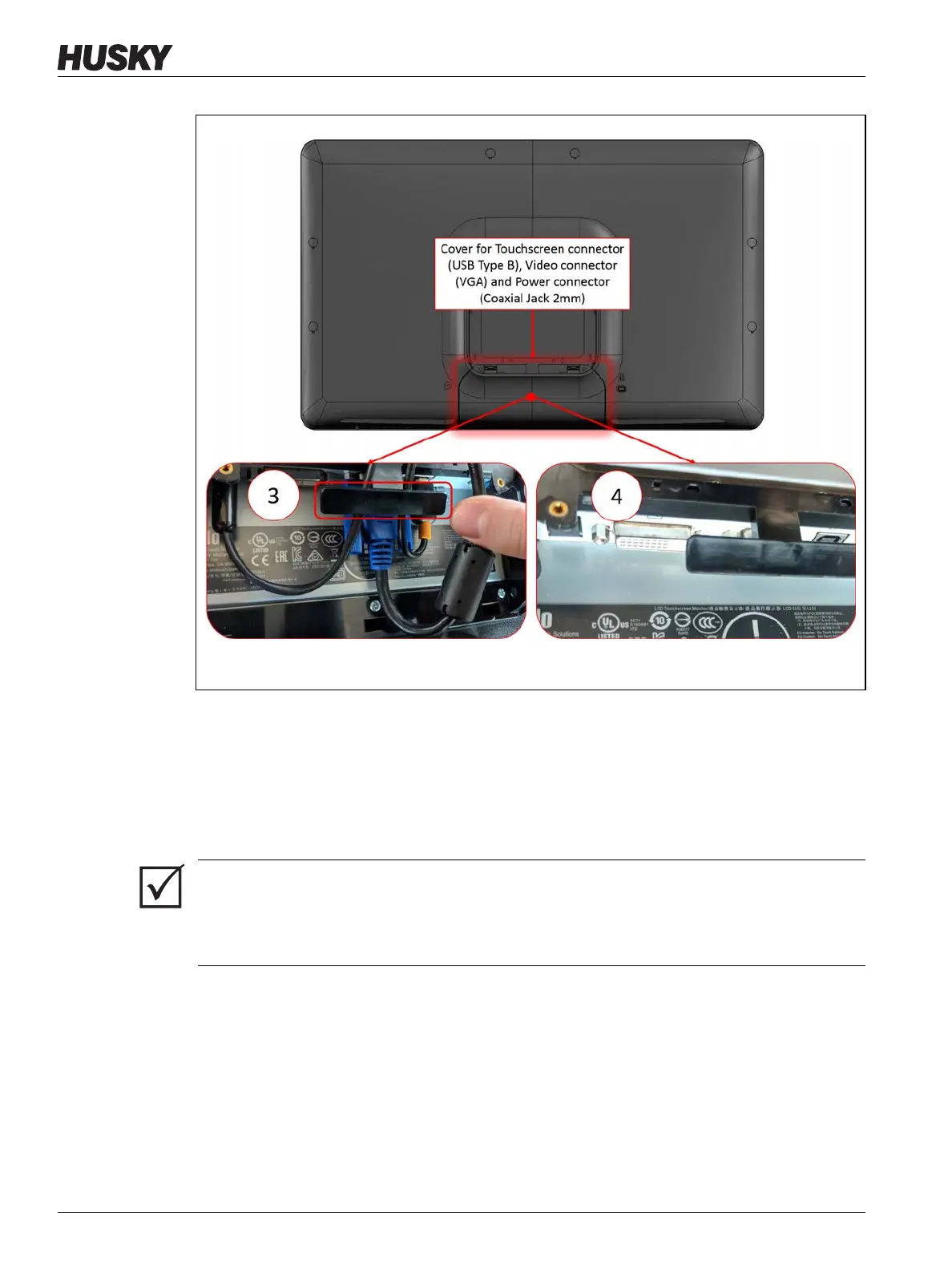

Figure 15-14 Retaining Bar and Cable Removal
IMPORTANT!
Only loosen the top fasteners. The top mounting holes in the bracket holding the touch
monitor are slotted and allow the monitor to be removed without removing the top
fasteners completely.
