Remove and Replace the MCU 211
User Guide v 1.0 — February 2020 Maintenance
5. Find the two lower screws that hold the MCU to the mounting bracket and completely
remove them with a 4 mm right angle Allen key or hex wrench. Refer to Figure 15-18.

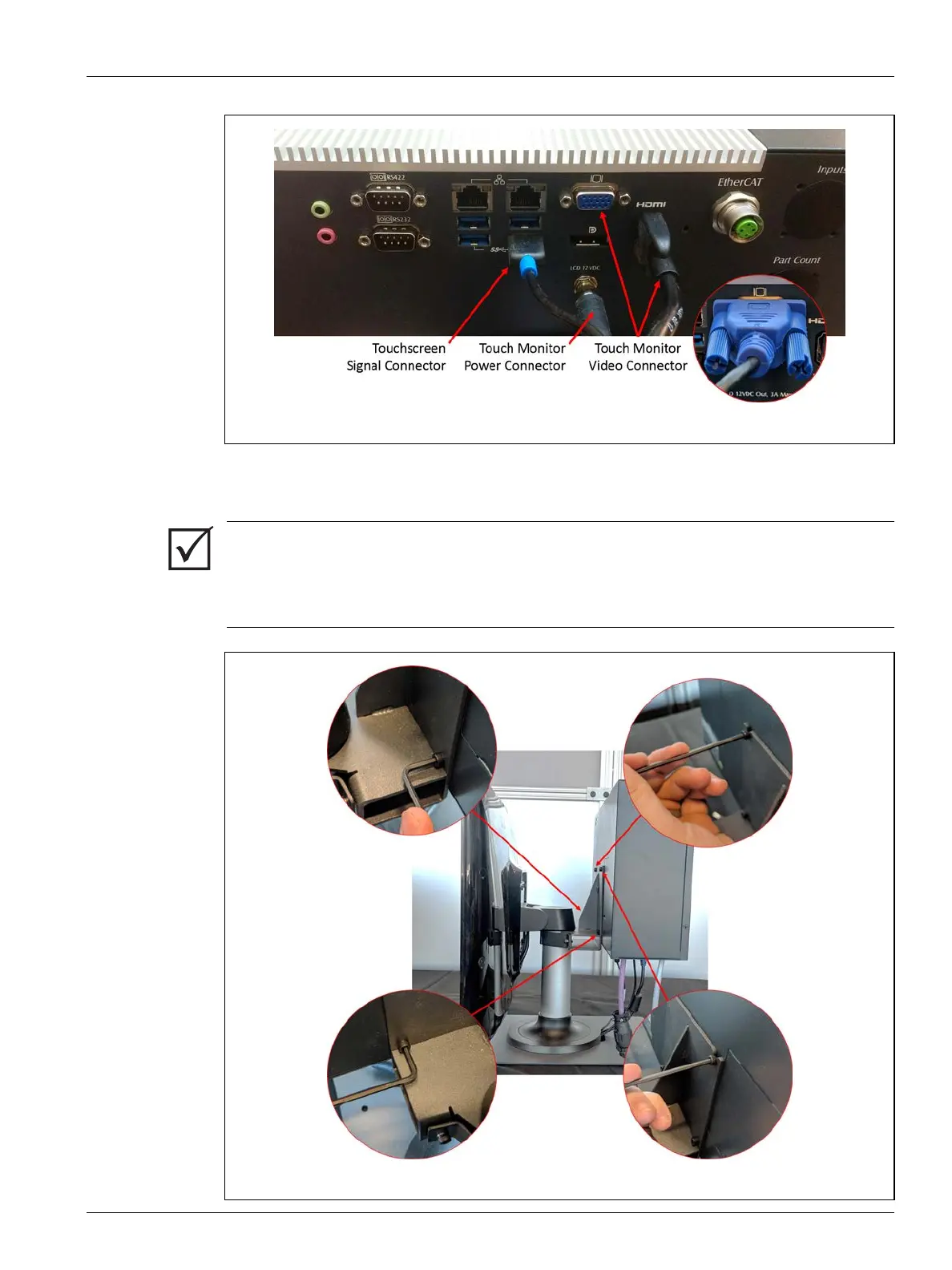

Figure 15-17 MCU Cable Connections
IMPORTANT!
Only loosen the top fasteners. The top mounting holes in the bracket holding the touch
monitor are slotted and allow the monitor to be removed without removing the top
fasteners completely.
Figure 15-18 MCU Screw Removal
To Next Page
