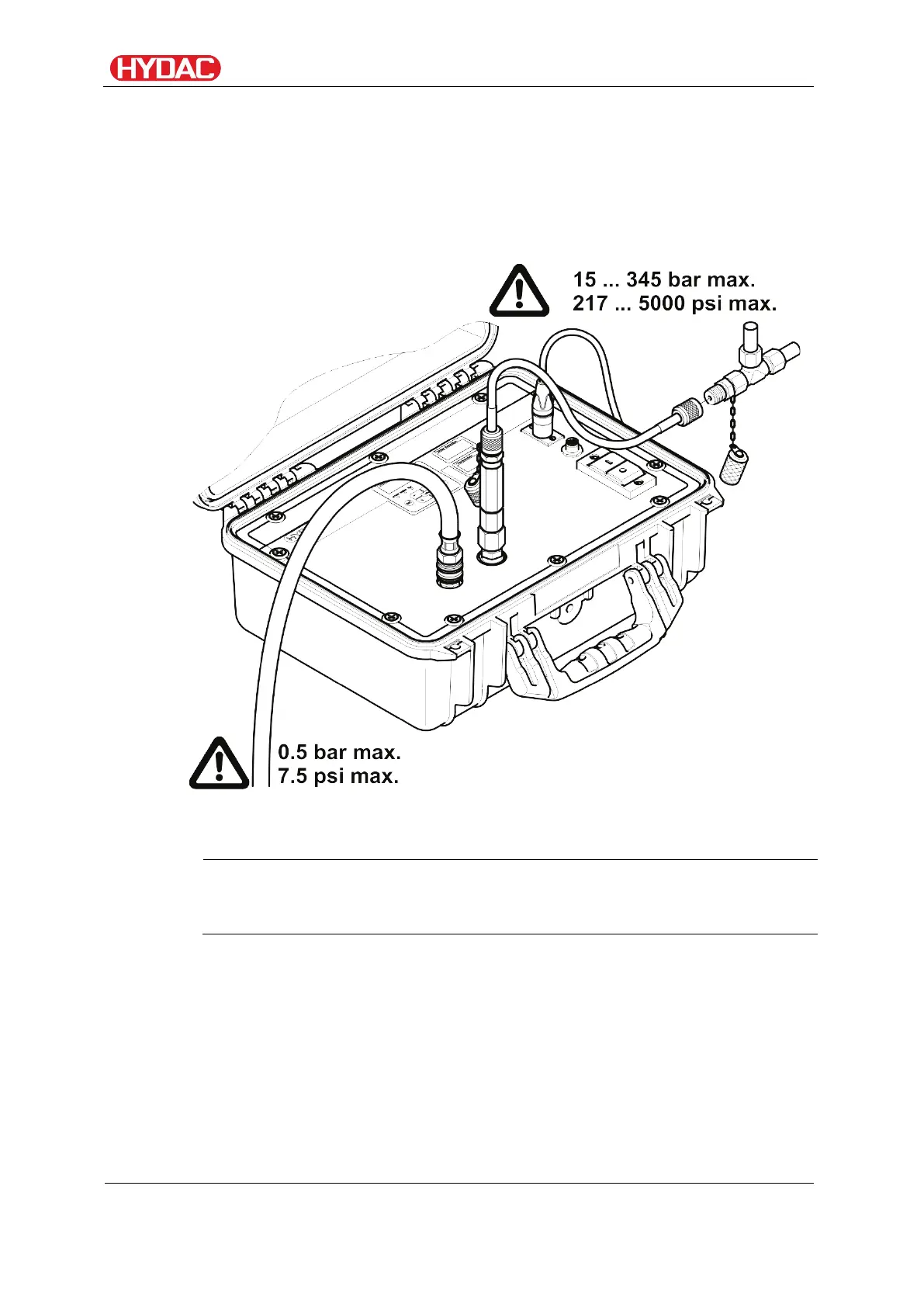

Preparing the FCU for measurement

Required hoses / adapters:

Return hose

High-pressure adapter

High-pressure hose

Make sure that the following sequence is observed:

Go through the steps in chapter

"Preparing the FCU for

measurement“ on pages 36 to 39.

FCU1310

en(us)

Page 44 / 124

BeWa FCU1310 V300 3371346f en-us 2017-01-27.docx 2017-01-27
