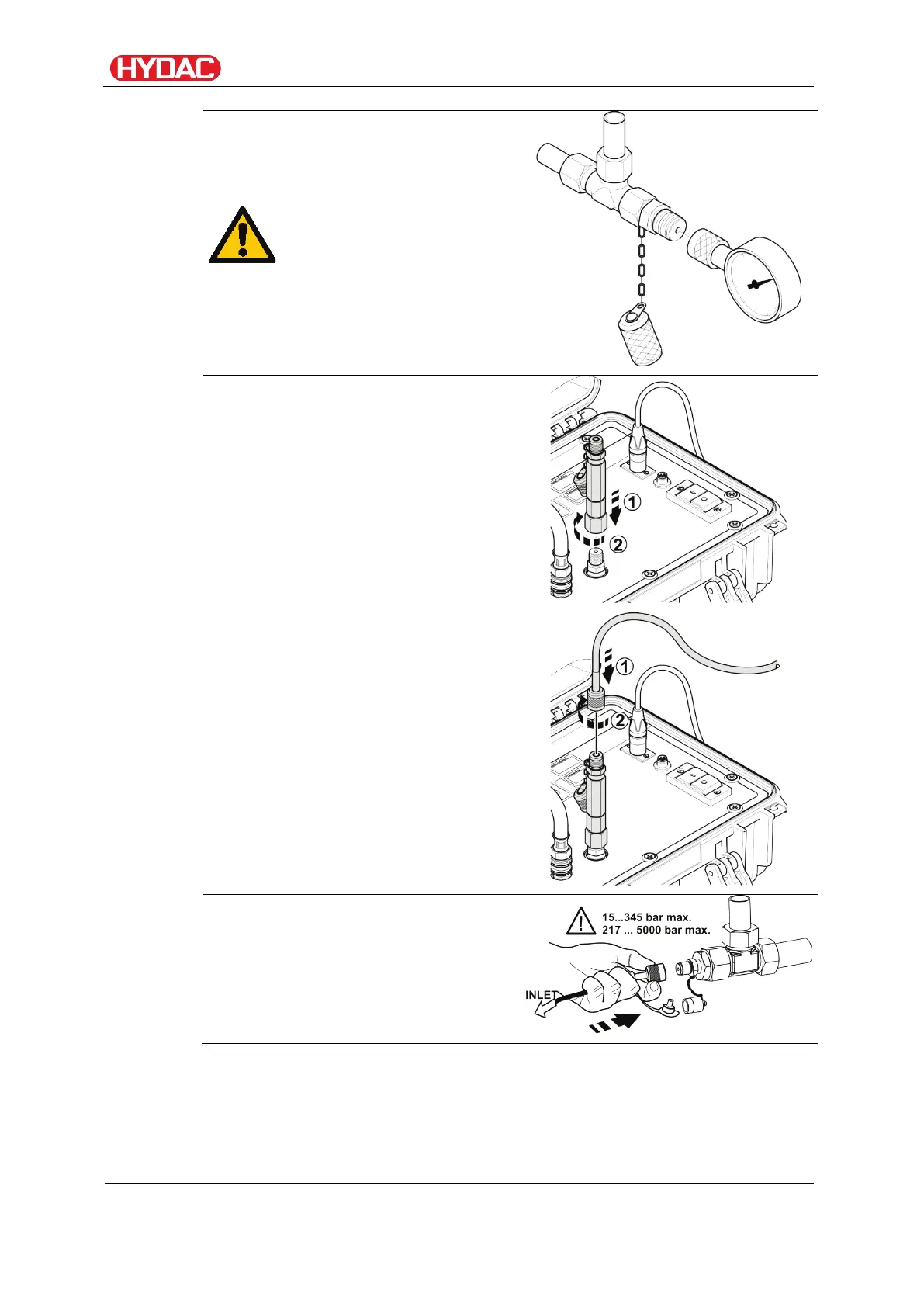

Preparing the FCU for measurement
2.
Check the pressure at the
measurement location. The pressure
there must be in the range from 15 -
345 bar / 217 - 5000 psi.
If the pressure is greater
than 345 bar / 5000 psi, please
cancel the process. Look for a
different measurement point.
3.
Screw the high-pressure adapter
onto the INLET connection of the
FCU
4.
Connect the high pressure hose to
the high pressure adaptor.
5.
Connect the other end of the high
pressure hose to the measurement
point of the hydraulic system.
