Hydro Mobile F200 - List of Components Included with Shipped Unit; Toolbox Components

11
fi g. 1.2
fi g. 1.3
fi g. 1.6
fi g. 1.7
fi g. 1.8
fi g. 1.4
fi g. 1.5
1 - M U
List of components
List of components
included with shipped unit
included with shipped unit
Qty Component
1
F2 Series motorized unit (gas-powered or electrical)
(model F200 or F300)
1 base
2
base extensions
(left and right)
1 mast section
2 mast guards
1 mast head
2 link bridge guardrails
2
link bridge doors
(model F300 only)
1
communication cable
(model F300 only) (A0500603-0021)
1 or 2
(according to
unit model)
support for fi re extinguisher
1x for F200 model
2x for F300 model
1 60" (1,5 m) guardrail
2 27" (69 cm) guardrails
6 guardrail adapter brackets
1 door guardrail
4 63" (1,6 m) outriggers
Note
The list of components included with each motorized unit
shipped may change without notice.

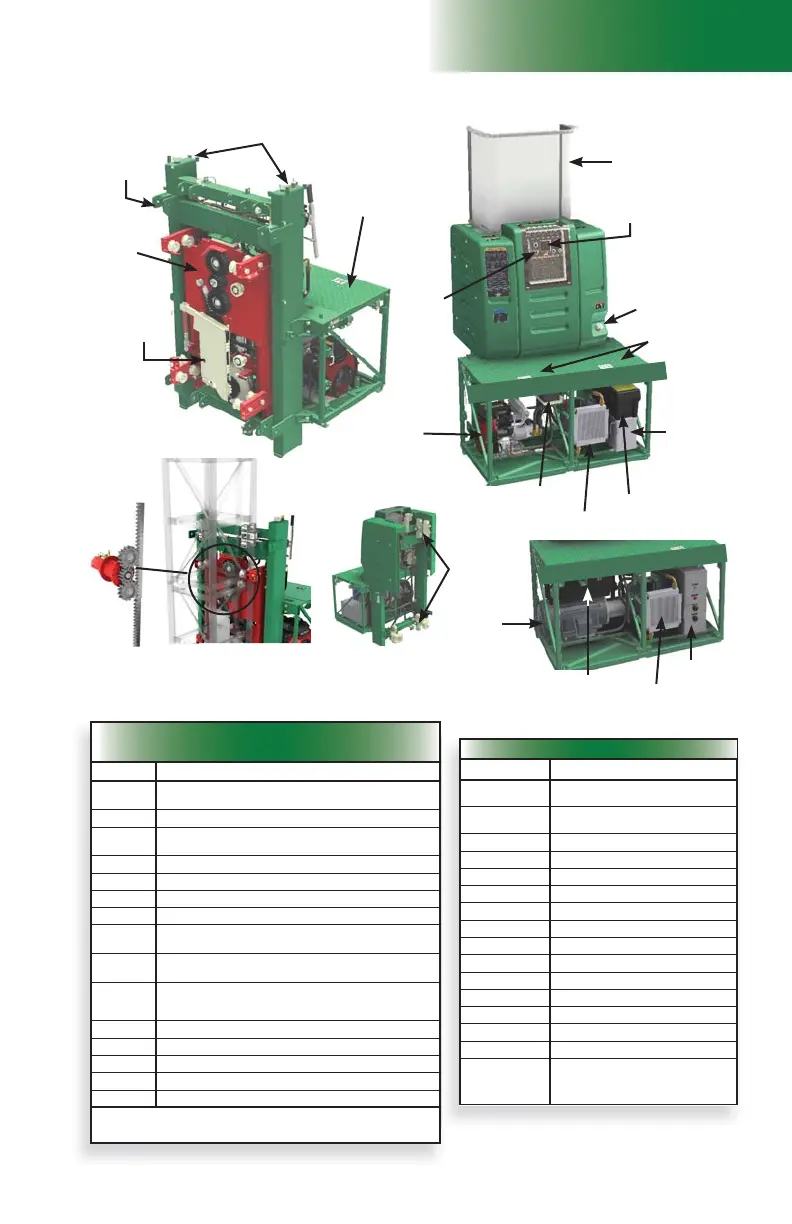

Motorized Unit Overview
Gasoline
tank fi ller
cap
Engine
controls
Display screen
Engine
Motor
Power box
Gas tank
Oil cooler
Oil cooler
Battery
Mast guard
Main
frame
Main
trolley
Power
train
Overspeed
safety
device
Toolbox
Toolbox
Access
panels
Lifting mechanism
Hydraulic tank tubes
Guide
rollers
Toolbox Components
Toolbox Components
Quantity Description
2
12.5-oz (370 ml) aerosol cans
of grease for rack and pinion
2
bridge installation support
brackets
1 Owner’s manual
1 Honda engine manual
1 pressure gauge (3000 psi)
1 mast shim
1 15/16" wrench
3 5/8" x 1 1/2" SAE bolts GR5
3 5/8" SAE GR5 square nuts
6 5/8" x 5 1/2” SAE bolts GR8
6 5/8" SAE GR8 nuts
6 5/8" SAE lock washers GR8
3 3/8" SAE toggle pins
3 1/8" x 2 5/8" hitch pin clips
3 plank stop pins
1 or 2
(according to
unit model)
cable grip support kit (electrical unit
only)
1x for F200 model
2x for F300 model
Gas-powered motorized unit
Electrical motorized unit
