Hydro Mobile F200 - Restriction of Equipment and Accessories Allowed on each Cantilever Side of an Unlinked Confi Guration (Single or Multiple Units); Restriction of Equipment and Accessories Allowed on each Bearing Bridge of an Unlinked Confi Guration

18
fi g. 1.26
fi g. 1.29
fi g. 1.27
fi g. 1.28
1 - M U
General Guidelines
Setup and Confi gurations
Unlinked confi gurations
Single unit
Multiple units
fi
g
. 1.2
8

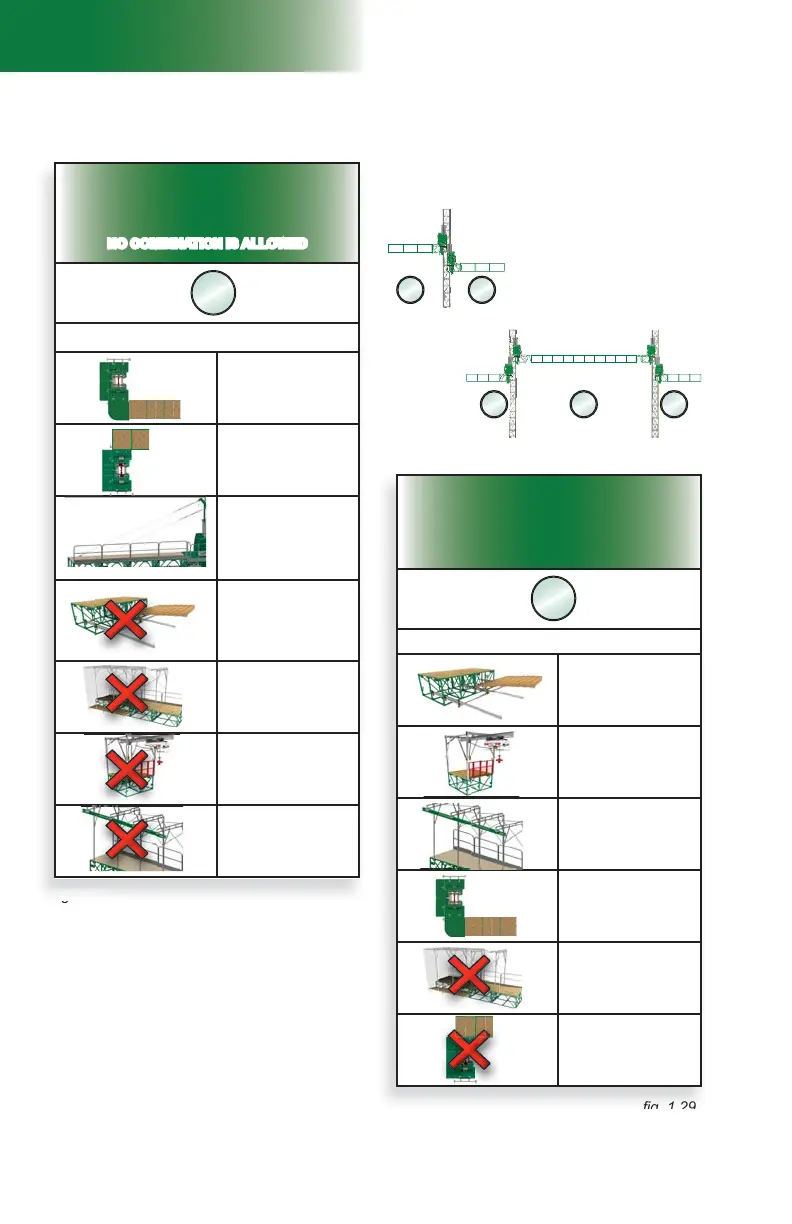

Equipment and accessories allowed or
Equipment and accessories allowed or
restricted on any cantilever side of an
restricted on any cantilever side of an
UNLINKED CONFIGURATION
UNLINKED CONFIGURATION
(single unit or multiple units)
(single unit or multiple units)
NO COMBINATION IS ALLOWED
Additional equipment and accessories allowed
(only one per cantilever side)
Swivel bridge
Refer to appropriate
diagram in the Load
Capacities section, starting
on p. 94
Forward extension
Refer to appropriate
diagram in the Load
Capacities section, starting
on p. 94
Cantilever
reinforcement cable
retainer
Refer to appropriate
diagram in the Load
Capacities section, starting
on p. 94
4 TO 8 PLANK
CONFIGURATION IS
NOT ALLOWED
WEATHER
PROTECTION IS NOT
ALLOWED
A HOIST and its
STRUCTURE ARE
NOT ALLOWED
A MONORAIL IS NOT
ALLOWED
fig129
Equipment and accessories allowed or
Equipment and accessories allowed or
restricted on any bearing bridge of an
restricted on any bearing bridge of an
UNLINKED CONFIGURATION
UNLINKED CONFIGURATION
NO COMBINATION IS ALLOWED
NO COMBINATION IS ALLOWED
Additional equipment and accessories allowed
4 to 8 planks
Hoist
Refer to appropriate
diagram in the Load
Capacities section, starting
on p. 94
Monorail
Refer to appropriate
diagram in the Load
Capacities section, starting
on p. 94
Swivel bridge
Refer to appropriate
diagram in the Load
Capacities section, starting
on p. 94
WEATHER
PROTECTION IS NOT
ALLOWED
A FORWARD
EXTENSION IS NOT
ALLOWED
C B
B
C
C
C C
4 to 8
4 to 8
4
