Hydro Mobile F200 - Dimensions

15
fi g. 1.19
fi g. 1.20
1 - M U

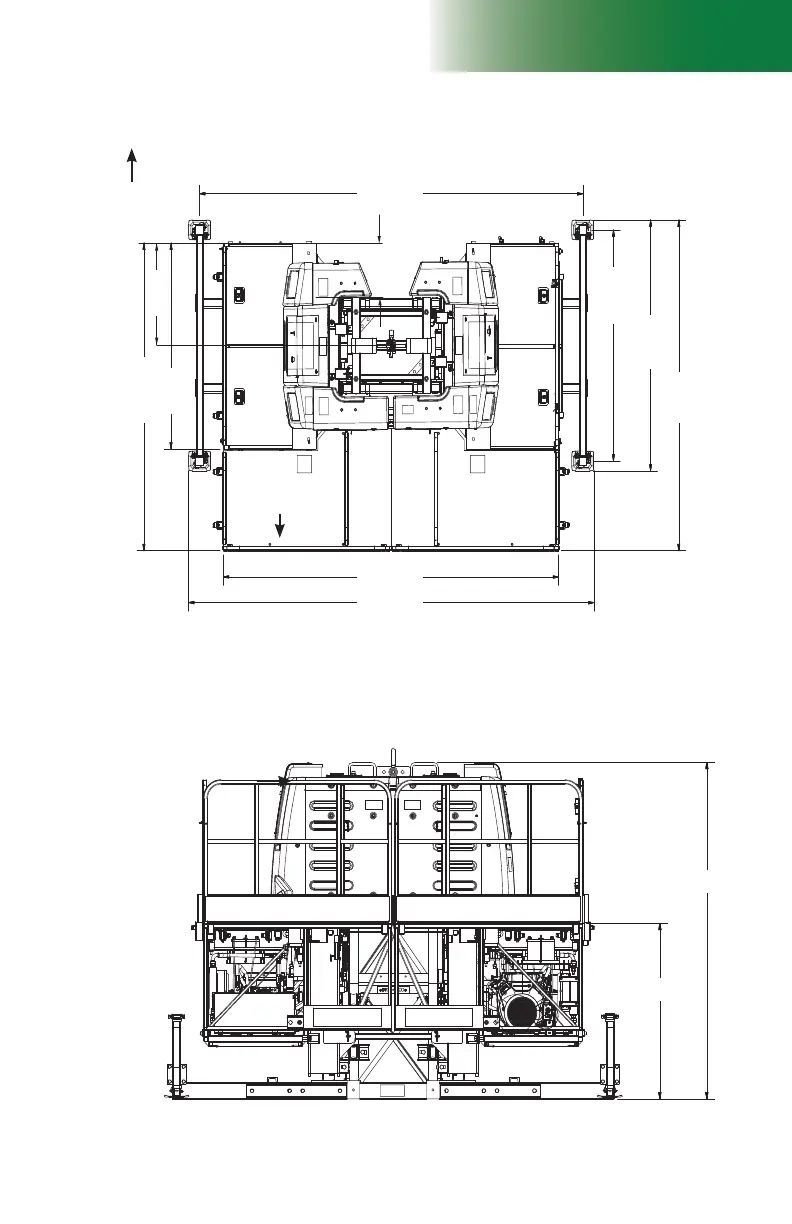

Dimensions of the Motorized Unit
Front
Back
To wall
62"
(157,5 cm)
30 13/16"
(78,3 cm)
121 13/16"
(309,4 cm)
75 1/2"
(191,8 cm)
139 1/4"
(352,7 cm)
16 9/16"
(42,1 cm)
Back
Link bridge
guardrail
147 1/4"
(374 cm)
101 3/8"
(257,5 cm)
52 7/8"
(134,3 cm)
99 1/2"
(252,7 cm)
92 5/8"
(235,1 cm)
Left Right
69 1/2"
(176,5 cm)
Note: Unit dimensions are the same for both types of unit, gas-powered or electrical
