Hydro Mobile F200 - Adapter Base for Sidewalk Canopy Installation; Installation of the Adapter Base; Minimum Bearing Surface Capacities for an Installation with a Sidewalk Canopy

126
fi g. 8.75
fi g. 8.76
fi g. 8.77
fi g. 8.78
fi g. 8.79
fi g. 8.81
fi g. 8.82
fi g. 8.83
fi g. 8.80
fi
fi
fi
fi
fi
fi
fi
fi
fi
fi
fi
8 - A

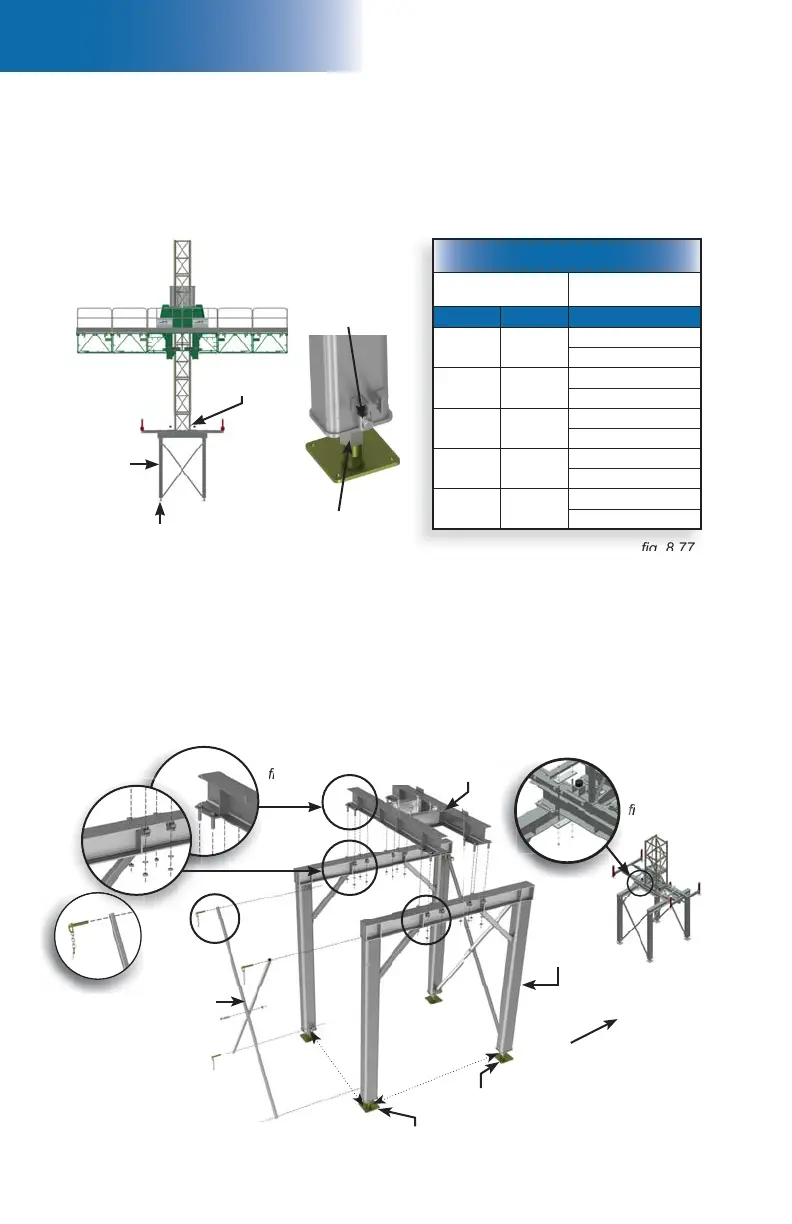

Adapter Base for Sidewalk Canopy Installation
(optional)
The optional adapter base for sidewalk canopy installation is used to install an F2 Series
motorized unit at 10' (3 m) above the bearing surface, as part of a sidewalk canopy
installation. The adapter base for sidewalk canopy installation can be used in any single or
multiple units F2 Series confi guration with mast ties. An F2 Series confi guration using an
adapter base for sidewalk canopy installation
must not be used on mast with a height
over 400' (152 m).
1- Installation must be carried out by qualifi ed erectors/dismantlers under the supervision
of a competent person, in accordance with all applicable local regulations.
2- In reference to the plan/layout drawing, make sure that all the components required are
available. Establish the position of the support frames, determine if there are obstacles
and what are the cribbing requirements. Before installing the support frames, determine
where the cribbing and the jacks will rest.
Installation of the adapter base
Adapter base
Support
frames
Screw jack
Screw jack (4)
Retaining bolt
DO NOT
OVERTIGHTEN
To face of
work
Adapter base
Rear jack
Front jack
Cross
brace
Support frame
Girder clamp
assembly
74" (1,9 m)
C/C
91" (2,3 m) C/C
fig877
Minimum Bearing Surface Capacities
Installation with a Sidewalk Canopy
Height
Load under each
screw jack
(ft) (m) Reaction
50 15,2
15 408 lb
6989 kg
100 30,5
17 280 lb
7838 kg
200 61
21 023 lb
9536 kg
300 91,4
24 766 lb
11 234 kg
400 121,9
28 509 lb
12 931 kg
