72
0
2
4
6
8
10
12
100
30,5
150
45,7
200
61
250
76,2
300
91,4
350
107
400
122
450
137,1
500
152,4
550
168
600
183
650
198,1
700
213,4
750
229
800
244
fi g. 4.18
fi g. 4.19
fi g. 4.20
4 - P P C
Electrical unit
Power Pack and Components

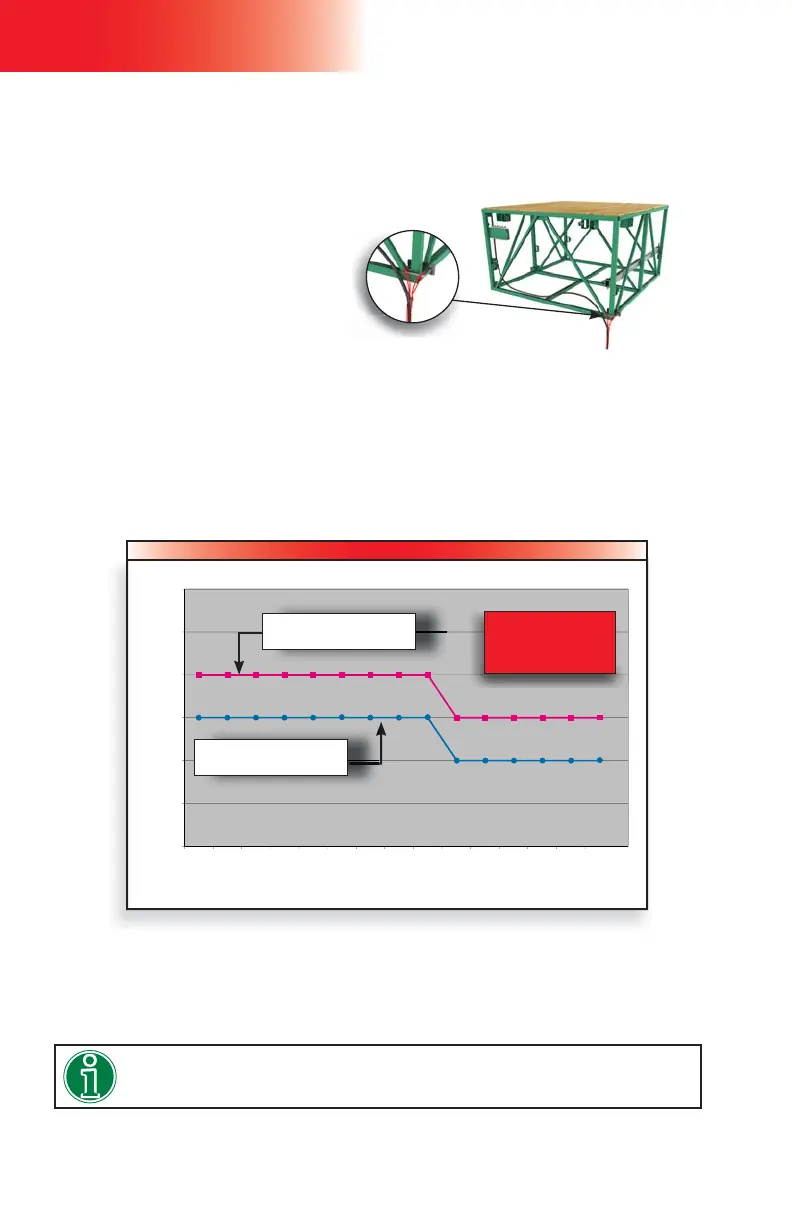

4- Run the power cable through the fi rst
bridge of the setup. The cable must
clear the base completely.
5- Check the hydraulic oil level to make sure it is in the
FULL range on the dipstick. If
necessary, remove the left plastic hood next to the control panel (fi g. 4.12, p. 71)
and replenish with hydraulic oil. It is important to use a hydraulic oil recommended by
Hydro Mobile.
6- For a confi guration using an F300 unit model, perform steps 1 through 5 for each motor.
7- If the motorized unit is used in cold weather, it is recommended to install and use the
optional hydraulic oil heater/recirculator. For instructions on the installation and use of
the optional hydraulic oil heater/recirculator, refer to p. 129 of the Accessories section.
NOTE
If the motorized unit is used in cold weather, it is recommended to install and
use the optional hydraulic oil heater/recirculator.
Startup preparation instructions (cont'd)
feet
meters
POWER CABLE SELECTION CHART
Cable size
(AWG, 4 conductors)
Cable size for motorized unit
running at 600V/3ph/60Hz
Cable size for motorized unit
running at 480V/3ph/60Hz
Length of cable between power source and maximum working height
Contact a certifi ed
electrician for the use
of a cable longer than
800' (244 m)
