Setup and Confi gurations
Splitting a motorized unit (applicable to model F300 only)
Removal of the trolley link
1- Make sure that the platform has been installed following the installation guidelines
starting on p. 17 of the Motorized Unit section, and that it can be operated safely.
2- Raise the motorized unit above base level by 2' to 3' (0,6 m to 0,9 m).

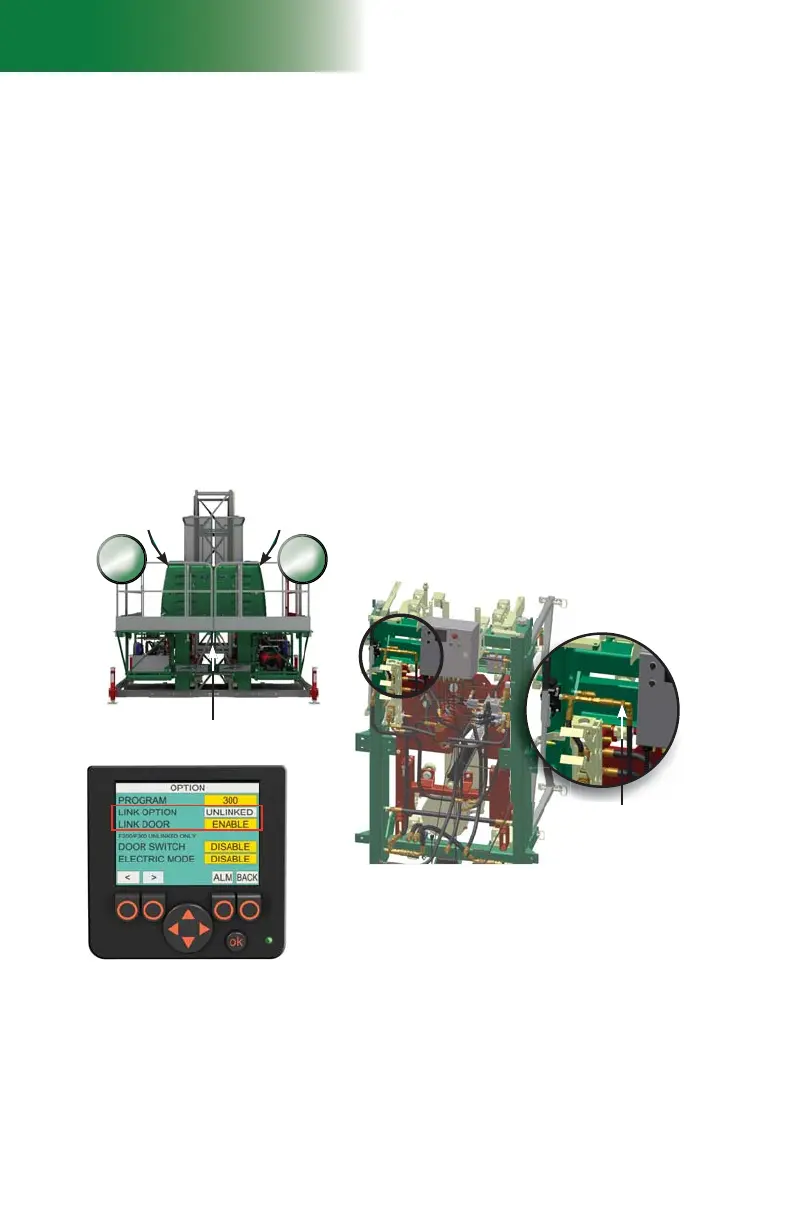

3- Remove the plastic hoods on either side of the mast (fi g. 1.40).
4- Disconnect both ends of the communication cable between the two control panels.
Store the cable properly.
5- Disconnect the quick connect hose (used for an emergency descent) (see fi g. 1.42).
Protect the end of the hose and tie it to the trolley link.
The following steps must be performed by a qualifi ed erector/dismantler. For more
information about the defi nition of a qualifi ed erector/dismantler, refer to p. 7 of the
Performance and Safety section.
Only model F300 of the F2 Series motorized units can be used in an unlinked mode. The
trolley link can be removed only once all required mast tie levels have been completely
installed to the top of the work, following the method of installation appropriate for the
confi guration.
6- On one of the display screens, scroll to the confi guration options menu (fi g. 1.43). Select
"
UNLINKED" in the LINK OPTION box and the "ENABLE" option in the LINK DOOR box.
7- Repeat step 6 on the other display screen.
8- Close both link bridge doors.
Location of the
trolley link
Plastic hoodPlastic hood
Location of the
quick connect
hose
