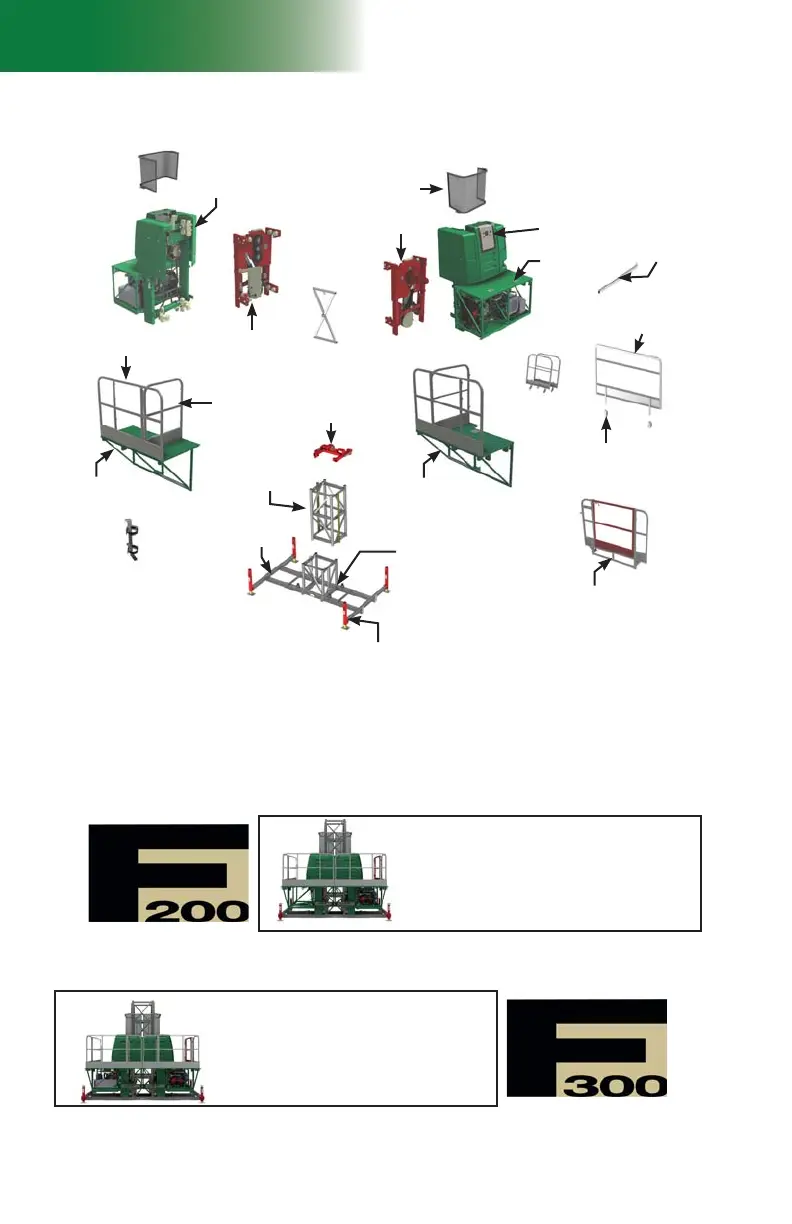

fi g. 1.1
1 - M U
Motorized Unit Overview
The mast confi guration represented in the above illustration is for informational purposes only and must not be
reproduced without appropriate cribbing under the base. Models F200 and F300 of the Hydro Mobile F2 Series
motorized units come equipped with the components shown in fi g. 1.1, with features specifi c to each model,
as described below.
Note: Items depicted in illustrations may diff er from actual products.
F200 model basic features
• Mast with two racks
• One power pack
• Two power trains
• Up to 19' (5,8 m)/min climbing speed
• Capacity of up to 9000 lb (4082 kg) at 50' (15,2 m)
for a single unit installation
• Linked confi guration only
F300 model basic features
• Mast with two racks
• Two power packs
• Two power trains
• Up to 38' (11,6 m)/min climbing speed
• Capacity of up to 9000 lb (4082 kg) at 50’ (15,2 m)
for a single unit installation
• Linked or unlinked confi guration
Mast section *
Power train
Power train
Control panel
and engine
controls
Link bridge Link bridge
Adjustable jack
Base
(including
welded bottom
mast section)
Trolley link
Main
trolley
Link bridge
guardrail
Mast head
* Only one full mast section shipped with each motorized unit
Base extension
Support for fi re
extinguisher
Link bridge
door
63" (1,6 m)
outrigger
Guardrail
adapter
60" (1,5 m)
guardrail
27" (69 cm)
guardrails
Door guardrail
Mast guard
Main
frame
