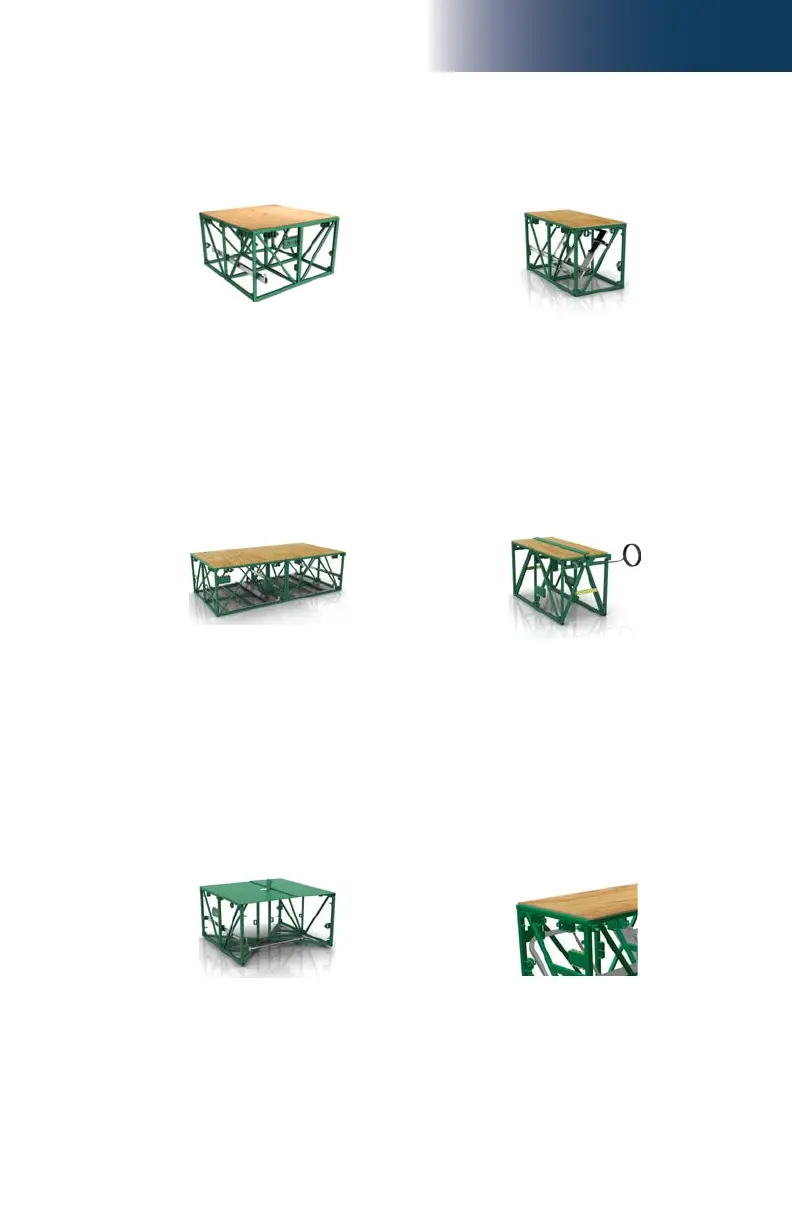

Hydro Mobile F200 - Bridge Types

51
fi g. 3.5 fi g. 3.6
fi g. 3.10
fi g. 3.7 fi g. 3.8
fi g. 3.9
3 - B
Dimensions
30 3/8" x 62" x 35 13/16"
(77,2 cm x 158 cm x 91 cm)
Weight
(includes weight of
guardrail)
375 lb (170 kg)
Guardrail 1x twin mast adapter guardrail – 45 lb (20 kg)
Accessories Inclinometer
Bolt and nut set 12x 5/8" x 5 1/2" long (GR8)
Twin mast adapter
Dimensions
60" x 62" x 35 13/16"
(152,4 cm x 158 cm x 91 cm)
Weight
(includes weight of
guardrail)
390 lb (177 kg)
Guardrail 1x 60" (1,5 m) – 58 lb (26 kg)
Outrigger
1x 2 1/2" x 1 1/2" x 1/8" x 63" long
(6,4 cm x 3,8 cm x 0,3 cm x 160 cm)
Bolt and nut set 6x 5/8" x 5 1/2" long (GR8)
Dimensions
30 1/2" x 62" x 35 13/16"
(77,4 cm x 158 cm x 91 cm)
Weight
(includes weight of
guardrail)
290 lb (132 kg)
Guardrail 1x 30" (76 cm) – 40 lb (18 kg)
Outrigger
1x 2 1/2" x 1 1/2" x 1/8" x 63" long
(6,4 cm x 3,8 cm x 0,3 cm x 160 cm)
Bolt and nut set 6x 5/8" x 5 1/2" long (GR8)
5' (1,5 m) bridge 30" (76 cm) bridge
Bridges
Bridge Types
10' (3 m) bridge
Dimensions
120" x 62" x 35 13/16"
(305 cm x 158 cm x 91 cm)
Weight
(includes weight of
guardrail)
720 lb (327 kg)
Guardrail 2x 60" (1,5 m) – 58 lb (26 kg)
Outrigger
2x 2 1/2" x 1 1/2" x 1/8" x 63" long
(6,4 cm x 3,8 cm x 0,3 cm x 160 cm)
Bolt and nut set 6x 5/8" x 5 1/2" long (GR8)
Dimensions
67 7/8" x 62" x 39 1/2"
(172,4 cm x 158 cm x 100,3 cm)
Weight
(includes weight of
guardrail)
800 lb (363 kg)
Guardrail 1x swivel bridge guardrail – 107 lb (49 kg)
Bolt and nut set 6x 5/8" x 5 1/2" long (
GR8)
Swivel bridge Multi-purpose bridge
Dimensions
33 1/4" x 62" x 35 13/16"
(84,5 cm x 158 cm x 91 cm)
Weight
(includes weight of
guardrail)
330 lb (170 kg)
Guardrail 1x 33" (81 cm) – 41 lb (19 kg)
Outrigger
1x 2 1/2" x 1 1/2" x 1/8" x 63" long
(6,4 cm x 3,8 cm x 0,3 cm x 160 cm)
Bolt and nut sets
4x 5/8" x 4 1/2" long (GR8)
6x 5/8" x 5 1/2" long (GR8)
