Transport and Storage

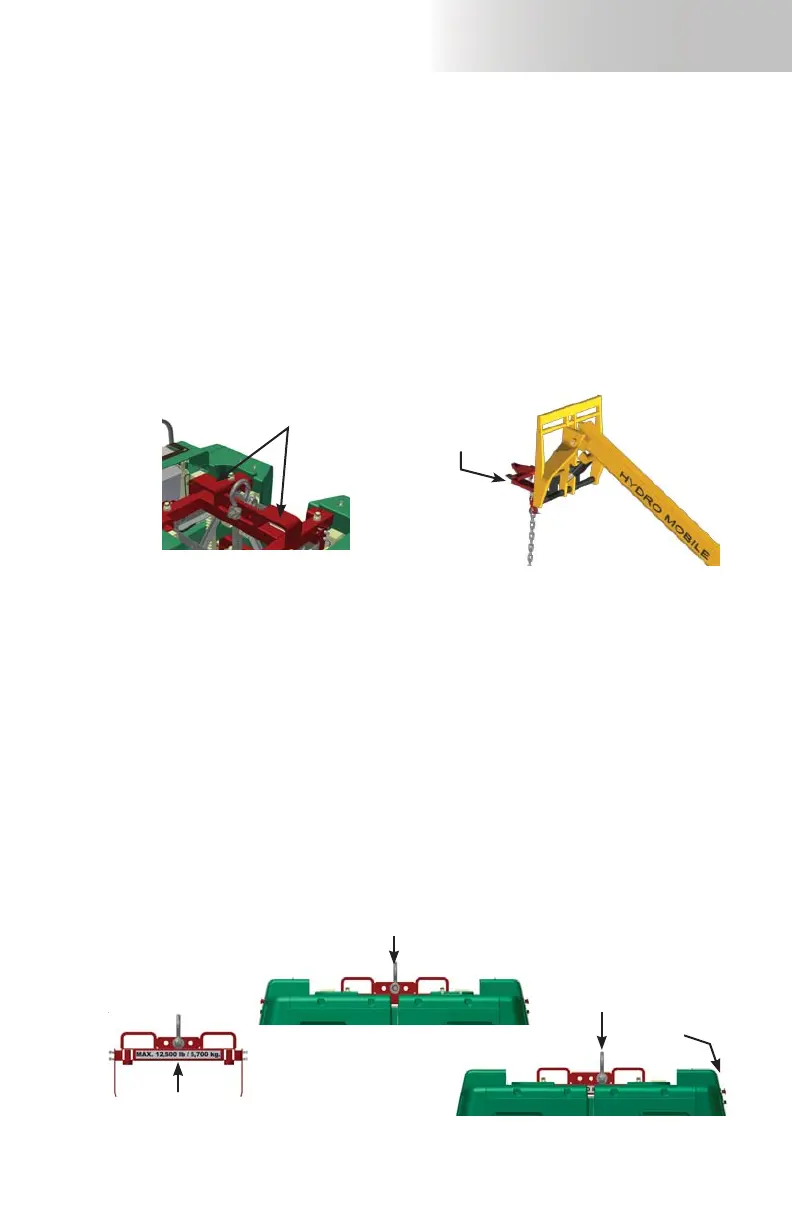

Lifting and moving of motorized unit or a setup
Lifting by the shackle on the mast head
1- Prepare the motorized unit as described in the preparation instructions on p. 130.
2- Make sure the shackle is positioned properly on the mast head and secure.
On an F300 motorized unit model, the shackle must be positioned in the center hole,
as shown in fi g. 9.8.
On an F200 motorized unit model, the shackle must be positioned in the hole located
on the same side as the control panel, as shown in fi g. 9.9.
This method can be used to lift and transport a motorized unit or a cantilever setup. The
maximum width of setup that can be lifted and transported is 50' (15,2 m) for a gas-
powered motorized unit and 30' (9 m) for an electrical motorized unit. In all cases, the
maximum height of mast for the installation is 18’ (5,5 m). Any cantilever setup being lifted
and transported must be of equal length on either side of the mast.
The lifting capacity of the mast head must be observed at all times (see fi g. 9.7).
The lift and relocation of an F2 Series motorized unit or setup must be carried out with
extreme care, using proper certifi ed lifting equipment.
It is mandatory to refer to and comply with the capacities and limitations of the lifting
device as specifi ed by the manufacturer. It is important to consider the total weight that
must be lifted. Refer to p. 14 of the Motorized Unit section for the weight of a motorized
unit and other components.
Lifting by the forklift pockets on the mast head
1- Prepare the motorized unit as described in the preparation instructions on p. 130.
2- Insert the forks in the forklift pockets located on the mast head (fi g. 9.5).
3- Lift and transport the motorized unit over to its destination area.
Forklift pockets
Control panel
Mast head lifting capacity
sticker
Center hole position for F300 unit model
Hole located closest
to the control panel for
F200 unit model
Appropriate
forklift
attachment to
secure chains
